Crane Service Truck

Crane Service Truck

Radio remote controlled Service Cranes greatly increase job site
safety by providing the operator the safest vantage point for tank
delivery. One-man control eliminates a second person instructing
the operator where to position the tank. Operator has freedom of
movement around entire work site while setting tank precisely into
position.

Request More Information

Overview

Model # ASKR

Developed for crane and service truck applications requiring up to 12 control functions. Modular components allow for easy installation with custom wire harness supplied. Transmitter and receiver units operate with unique 32 bit ID codes eliminating accidental operation. Parts replacement is simplified with quick connect plugs and simple ‘learn’ button to link handheld and receiver. System includes model ASKR rechargeable transmitter housed in rugged polycarbonate enclosure. The transmitter has a low battery warning indicator with audible alarm and 30hr continuous transmission battery, 12/24VDC charger included. Transmitter button text printed to customer specifications at time of order.

Model # FHSR

Developed for crane applications requiring interference-free, fail-safe machine control. Up to 12 wireless commands via BASE Engineering’s proprietary ‘Safe-Link’ communication protocol. Operator handheld and machine mounted transceiver continuously communicate to ensure signal validity and strength. Any loss of signal results in all active functions automatically shutting down and failing safe. System incorporates a secure frequency-hopping, spread-spectrum radio link that greatly reduces outside electrical or RF interference.

Model # DSST

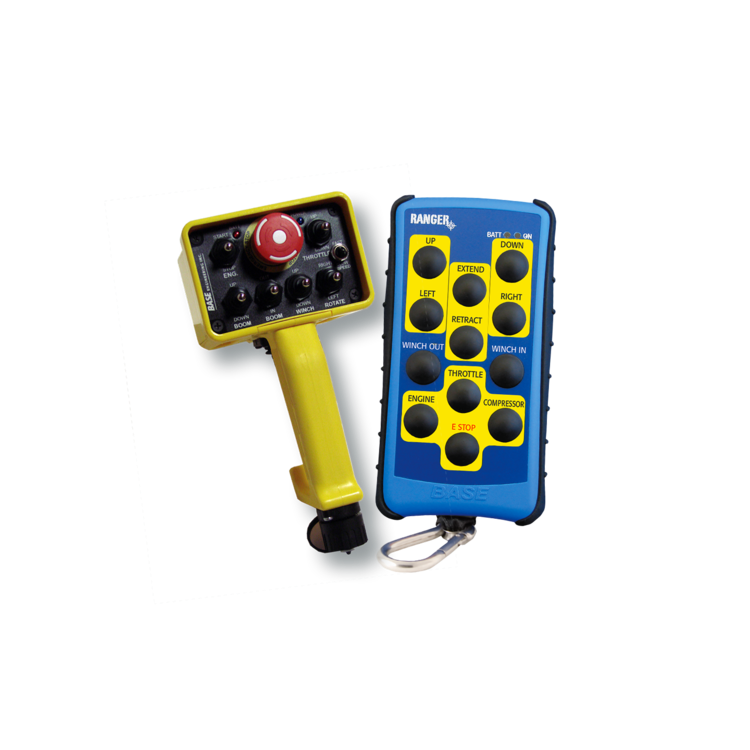

Developed for proportional hydraulic crane applications requiring up to 12 radio remote control functions. Toggle switch controls with trigger provides variable speed control of hydraulic pump solenoids. Split signal capability allows combined boom movements including ‘up and sideways’ and ‘extend and winch down’. Toggle switch controls must be activated first before trigger switch and speed control will work. Weatherproof receiver can be crane mounted and interfaces easily to crane electrical system with OEM style plug-in connector.

Model # ASKW

Allows up to 8 control functions. Two ‘AA’ batteries provide 300 hours of continuous use. Transmitter and receiver units operate on 56 bit digital code eliminating accidental operation. Parts replacement is simplified with quick connect plugs and simple ‘learn’ button to link handheld and receiver. System includes model ASKW transmitter housed in rugged aluminum enclosure. Transmitter has low battery warning indicator and button text is printed to customer specifications at time of order.

Features

Handheld Transmitter

Handheld transmitters are available with up to 12 crane control buttons as specified by customer
Rechargeable transmitter delivers 30 hrs of continuous use between charges (charger supplied)
Optional ‘Enable’ button requires two deliberate steps before signal is sent (Enable plus command signal)

Equipment Mounted Receiver/Controller

Up to 12 pre-programmed high-side outputs available
Outputs can be selectively interlocked to other operations for safety reasons
Optional external antenna to extend range
Interface to OEM crane controls can be simplified with factory installed, direct-plug connectors or through J1939 CAN bus communication (other protocols available)
Modular components and external set-up button allow for easy installation and field replacement

Specifications

Transmitter Specifications

Frequency of Operation	902-928MHz FHSS (433.92 ASK and 2.4GHz DSS available)
Transmitter Power	100mW
Method of Transmission	56 bit DES encryption key
Antenna	Internal ‘on card’ PCB mount (no visible antennas to damage)
Normal Range	500 feet (up to 1000ft available with external antenna on receiver)
Radio Approval
Construction	Rugged weatherproof polymer enclosure
Temperature Specifications	Minus 20 F to 185 F
Battery Life	30 hours continuous \| audible low battery warning \| flashing low battery indicator
Battery Type	Rechargeable Lithium Ion included with 12/24VDC charger (2 ‘AA’ batteries for ASKW)
ROHS Lead-Free Compliant	Yes

Reciever Specifications

Frequency of Operation	902-928MHz FHSS (433.92 ASK and 2.4GHz DSS available)
Power Supply	12/24VDC (Optional 120VAC systems available)
Current Load	Up to 4 Amps @ 12VDC per channel or 8 Amps DC per system total
Construction	Rugged weatherproof polycarbonate enclosure
Antenna	Internally protected and encased (optional external antenna/coax available)
Wiring Connection	Pre-wired harness to meet OEM requirements, quick connect fittings supplied
Programmable Modes	Up to 12 programmable channels including Latched, Momentary, Enable and Interlock modes (custom OEM programming available)
CAN bus Communication	Optional J1939 interface to OEM machine network
Total System Weight	2lbs
ROHS Lead-Free Compliant	Yes
