Deadman Series

Developed specifically for industrial applications requiring positive operator-to-machine contact.

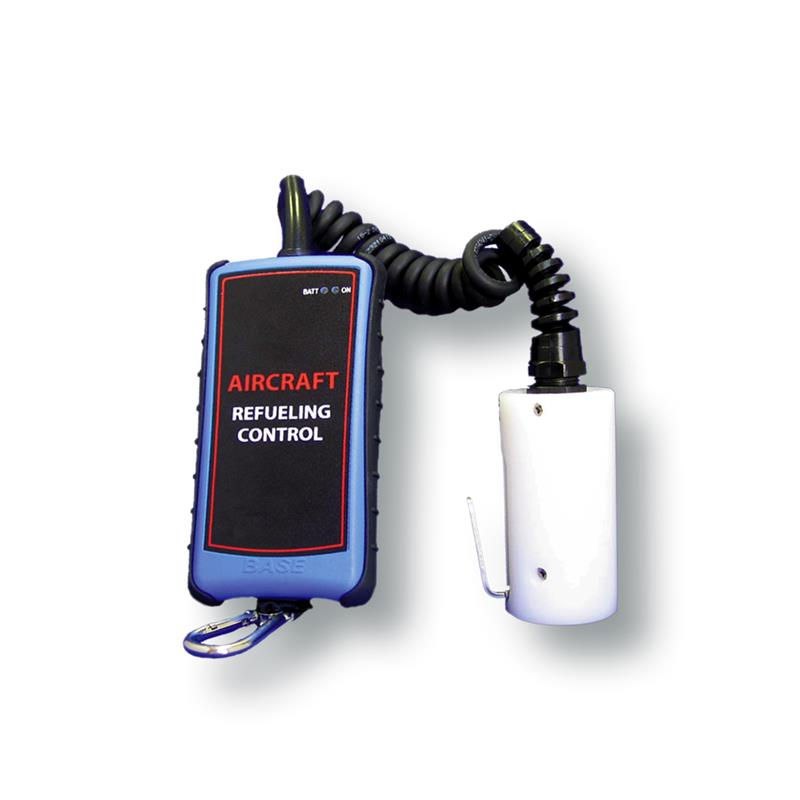

A wireless trigger-switch is used to send RF command signal to the pump. Operator is unencumbered by cable and wires normally used in ‘deadman’ fueling operation. The system incorporates a secure frequency hopping, spread-spectrum radio link that virtually immune to outside electrical or RF interference.

Request More Information

Features

Operations fail-safe (shutdown) with any loss of signal from the transmitter.
Rechargeable transmitter delivers 30 hours of continuous use between charges (12/24VDC charger supplied).
‘Safety Timer’ software available to limit switch closure duration prior to automatic shut-off. This feature requires periodic trigger pulse by operator to main receiver ‘on’ condition.
Up to 4 other command functions available per customer requirements
Modular quick-connect components allow for easy installation and field service
Pre-wired solenoids are available for Pneumatic, Hydraulic, or Hose Reel control interface.

Specifications

Handheld Transmitter Specifications

Frequency of Operation	902-928MHz FHSS (433.92 and 2.4 GHz available)
Transmitter Power	100mW
Method of Transmission	56 bit DES encryption key
Construction	Rugged weather-proof polymer enclosure
Antenna	Internal ‘on card’ PCB mount (no visible antennas to damage)
Normal Range	500ft. (higher power available)
Temperature Specification	Minus 20F to 185F
Battery Life	30 hours of continuous use with audible low battery warning/flashing indicator
Battery Type	Rechargeable lithium ion included with 12/24V DC charger
Radio Approval
ROHS Lead-Free Compliant	Yes

Reciever Specifications

Reciever Specifications	12/24V DC (Optional 120V AC systems available)
Construction	Rugged weather-proof polymer enclosure
Antenna	Internally protected and encased (optional external antenna/coax available)
Current Load	Up to 4 Amps per channel or 10 Amps total
Wiring Connections	Pre-wired to meet OEM requirements, quick connect fittings supplied
Programming Modes	Up to 12 programmable channels including: Latched, Momentary, Safety Latched, and *SAFETY TIMER programming modes (custom programming available)
Serial Connection	Optional CANbus interface available
ROHS Lead-Free Compliant	Yes
