Driver Authorization System

Vacuum-Jacketed Piping, Hoses & Accessories

Depending on the customer’s application, the Driver Authorization
System (DAS) protects vehicles and machinery from unauthorized
engine start or movement. Any attempt to tamper with, disconnect,
or damage the system results in the shutdown activation.

Request More Information

The DAS system is disarmed by entering a three to nine digit ID code into the keypad. This code is selected by the truck owner and is programmed into the unit using a ‘master code’ assigned to the truck owner. Entry of a master code is required to change the driver’s authorization code. A typical organization will provide these master codes to key management as required. Each level of master code erases the ID code directly below it and sets the device into a ‘learning state’ where it waits for a new code to be entered.

If an incorrect ID code is entered more than five times, the system will automatically ‘lock out’ for ten minutes before allowing additional code entry. LED indicators show red for system armed, green for system disarmed, flashing red for auto shutdown, flashing green for changing ID codes, and alternating green and red flashing for system lockout due to multiple incorrect code entries.

DAS1000 Systems available to:

Prevent truck engine start
Allow the engine to run, but prevent vehicle movement by stalling the engine if DAS not disarmed prior to releasing parking brake
Automatically armed by truck parking brake application
Also available for tractor-trailers with dual parking brakes

System Includes:

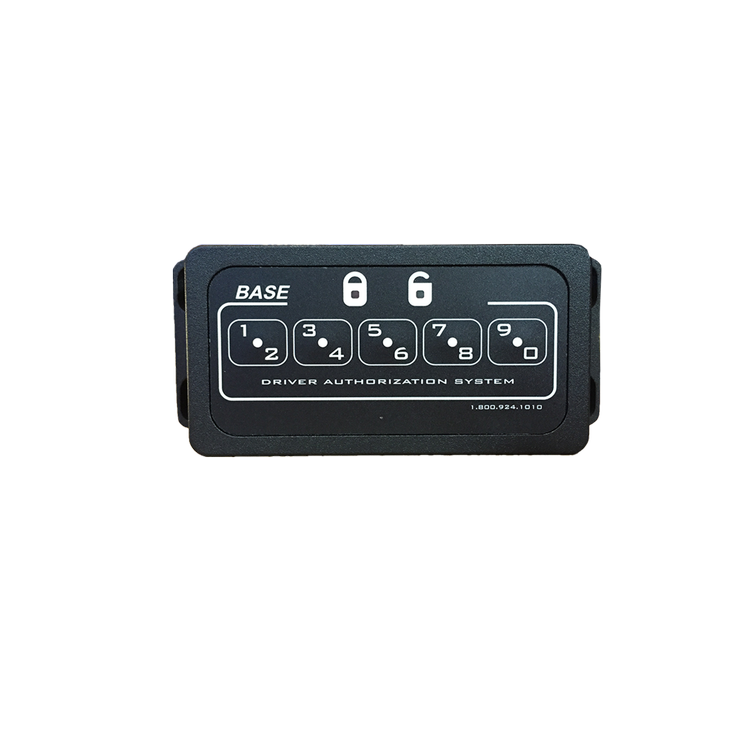

Keypad Unit with hidden enclosure screws
Sealed parking brake low pressure switch with DOT quick connect T fitting
Sealed engine kill relay
Installation guide
Components are pre-wired, quick connect electrical, air line fittings supplied

Specifications

DAS1000 Technical Specifications

System Type	Low-powered microcomputer controlled ignition lock-out system
Construction	Sealed cast aluminum enclosure, stainless mountin g hardware
Installation	30 minute ‘Plug and Play’ components
Power Connections	12V and Ground
System Activation	Air switch park brake interlock
Lock-out Method	Truck engine kill with park brake release
Keypad Location	Compact unit can be installed anywhere for convenient day to day use
Operator Set-Up	Programmable personal authorization code (3-9 digits)
Indicator Lights	RED armed indicator and Green disarmed indicator
