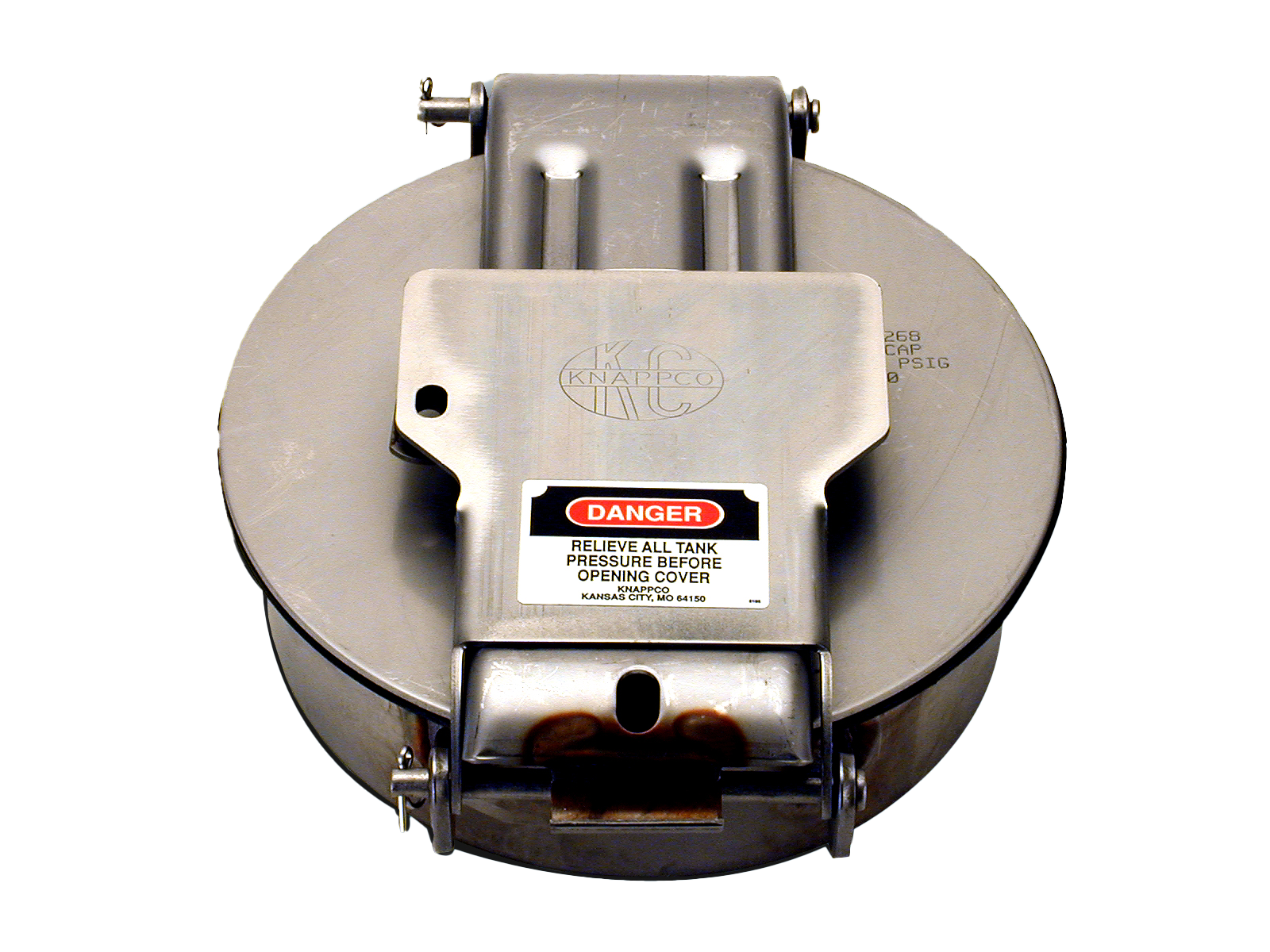

LJ 10" Pressure Relieving Fill Covers
The LJ 10" is a Pressure Relieving Fill Cover unit. The spring loaded fill cap is designed to eliminate flutter during emergency pressure release and to provide a positive seal under normal operating conditions. The LJ cover is equipped with a 3" high weld ring to provide a low profile. This unit is available in either steel or stainless steel material.
Features & Benefits
- Spring-loaded fill cap provides positive seal under normal operation
- Eliminates flutter during emergency pressure release
- Additional venting capacity 191,258 CFH at 5psi
Part Numbers
| Part Number | Description |
| LJ1110 | 10" Fill Cover, Pressure, 304SS, Buna-N Gasket |
| LJ2210 | 10" Fill Cover, Pressure, Steel, Buna-N Gasket |
| LJ2211 | 10" Fill Cover, Pressure, Steel, Buna-N Gasket, PV Vent |
| LJ4340 | 10" Fill Cover, Pressure, Alum WR, 304SS, White Neoprene Gasket |
Ordering Matrix
| Model | Contact Parts | Weld Ring Material | Gasket Material | Vent Type |
| LJ | 1 - SS304 / SS304 | 0 - None | 1 - Buna-N | 0 - No Vent |
| 2 - Steel / Steel | 1 - SS304 | 4 - White Neoprene | 1 - NV4000 | |
| 4 - SS304 / Alum | 2 - Steel | |||
| 3 - Aluminum |
** LJ1110 - 10" Pressure Relieving Fill Cover Assembly, SS304 Parts, Buna-N Gasket, No Vent
-
LJ Series Data Sheet
Features & Benefits
- Spring-loaded fill cap provides positive seal under normal operation
- Eliminates flutter during emergency pressure release
- Additional venting capacity 191,258 CFH at 5psi
Part Numbers
| Part Number | Description |
| LJ1110 | 10" Fill Cover, Pressure, 304SS, Buna-N Gasket |
| LJ2210 | 10" Fill Cover, Pressure, Steel, Buna-N Gasket |
| LJ2211 | 10" Fill Cover, Pressure, Steel, Buna-N Gasket, PV Vent |
| LJ4340 | 10" Fill Cover, Pressure, Alum WR, 304SS, White Neoprene Gasket |
Ordering Matrix
| Model | Contact Parts | Weld Ring Material | Gasket Material | Vent Type |
| LJ | 1 - SS304 / SS304 | 0 - None | 1 - Buna-N | 0 - No Vent |
| 2 - Steel / Steel | 1 - SS304 | 4 - White Neoprene | 1 - NV4000 | |
| 4 - SS304 / Alum | 2 - Steel | |||
| 3 - Aluminum |
** LJ1110 - 10" Pressure Relieving Fill Cover Assembly, SS304 Parts, Buna-N Gasket, No Vent
-
LJ Series Data Sheet
