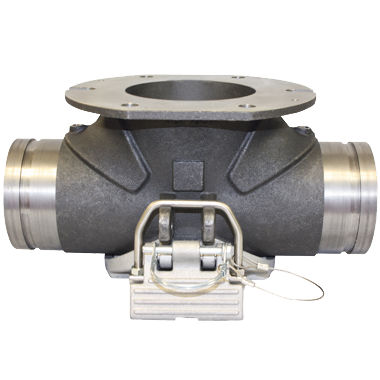

Bottom Drop Hopper Tee

Bottom Drop Tee that is heavy-duty, abrasion resistant and easy to open and close. Manufactured to withstand demanding transportation applications and built to haul those highly abrasive materials.

Request More Information

Features & Benefits

Simple to use - Patent pending latch mechanism provides easy opening and closing while still allowing maximum product flow through the bottom opening during a gravity drop or clean out.
Extended Wear - Additional pads in higher wear factor areas to significantly improve longevity. Reversible mounting and wear indicator allow for maximum product utilization
Technology Driven Analysis - Innovative engineering using Flow Analysis software to realize optimal product flow

Part Numbers and Drawings

TR-510PP 5" Iron Bottom Drop Tee, Plain-to-Plain
TR510PP-PC 5" Iron Bottom Drop Tee, Plain-to-Plain Powder Coated
TR-510GG 5" Iron Bottom Drop Tee, Groove-to-Groove
TR-510GG-PC 5" Iron Bottom Drop Tee, Groove-to-Groove Powder Coated
TR-510GP 5" Iron Bottom Drop Tee, Groove-to-Plain
TR-510GP-PC 5" Iron Bottom Drop Tee, Groove-to-Plain Powder Coated

Brochures, Parts Breakdown, Installation Manuals

Bottom Drop Hopper Tee Brochure

Download PDF

Read in browser

Videos

Animation: DryBulk Process

Features

Features & Benefits

Simple to use - Patent pending latch mechanism provides easy opening and closing while still allowing maximum product flow through the bottom opening during a gravity drop or clean out.
Extended Wear - Additional pads in higher wear factor areas to significantly improve longevity. Reversible mounting and wear indicator allow for maximum product utilization
Technology Driven Analysis - Innovative engineering using Flow Analysis software to realize optimal product flow

Model Numbers
