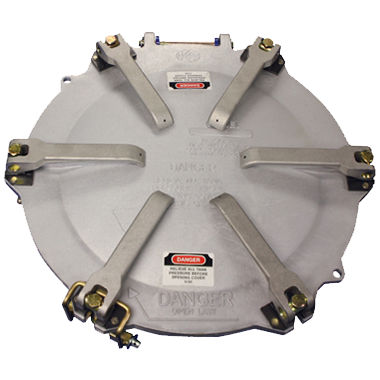

LM Manholes
Full opening pressure manhole for rail car/cargo tank/ industrial/intermodal/bulk containers (IBC) — up to 30 PSI
Applications: Salt, cement, dry food products, sand chemicals, crude oil and other general applications with a working pressure less than or equal to 30 PSI.
Features & Benefits
- 6 quick-opening adjustable cam levers
- Open rib cover design provides strength without product hangup
- Meets MC307 and DOT-407(HM183) requirements
Part Numbers and Drawings
- LM1051 20" Aluminum Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/o Weld Rin
- LM1151 20" Aluminum Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/6" Alum. Weld Ring
- LM1061 20" Aluminum Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna N Gasket w/o Weld Ring
- LM1161 20" Aluminum Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna-N Gasket, w/6" Aluminum Weld Ring
- LM1171 20" Aluminum Manhole 6 Adjustable Cams, Nylon Wear Plates, Viton Gasket, w/6" Aluminum Weld Ring
- LM1251 20" Aluminum Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/Steel Weld Ring
- LM1261 20" Aluminum Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna N Gaskets w/Steel Weld Ring
Repair Parts
- 10869 - Cam Assembly
- 10870 - Cam Assembly w/Safety Catch
- 6832 - Nylon Wear Plate
- 9821 - Buna Gasket
- 9209 - White Neoprene Gasket
- 12233 - Viton Gasket
- 12218 - Cover with White Neoprene Gasket
- 12219 - Cover with Buna N Gasket
- 12437 - Aluminum Cam Assembly, w/o Safety Catch
- 12438 - Aluminum Cam Assembly, w/Safety Catch
Old Style Cover Replacement Parts
- 3519 - Cam Assembly
- 3395 - Buna N Gasket
- 3523 - White Neoprene Gasket
-
LM+ Dry Bulk Manhole
-
LM+ Cam Lever Adjustment Procedure
-
LM Manhole Gasket Installation Manual
-
LM Opening Procedure Manual
-
LM Weld Ring Installation Manual
Animation: DryBulk Process
