Pipe Couplers

We have a coupler that is engineered to meet your needs. A variety of styles include the Bolt Together, Easy Opening and a Durable LST coupler.

We have developed a solution for your most common problem – coupler freeze up. The solution is oil impregnated bronze bushings at critical hinge points. Another added solution from Civacon to solve your common problems.

Request More Information

Features & Benefits

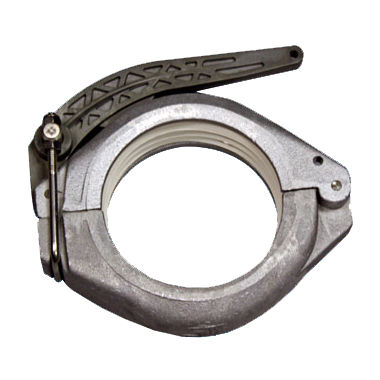

Aluminum Quick Release Coupler

Oil impregnated bronze bushings
Completely made from stainless steel and aluminum for superior corrosion resistance and light weight
With no void areas in the gasket there is no place for contamination to hide - a quick disassembly and visual inspection is all that is necessary
Most band clamps are rated at 10 psi, where Civacon couplers are rated at 50 psi

LST Coupler

Clean seal gaskets are easy to install and replace
White gaskets are special formulated for dry bulk applications where F.D.A. approval is required
Black gaskets are specially formulated for petroleum products, while red gaskets are for high temp applications up to 400 degrees Fahrenheit
With no void areas in gasket there is no place for contamination to hide - a quick disassembly and visual inspection is all that is necessary
40% lighter than comparable couplers
Stronger than standard aluminum couplers
Tougher on corrosion

Part Numbers and Drawings

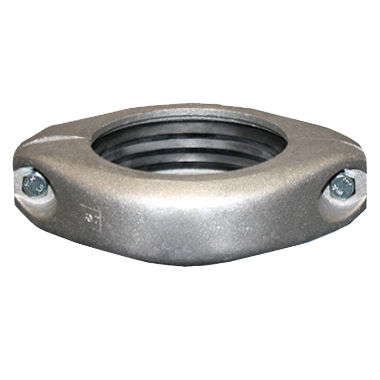

Bolt Together Coupler

432B 3” Aluminum Bolt-Together Coupler Black Nitrile Gasket
432W 3” Aluminum Bolt-Together Coupler White Neoprene Gasket
432V 3” Aluminum Bolt-Together Coupler Viton Gasket
435B 4” Aluminum Bolt-Together Coupler Black Nitrile Gasket
435W 4” Aluminum Bolt-Together Coupler White Neoprene Gasket
435V 4” Aluminum Bolt-Together Coupler Viton Gasket
634B 4” Aluminum Bolt-Together Standard Coupler Black Nitrile Gasket
634W 4” Aluminum Bolt-Together Standard Coupler White Neoprene Gasket

Aluminum Quick Release Coupler

632GGB 3” Aluminum Coupler Groove to Groove Black Nitrile Gasket
632GGW 3” Aluminum Coupler Groove to Groove White Neoprene Gasket
632GGR 3” Aluminum Coupler Groove to Groove High Temp, Gasket
632GGV 3” Aluminum Coupler Groove to Groove Viton Gasket
635GGB 4” Aluminum Coupler Groove to Groove Black Nitrile Gasket
635GGW 4” Aluminum Coupler Groove to Groove White Neoprene Gasket/li>
635GGR 4” Aluminum Coupler Groove to Groove High Temp, Gasket
637GGB 5” Aluminum Coupler Groove to Groove Black Nitrile Gasket
637GGW 5” Aluminum Coupler Groove to Groove White Neoprene Gasket
637GGR 5” Aluminum Coupler Groove to Groove High Temp, Gasket
639GGB 6” Aluminum Coupler Groove to Groove Black Nitrile Gasket
639GGW 6” Aluminum Coupler Groove to Groove White Neoprene Gasket
639GGR 6” Aluminum Coupler Groove to Groove High Temp, Gasket
635GPB 4” Aluminum Coupler Groove to Plain Black Nitrile Seat
635GPW 4” Aluminum Coupler Groove to Plain White Neoprene Gasket
635GPR 4” Aluminum Coupler Groove to Plain High Temp. Gasket
635PPB 4” Aluminum Coupler Plain to Plain Black Nitrile Gasket
635PPW 4” Aluminum Coupler Plain to Plain White Neoprene Gasket

LST Couplers

LST735GGW 4”Plastic Coupler w/Stainless Steel Hardware Groove to Groove
LST735GPW 4” Plastic Coupler w/Stainless Steel Hardware Groove to Plain
LST735PPW 4” Plastic Coupler w/Stainless Steel Hardware Plain To Plain
