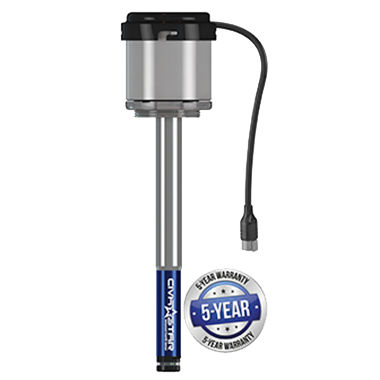

2-Wire ROMLink™ CivaStar™ Optic “Plug-N-Load” Sensor
Optic overfill sensors detect the presence of liquid at a preset level. The Civacon CivaStar™ ROMLink Sensor combines all the enhanced design features and more with the “Plug-N-Load” convenience of our ROMLink System.
Features & Benefits
- Probe and wiring diagnostics with built-in LED indicators
- Increases uptime
- Accurate and reliable liquid detection
- Aluminum shaft, silicone O-ring seals, and plated steel locking nut for extreme durability
- CivaStar probes are easy to install and can replace existing probes
- Probes install without the need to reset probe heights
- 5-year warranty
- Operating Temperature -40° F (-40° C) to 158° F (70° C)
| Feature | Benefit | CivaStar | Other |
| Detects the presence of a liquid | Provides overfill protection | Yes | Yes |
| 5-year warranty | Peace of mind | Yes | Yes |
| LED Diagnostics | Eliminates time-consuming and expensive guesswork | Yes | No |
| Tool-less cap | Quick removal and protects against corrosion | Yes | No |
| Tool-less spring adjustment | Set length once with torsion spring | Yes | No |
| Sensor replacement | Rapidly swap sensor without removing tube | Yes | No |
Specifications
- Available in 2-wire configuration
- Cap O-ring Seal - Silicone
- Locking Nut - Plated Steel
- Viscosity - Less than 1000 SSU Prism
- Weight 0.521 kg (1.15 lbs.)
- Operating Temperature 40°C (-40°F) to 70°C (158°F)
- Special length sensors are available upon request
Upgrading to the CivaStar ROMLink requires the purchase of the New CivaStar Probe with Housing
The CivaStar Probe is not a direct replacement when upgrading from the current ROMLink Probe.
CivaStar ROMLink Probe with Housing Part Numbers
| CivaStar ROMLink Sensor Part# | Old-Style ROMLink Sensor Part# |
|---|---|
| 5610RL-7 | 1554-007B |
| 5610RL-12 | 1554-0012B |
| 5610RL-14 | 1554-0014B |
| 5610RL-18 | 1554-0018B |
CivaStar ROMLink Replacement Probe Part Numbers
| CivaStar ROMLink Sensor Part# |
|---|
| 5650RL-7 |
| 5650RL-12 |
| 5650RL-14 |
| 5650RL-18 |
CivaStar ROMLink Probe and Cap Replacement Part Numbers
| CivaStar ROMLink Cap w/ Probe Part#5650RL-7 |
| 5356-2W-7 |
| 5356-2W-12 |
| 5356-2W-14 |
| 5356-2W-18 |
** CivaStar ROMLink Replacement Cap Part# 5356-2W. This cap will only work with the CivaStar ROMLink Probe Assembly.
-
CivaStar ROMLink Data Sheet
-
CivaStar Conversion Chart
Features & Benefits
- Probe and wiring diagnostics with built-in LED indicators
- Increases uptime
- Accurate and reliable liquid detection
- Aluminum shaft, silicone O-ring seals, and plated steel locking nut for extreme durability
- CivaStar probes are easy to install and can replace existing probes
- Probes install without the need to reset probe heights
- 5-year warranty
- Operating Temperature -40° F (-40° C) to 158° F (70° C)
| Feature | Benefit | CivaStar | Other |
| Detects the presence of a liquid | Provides overfill protection | Yes | Yes |
| 5-year warranty | Peace of mind | Yes | Yes |
| LED Diagnostics | Eliminates time-consuming and expensive guesswork | Yes | No |
| Tool-less cap | Quick removal and protects against corrosion | Yes | No |
| Tool-less spring adjustment | Set length once with torsion spring | Yes | No |
| Sensor replacement | Rapidly swap sensor without removing tube | Yes | No |
Specifications
- Available in 2-wire configuration
- Cap O-ring Seal - Silicone
- Locking Nut - Plated Steel
- Viscosity - Less than 1000 SSU Prism
- Weight 0.521 kg (1.15 lbs.)
- Operating Temperature 40°C (-40°F) to 70°C (158°F)
- Special length sensors are available upon request
Upgrading to the CivaStar ROMLink requires the purchase of the New CivaStar Probe with Housing
The CivaStar Probe is not a direct replacement when upgrading from the current ROMLink Probe.
CivaStar ROMLink Probe with Housing Part Numbers
| CivaStar ROMLink Sensor Part# | Old-Style ROMLink Sensor Part# |
|---|---|
| 5610RL-7 | 1554-007B |
| 5610RL-12 | 1554-0012B |
| 5610RL-14 | 1554-0014B |
| 5610RL-18 | 1554-0018B |
CivaStar ROMLink Replacement Probe Part Numbers
| CivaStar ROMLink Sensor Part# |
|---|
| 5650RL-7 |
| 5650RL-12 |
| 5650RL-14 |
| 5650RL-18 |
CivaStar ROMLink Probe and Cap Replacement Part Numbers
| CivaStar ROMLink Cap w/ Probe Part#5650RL-7 |
| 5356-2W-7 |
| 5356-2W-12 |
| 5356-2W-14 |
| 5356-2W-18 |
** CivaStar ROMLink Replacement Cap Part# 5356-2W. This cap will only work with the CivaStar ROMLink Probe Assembly.
-
CivaStar ROMLink Data Sheet
-
CivaStar Conversion Chart
