5 Wire Optic Overfill System

The Civacon 5 Wire Optic Overfill System is a truck mounted monitoring and control system which will enable a tank trailer to load at optic, thermistor or float petroleum loading racks, while using only optic sensors. If all of the optic sensors do not detect any liquids. The monitor provides the necessary signal information to the appropriate API sockets to enable loading of the tank trailer.

Request More Information

Features & Benefits

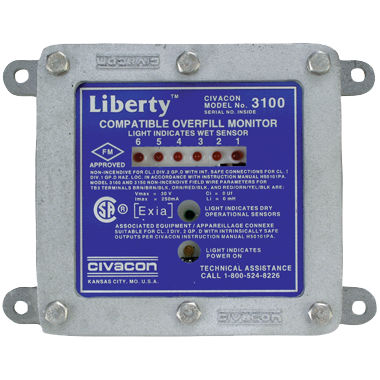

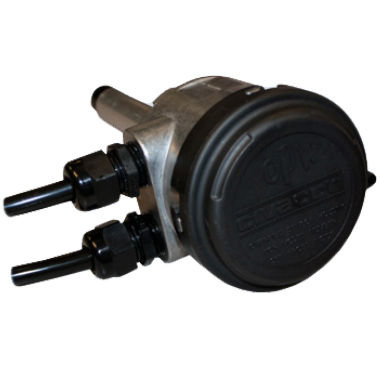

System includes: (1) Model 1110-xxxx Sensor for each compartment, (1) Model 3100-3100 overfill monitor, (1) Model 2100-2100 7 conductor cable, and (1) bag of strain reliefs and Junction Box w/In-line Fuse. NOTE: TRUCK MOUNTED SOCKETS MUST BE ORDERED SEPARATELY
5 Wire System
Diagnostics Inside the Cap
Pre-wired Plug & Load System

Part Numbers and Drawings

2003-2003 Liberty 5-Wire 3-Compartment Overfill System
2004-2004 Liberty 5-Wire 4-Compartment Overfill System

Features

Features & Benefits

System includes: (1) Model 1110-xxxx Sensor for each compartment, (1) Model 3100-3100 overfill monitor, (1) Model 2100-2100 7 conductor cable, and (1) bag of strain reliefs and Junction Box w/In-line Fuse. NOTE: TRUCK MOUNTED SOCKETS MUST BE ORDERED SEPARATELY
5 Wire System
Diagnostics Inside the Cap
Pre-wired Plug & Load System

Model numbers
