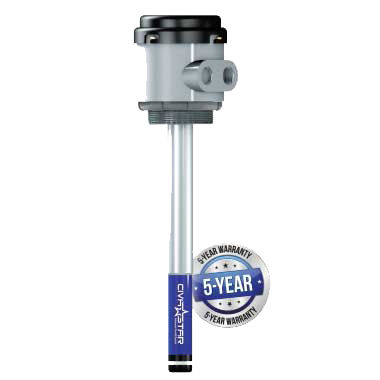

CivaStar Advanced Overfill Prevention Sensor
CivaStar is accelerating the tank truck industry light years into the future. With unique and advanced construction, CivaStar probes are highly reliable and extremely accurate. Plus, LED lights provide real-time diagnostics. CivaStar keeps your trucks on the road and delivering loads.
Features & Benefits

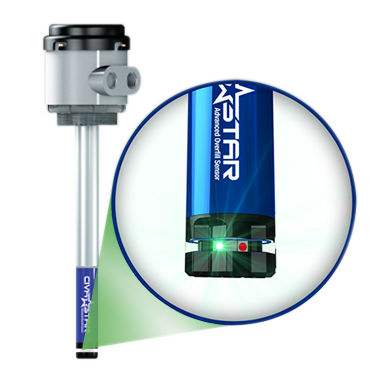

- Probe and wiring diagnostics with built-in LED indicators
- Increases uptime
- Accurate and reliable liquid detection
- Aluminum shaft, silicone O-ring seals, and plated steel locking nut for extreme durability
- CivaStar probes are easy to install and can replace existing probes
- Probes install without the need to reset probe heights
- 5-year warranty
- Operating Temperature -40° F (-40° C) to 158° F (70° C)
| Feature | Benefit | CivaStar | Other |
| Detects the presence of a liquid | Provides overfill protection | Yes | Yes |
| 5-year warranty | Peace of mind | Yes | Yes |
| LED Diagnostics | Eliminates time-consuming and expensive guesswork | Yes | No |
| Tool-less cap | Quick removal and protects against corrosion | Yes | No |
| Tool-less spring adjustment | Set length once with torsion spring | Yes | No |
| Sensor replacement | Rapidly swap sensor without removing tube | Yes | No |
Specifications
- Available in 2-wire and 5-wire
- Cap O-ring Seal - Silicone
- Locking Nut - Plated Steel
- Viscosity - Less than 1000 SSU Prism
- Snap Ring - Stainless-steel
- Weight 0.521 kg
- Operating Temperature -40°F (-40°C) to 158°F (70 °C)
- Special length sensors are available upon request
Ordering Specifications & Cross-Reference
5-Wire Probe
5-Wire Replacement Probe Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5300N-18 | 1302-0018B |
| 5300N-14 | 1302-0014B |
| 5300N-12 | 1302-0012B |
| 5300N-7 | 1302-007B |
5-Wire Probe with Housing Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5310N-18 | 1110-0018B |
| 5310N-14 | 1110-0014B |
| 5310N-12 | 1110-0012B |
| 5310N-7 | 1110-007B |
2-Wire Probe
2-Wire Gray/Gray Replacement Probe Part Numbers5-Wire Probe with Housing Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5650U-18 | 1651-0018B |
| 5650U-14 | 1651-0014B |
| 5650U-12 | 1651-0012B |
| 5650U-7 | 1651-007B |
2-Wire Red/Black Replacement Probe Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5350-18 | 1351-0018B |
| 5350-14 | 1351-0014B |
| 5350-12 | 1351-0012B |
| 5350-7 | 1351-007B |
2-Wire Black/White Replacement Probe Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5650-18 | 1651-0018B |
| 5650-14 | 1651-0014B |
| 5650-12 | 1651-0012B |
| 5650-7 | 1651-007B |
2-Wire Probes with Housing
2-Wire Gray/Gray Probe with Housing Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5610U-18 | 1551-0018B |
| 5610U-14 | 1551-0014B |
| 5610U-12 | 1551-0012B |
| 5610U-7 | 1551-007B |
2-Wire Red/Black Probe with Housing Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5610RB-18 | 1051-0018B |
| 5610RB-14 | 1051-0014B |
| 5610RB-12 | 1051-0012B |
| 5610RB-7 | 1051-007B |
2-Wire Black/White Probe with Housing Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5610-18 | 1551-0018B |
| 5610-14 | 1551-0014B |
| 5610-12 | 1551-0012B |
| 5610-7 | 1551-007B |
2-Wire Red/Black Replacement Probe Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5650U-18* | 1351-0018B |
| 5650U-14* | 1351-0014B |
| 5650U-12* | 1351-0012B |
| 5650U-7* | 1351-007B |
2-Red/Black Retain Sensor Part Numbers
| Current Sensor Part # | Old-Style Part # |
| 5002E* | 1000RB |
| 5004-RL* | 1000RLB |
* Not compatible with 3200 or 3208 Monitors
-
