Opti-Link Plug-N-Load Overfill Systems

Features & Benefits

• Opti-Link Probes
  • Digital electronics with temperature-stabilized potting
  • Dual O-ring seals for improved shaft-to-housing sealing
  • Updated housing and custom engineered non-corrosive cap design
  • No tools required for access or adjustment of sensor

• Opti-Link Sockets
  • The Opti-Link socket is API-compatible, allowing it to interface with any optic control monitor plugs

• Opti-Link Harness Kits
  • The Opti-Link Plug-N-Load™ body harness is available for single and multi-compartment trailers.
  • Harness extensions are also available for trailers with non-standard lengths

Part Numbers and Drawings

Opti-Link Probes

• 1114-007B 7" Opti-Link Top Sensor Probe w/Housing
• 1114-0012B 12" Opti-Link Top Sensor Probe w/Housing
• 1114-0018B 18" Opti-Link Top Sensor Probe w/Housing
• STK-007B 7" Replacement Stick
• STK-0012B 12" Replacement Stick
• STK-0018B 18" Replacement Stick

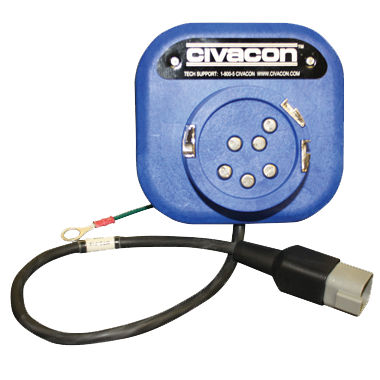

Opti-Link Socket Model Number

• 4132RL Opti-Link Optic Socket Assembly

Opti-Link Harness Kits Model Numbers

• 5M-2T Opti-Link Harness Kit 2-Comp. Trailer Contains (1)5M396, (1)5M180
• 5M-3T Opti-Link Harness Kit 3-Comp. Trailer Contains (1)5M396, (1)5M180, (1)5M141
• 5M-4T Opti-Link Harness Kit 4-Comp. Trailer Contains (1)5M396,(1)5M141,(1)5M124,(1)5M096
• 5M-5T Opti-Link Harness Kit 5-Comp. Trailer (1) 5M396, (1)5M124, (1)5M096
• 5M-2M Opti-Link Harness Kit 2-Comp. Tank Truck Contains (1)5M204, (1)5M060
• 5M-3M Opti-Link Harness Kit 3-Comp. Tank Truck Contains (1)5M204, (1)5M096, (1)5M075
• 5M-4M Opti-Link Harness Kit 4-Comp. Tank Truck Contains (1)5M204, (2)5M060, (1)5M042
• 5M-5M Opti-Link Harness Kit 5-Comp. Tank Truck Contains (1)5M204, (1)5M124, (4)5M042

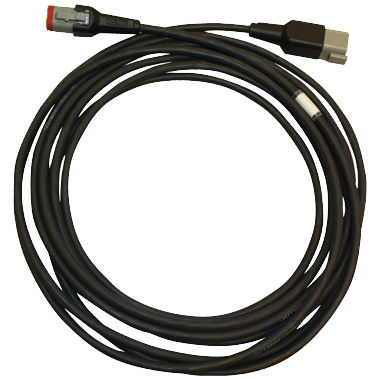

Opti-Link Cables Model Numbers

• 5M012 12" Opti-Link Top Cable (1 FT)
• 5M042 42" Opti-Link Top Cable (3.5 FT)
• 5M060 60" Opti-Link Top Cable (5 FT)
• 5M075 75" Opti-Link Top Cable (6.25 FT)
• 5M096 96" Opti-Link Top Cable (8 FT)
• 5M124 124" Opti-Link Top Cable (10.3 FT)
• 5M141 141" Opti-Link Top Cable (11.75 FT)
• 5M180 180" Opti-Link Top Cable (15 FT)
• 5M204 204" Opti-Link Top Cable (17 FT)
• 5M288 288" Opti-Link Top Cable (24 FT)
• 5M396 396" Opti-Link Top Cable (33 FT)

Opti-Link Extension Model Numbers

• CIV-L102 24" Opti-Link Extension (2 FT)
• CIV-L104 48" Opti-Link Extension (4 FT)
• CIV-L108 96" Opti-Link Extension (8 FT)
• CIV-L100 192" Opti-Link Extension (16 FT)
• CIV-L124 288" Opti-Link Extension (24 FT)
• CIV-B100 384" Opti-Link Extension (32 FT)
