Next-Gen ROMLink™ Single API Overfill Socket
Introducing the Next- Generation ROMLink™ Single Optic and Thermistor Sockets
Civacon Next-Gen ROMLink Overfill Sockets connect Optic, Thermistor and J560-type level sensors on trailer and truck tanks to their compatible monitor plugs installed at loading terminals. This overfill-detection system provides for automatic shutoff of product flow at a predetermined liquid level and warns of an overfill condition.
Features & Benefits
- ROMLink wiring system provides Plug-N-Load™ simplicity. Comes pre-wired for simple and quick installation.
- Rugged one-piece injection-molded composite connector nose
- Molded in color to match API standards, green for thermistor and blue for optic
- Wear, spark and corrosion-resistant nickel-plated zinc aluminum j-slot inserts
- Stainless-steel contacts
- Durable rubber dust cap
- Stainless-steel hardware included
Specifications
- Materials:
- Housing: Aluminum
- Connector Nose: Valox Composite
- J-Slot Inserts: Nickel-Plated Zinc Aluminum
- Contact Pins: Stainless Steel
- Dimensions: 5.75" W x 4.75" H x 3.5" D
- Weight: 2.5 lbs. (1.1 kg)
- Temperature Range: Operating Temperature
- 40°F (-40°C) to 160°F (70°C)
Product Numbers
| Product Number | Description |
|---|---|

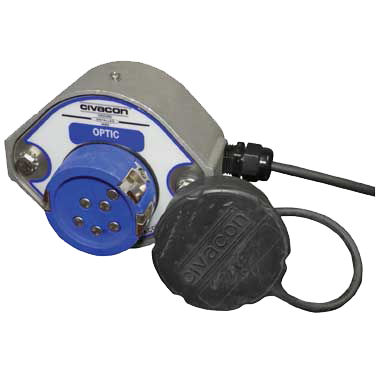

| 4132RL | ROMLink API Optic Pattern Socket, 3 J-Slots with 6 Pins (Blue), with Ground Wire |
| 4133RL | ROMLink API Optic Pattern Socket, 3 J-Slots with 6 Pins (Blue) |

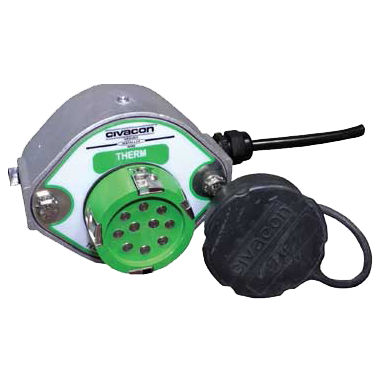

| 4432RL | ROMLink API Thermistor Pattern Socket, 4 J-Slots with 10 Pins (Green), with Ground Wire |
| 4433RL | ROMLink API Thermistor Pattern Socket, 4 J-Slots with 10 Pins (Green) |
Downloads
-
Next-Gen ROMLink™ Single API Overfill Socket Sell Sheet
