Next-Gen Single API Overfill Socket
Introducing the Next- Generation Single Optic and Thermistor Sockets
Civacon Next-Gen Overfill Sockets connect Optic, Thermistor, and J560-type level sensors on trailer and truck tanks to their compatible monitor plugs installed at loading terminals. This overfill-detection system provides for automatic shutoff of product flow at a predetermined liquid level and warns of an overfill condition.
Civacon’s Next-Gen API overfill sockets feature highly wear-resistant J-slot inserts instead of the traditional J-slot collar. The J-slot inserts are easily replaceable using just a screwdriver without the need to disconnect any wiring or enter the electronics. This means that maintenance can be done in minutes in the field, resulting in reduced downtime and a much lower maintenance cost..
Features & Benefits
- Rugged one-piece injection-molded composite connector nose
- Molded in color to match API standards, green for thermistor and blue for optic
- Wear spark and corrosion-resistant nickel-plated zinc aluminum j-slot inserts
- Stainless-steel contacts
- Durable rubber dust cap
- Stainless-steel hardware included

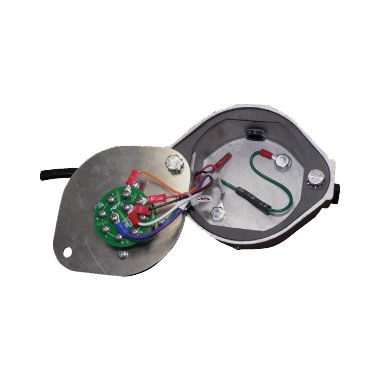

- Thermistor sockets come standard with easy wiring jumper pcb
Specifications
- Materials:
- Housing: Aluminum
- Connector Nose: Valox Composite
- J-Slot Inserts: Nickel-Plated Zinc Aluminum
- Contact Pins: Stainless Steel
- Dimensions: 5.75" W x 4.75" H x 3.5" D
- Weight: 2.5 lbs. (1.1 kg)
- Temperature Range: Operating Temperature 40°F (-40°C) to 160°F (70°C)
Product Numbers
| Product Number | Description |
|---|---|
| 4132-4132 | API Optic Pattern Socket, 3 J-Slots with 6 Pins (Blue), with Ground Wire |

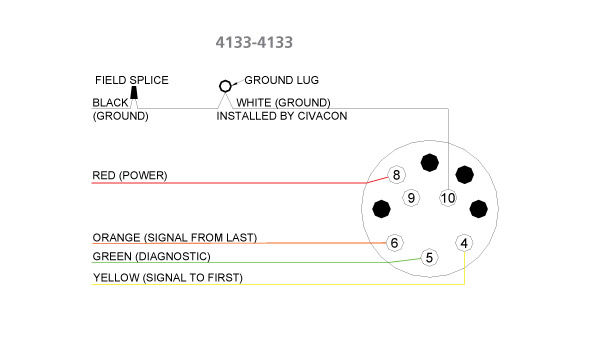

| 4133-4133 | API Optic Pattern Socket, 3 J-Slots with 6 Pins (Blue) |
| 4432-4432 | API Thermistor Pattern Socket, 4 J-Slots with 10 Pins (Green), with Ground Wire |

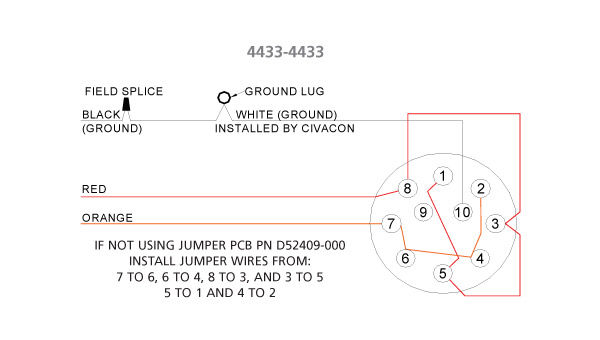

| 4433-4433 | API Thermistor Pattern Socket, 4 J-Slots with 10 Pins (Green) |
| Replacement Parts | Description |
|---|---|
| 4114-4114 | Next Gen, Socket Kit, Faceplate, Optic (Blue) 3-J Slots, 6 Pins, w/Ground Wire |
| 4115-4115 | Next Gen, Socket Kit, Faceplate, Optic (Blue) 3-J Slots, 6 Pins |
| 4414-4414 | Next Gen, Socket Kit, Faceplate, Thermistor (Green) 4-J Slots, 10 Pins, w/ Ground Wire |
| 4415-4415 | Next Gen, Socket Kit, Faceplate, Thermistor (Green) 4-J Slots, 10 Pins |
| GS1001 | SAF-T Ground Wire |
| H52862-KIT | Kit, Next Gen Socket, J-Slot Inserts |
| H52934M | Cap, Molded |
| 13191 | Gasket, Socket Body |
| 13168 | Gasket, Socket Nose Piece |
Downloads
-
Next-Gen Single API Overfill Socket Sell Sheet
Features & Benefits
- Rugged one-piece injection-molded composite connector nose
- Molded in color to match API standards, green for thermistor and blue for optic
- Wear spark and corrosion-resistant nickel-plated zinc aluminum j-slot inserts
- Stainless-steel contacts
- Durable rubber dust cap
- Stainless-steel hardware included
- Thermistor sockets come standard with easy wiring jumper pcb
Specifications
- Materials:
- Housing: Aluminum
- Connector Nose: Valox Composite
- J-Slot Inserts: Nickel-Plated Zinc Aluminum
- Contact Pins: Stainless Steel
- Dimensions: 5.75" W x 4.75" H x 3.5" D
- Weight: 2.5 lbs. (1.1 kg)
- Temperature Range: Operating Temperature 40°F (-40°C) to 160°F (70°C)
Product Numbers
| Product Number | Description |
|---|---|
| 4132-4132 | API Optic Pattern Socket, 3 J-Slots with 6 Pins (Blue), with Ground Wire |
| 4133-4133 | API Optic Pattern Socket, 3 J-Slots with 6 Pins (Blue) |
| 4432-4432 | API Thermistor Pattern Socket, 4 J-Slots with 10 Pins (Green), with Ground Wire |
| 4433-4433 | API Thermistor Pattern Socket, 4 J-Slots with 10 Pins (Green) |
| Replacement Parts | Description |
|---|---|
| 4114-4114 | Next Gen, Socket Kit, Faceplate, Optic (Blue) 3-J Slots, 6 Pins, w/Ground Wire |
| 4115-4115 | Next Gen, Socket Kit, Faceplate, Optic (Blue) 3-J Slots, 6 Pins |
| 4414-4414 | Next Gen, Socket Kit, Faceplate, Thermistor (Green) 4-J Slots, 10 Pins, w/ Ground Wire |
| 4415-4415 | Next Gen, Socket Kit, Faceplate, Thermistor (Green) 4-J Slots, 10 Pins |
| GS1001 | SAF-T Ground Wire |
| H52862-KIT | Kit, Next Gen Socket, J-Slot Inserts |
| H52934M | Cap, Molded |
| 13191 | Gasket, Socket Body |
| 13168 | Gasket, Socket Nose Piece |
Downloads
-
Next-Gen Single API Overfill Socket Sell Sheet
