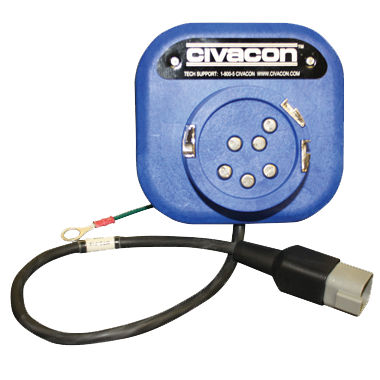

Opti-Link Sockets

The Opti-Link Sockets are uniquely designed to operate and function in the Opti-Link Overfill System. The sockets are pre-wired and fully sealed for corrosion resistance. Since an on board monitor is optional with the Opti-Link system there is no indicator light present on this socket.

Request More Information

Features & Benefits

The Opti-Link socket is API-compatible, allowing it to interface with any optic control monitor plugs.
Rugged one piece molded sockets are designed with replaceable J-slot plates
J-slot plates and socket pins are easily field replaceable with no need to disconnect any wiring
A tough, molded rubber dust cap protects the socket connections from the elements

Part Numbers and Drawings

4132RL Opti-Link Optic Socket Assembly w/5MPLUG

Repair Parts

H52862-KIT J-Slot Replacement Kit
H52865M Replacement Contact Pin

Opti-Link Brochure

Download PDF

Read in browser

Features

Features & Benefits

The Opti-Link socket is API-compatible, allowing it to interface with any optic control monitor plugs.
Rugged one piece molded sockets are designed with replaceable J-slot plates
J-slot plates and socket pins are easily field replaceable with no need to disconnect any wiring
A tough, molded rubber dust cap protects the socket connections from the elements

Model Numbers
