MCP Air Control Assemblies

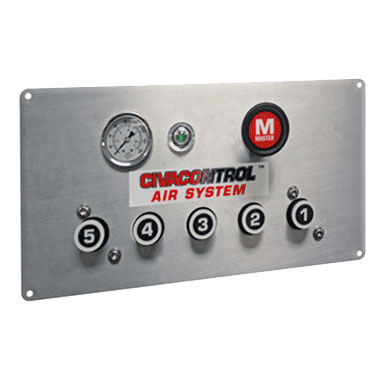

The MCP Air Panel Assembly will provide fail safe control of all essential components during loading and unloading operations of truck mounted tanks and tank trailers.
Request More Information MCP CivaControl™ Air System Brochure
Features & Benefits
- Built in cargo tank safety
- Individual compartment lockout when used in dual manifold operations
- Controls guard bar operations to "set" trailer brakes when activated
- Returns all valves to "closed" position when Emergency Shutoff is activated
- Conveniently mounted on aluminum panel for easy installation
- Available for cargo tanks ranging from 1 to 12 compartments
Product Specifications
- Product/Part Numbers: MCP-XX (Available for Cargo Tanks 1 to 12 compartments)
- Dimensions: See Chart
- Weight: Varies per compartment size
- Operating Pressure: 90 to 150 psi (6.2 to 10.3 Bars)
- Temperature Rating: -40º to 150ºF (-40º to 65.5ºC)
Part Numbers and Drawings
- MCP-1 Civacontrol Panel 1 Compartment
- MCP-2 Civacontrol Panel 2 Compartment
- MCP-3 Civacontrol Panel 3 Compartment
- MCP-4 Civacontrol Panel 4 Compartment
- MCP-5 Civacontrol Panel 5 Compartment
- MCP-6 Civacontrol Panel 6 Compartment
- MCP-7 Civacontrol Panel 7 Compartment
- MCP-8 Civacontrol Panel 8 Compartment
Repair Parts
| Part Number | Description | |
| 12717 | Replacement Valve, 5/2 Stackable Valve | |
| 12717-X | 5/2 Stackable Valve Assy. | |
| 13319 | Replacement Spool Kit | |
| 12071-A | Master Valve, 5/2 Reset Valve | |
| 12069 | Gauge | |
| 9726 | Indicator | |
| 12070-X | MCP Panel |
NOTE: "X" signifies number of compartments
**Replacement knobs are not available on these models
Brochures, Parts Breakdown, Installation Manuals
-
MCP CivaControl™ Installation Manual
-
MCP CivaControl™ Air System Brochure
Videos
MCP CivaControl™ Air System
Civacon's MCP CivaControl™ Air System will provide a simple control for the entire tank system during loading and unloading. CivaControl™Air Systems bring together the control of compartment vents, vapor recovery valves, internal valves, overfill detection and vehicle drive away systems.
Features & Benefits
- Built in cargo tank safety
- Individual compartment lockout when used in dual manifold operations
- Controls guard bar operations to "set" trailer brakes when activated
- Returns all valves to "closed" position when Emergency Shutoff is activated
- Conveniently mounted on aluminum panel for easy installation
- Available for cargo tanks ranging from 1 to 12 compartments
Product Specifications
- Product/Part Numbers: MCP-XX (Available for Cargo Tanks 1 to 12 compartments)
- Dimensions: See Chart
- Weight: Varies per compartment size
- Operating Pressure: 90 to 150 psi (6.2 to 10.3 Bars)
- Temperature Rating: -40º to 150ºF (-40º to 65.5ºC)
Part Numbers and Drawings
- MCP-1 Civacontrol Panel 1 Compartment
- MCP-2 Civacontrol Panel 2 Compartment
- MCP-3 Civacontrol Panel 3 Compartment
- MCP-4 Civacontrol Panel 4 Compartment
- MCP-5 Civacontrol Panel 5 Compartment
- MCP-6 Civacontrol Panel 6 Compartment
- MCP-7 Civacontrol Panel 7 Compartment
- MCP-8 Civacontrol Panel 8 Compartment
Repair Parts
| Part Number | Description | |
| 12717 | Replacement Valve, 5/2 Stackable Valve | |
| 12717-X | 5/2 Stackable Valve Assy. | |
| 13319 | Replacement Spool Kit | |
| 12071-A | Master Valve, 5/2 Reset Valve | |
| 12069 | Gauge | |
| 9726 | Indicator | |
| 12070-X | MCP Panel |
NOTE: "X" signifies number of compartments
**Replacement knobs are not available on these models
Brochures, Parts Breakdown, Installation Manuals
-
MCP CivaControl™ Installation Manual
-
MCP CivaControl™ Air System Brochure
Videos
MCP CivaControl™ Air System
Civacon's MCP CivaControl™ Air System will provide a simple control for the entire tank system during loading and unloading. CivaControl™Air Systems bring together the control of compartment vents, vapor recovery valves, internal valves, overfill detection and vehicle drive away systems.
