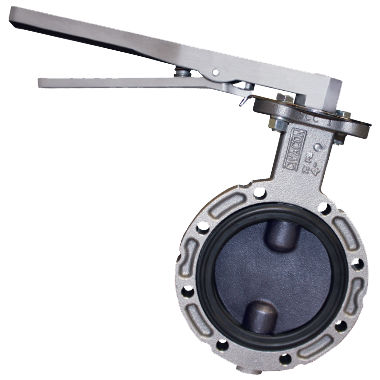

Hybrid Butterfly Valves

Civacon's TTMA Hybrid Butterfly Valves are the ideal solution for all of your wet or dry applications! Easily handles harsh, abrasive crude oil, and refined fuel products as well as any other compatible liquid, powder or abrasive fertilizer service. This style valve combines the durability of a traditional resilient seated butterfly valve, while incorporating the sleek, slim-line, compact body style of a common wet/dry valve. The hybrid valve is designed with the industry standard TTMA bolt pattern which can seamlessly replace any competitor's brand wet/ dry valve with no piping or configuration changes.

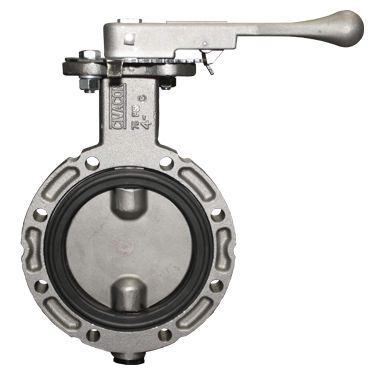

Available in a 3" or 4" aluminum body as well as a 4" corrosion resistant 303 stainless steel body. Each valve offers a compact profile, longevity and durability for all common or harsh transportation industry materials, wet or dry. These valves are available in a variety of seat, disc and handle configurations.

Request More Information

Features & Benefits

Lightweight Compact Aluminum Body or Corrosion Resistant 303 Stainless Steel Body
Available Configurations:
- Seat Options: White Nitrile (FDA), Black Viton® A (FKM), Blue Petro
- Disc Options: Stainless Steel, Ductile Iron, Aluminum, Nylon Coated
Applications include Crude Oil, Liquid, Powder and Refined Fuel Products, Fertilizer
Industry Standard 4-inch TTMA Flange Mounting Pattern
1-1/8" Thick body profile can easily replace competitor's wet/dry valves
10-Position Metering (throttle) Style Handle, available in Aluminum or Steel 8" 12"
Replaceable Seat
Maximum Operating Pressure: 75psi
Temperature Range:
- White Nitrile -40° to 300°F (-40° to 148°C)
- Black Viton® 0° to 400°F (-18° to 205°C)
- Blue Petro -40° to 320°F (-40° to 165°C)

Part Numbers and Drawings

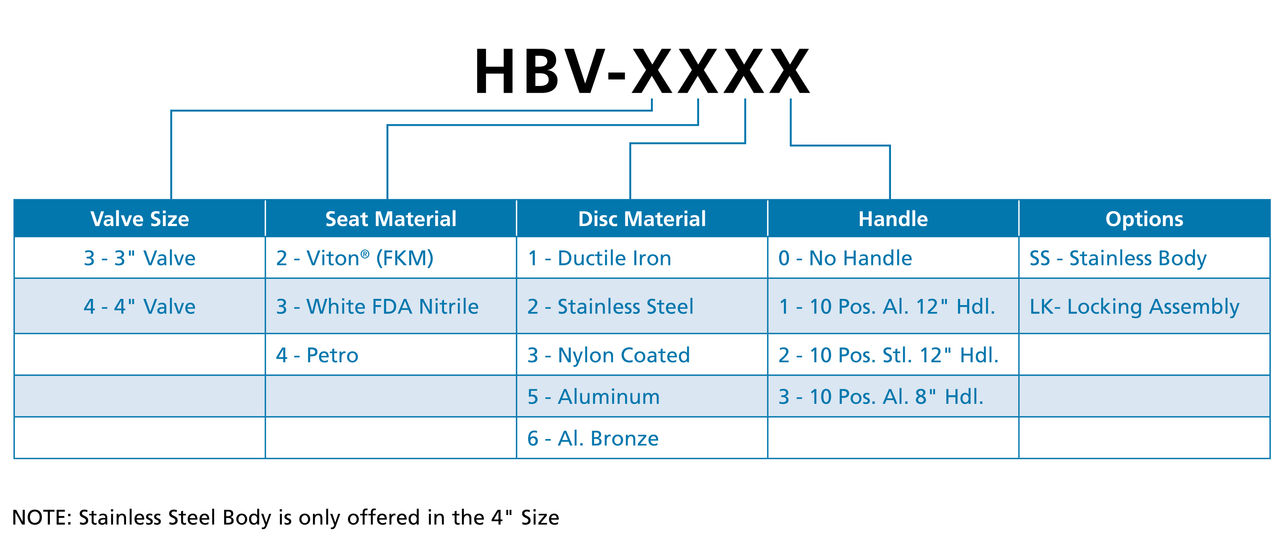

3"& 4"Aluminum Hybrid Butterfly Valve Configurator

Part Numbers and Drawings

3"& 4"Aluminum Hybrid Butterfly Valve Configurator

Brochures, Parts Breakdown, Installation Manuals

HBV Brochure and Data Sheet

Download PDF

Read in browser

Features

Features & Benefits

Lightweight Compact Aluminum Body or Corrosion Resistant 303 Stainless Steel Body
Available Configurations:
- Seat Options: White Nitrile (FDA), Black Viton® A (FKM), Blue Petro
- Disc Options: Stainless Steel, Ductile Iron, Aluminum, Nylon Coated
Applications include Crude Oil, Liquid, Powder and Refined Fuel Products, Fertilizer
Industry Standard 4-inch TTMA Flange Mounting Pattern
1-1/8" Thick body profile can easily replace competitor's wet/dry valves
10-Position Metering (throttle) Style Handle, available in Aluminum or Steel 8" 12"
Replaceable Seat
Maximum Operating Pressure: 75psi
Temperature Range:
- White Nitrile -40° to 300°F (-40° to 148°C)
- Black Viton® 0° to 400°F (-18° to 205°C)
- Blue Petro -40° to 320°F (-40° to 165°C)
