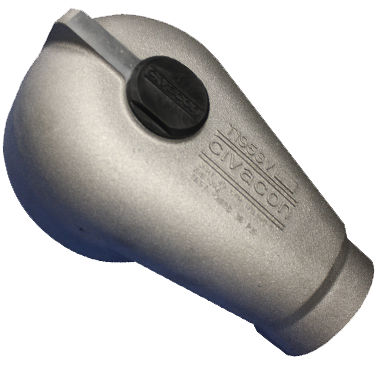

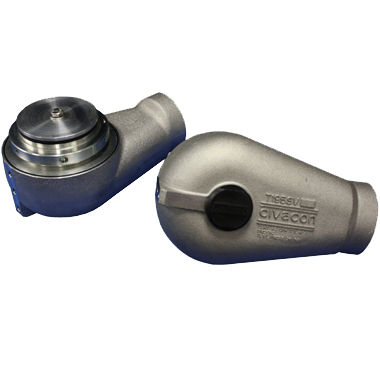

T195SV Vapor Vent

Civacon's T195SV Vapor Recovery Vent for 20” manholes has improved flow and less pressure drop. It will retro-fit all TTMA flanged vapor vents and improves installation by adding a rotatable design.

Request More Information T195SV Vapor Recovery Vent Data Sheet

Features & Benefits

Lightweight aluminum body
Valve stroke increased by 50% (1-1/2" total seat opening)
Increased spring tension for a quick, tight closure
Dual fluorosilicon piston o-ring seals and a lower shaft seal and wiper protects the air system
Added external exhaust port for quicker opening and closing of vent's poppet
Viton GF gaskets and seal
Thread-in cap design eliminates snap ring
Improved flow rating and less pressure drop
Rotatable mounting design
TTMA Flange mount
No minimum operating pressure
Maximum operating pressure (MAWP) 36PSI

Part Numbers

Part Number	Description
T195SV	Vapor Recovery Vent (20" Manhole)
T195SVRK	Repair Kit, T195SV Vapor Recovery Vent
12068	Spanner Nut Tool, T195SV Vapor Recovery Vent

Repair Parts

Part Number	Description
11672	Nylon Cap
11678	Locking Ring
11699	Gasket, Viton GF, 4" OD
11692	O-Ring, Viton, 129 Sec. Dia. .103, Durometer 70
11776	O-Ring, Flurosilicone, 121 Sec. Dia. .103
11772	Piston, Dual Seal
12532	Screw, Hex Head 3/8-16 x 5/8
11694	Spring, SS 1" OD .08 Wire Dia.
10681M	O-Ring, Viton GF, 2-114 Sec. Dia. .103
11697	Screw, Socket Set, 10-24 x 1/2" SS
11775	Breather Vent, 1/8" NPT
11990	Spring Guide
11985	Machined Poppet
H52199M	Plug, 1/8" NPT
