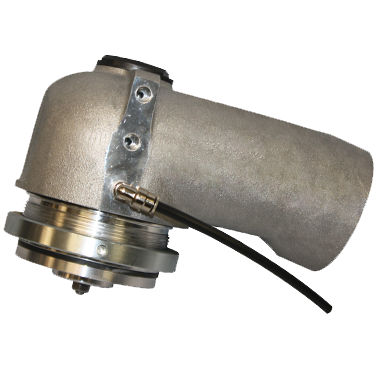

T196SV-CV Crude Oil Vapor Vent
Civacon's Crude Oil Vapor Vent has a unique patent pending dual stage poppet action which effectively enables venting under 35PSI tank pressure. This valve will retro-fit existing 3.5" vapor vents currently mounted on crude oil tanks.
The Civacon T196SV-CV Crude Oil Vent is manufactured to withstand high pressure crude applications. It will open against 35 PSI tank pressure. The unique patent pending dual stage poppet will relieve tank pressure during the 1st stage, allowing for optimal venting during the 2nd stage action. It is designed and tested to take the punishment of crude oil transportation at temeratres from -40ºF to 220ºF (-40ºC to 104ºC). A cap design threads into the top of the vent which allows for a better seal and eliminates the snap ring on top.
The T196SV-CV still maintains a low profile to keep the vents well below the overturn rail, yet with its increased seat opening offers improved flow with less pressure drop. An added third port improves the vent's closing speed.
Request More Information T196SV-CV Data Sheet
Features & Benefits
- Designed for crude oil applications
- Unique patent pending dual stage poppet action - 1st stage relieves tank pressure then automatically moves to stage 2 for maximum venting
- Will open against 35 PSI tank pressure
- Lightweight aluminum body
- 1-1/2" total seat opening
- Increased spring tension for a quick, tight closure
- Dual fluorosilicon piston o-ring seals and a lower shaft seal and wiper protect the air system
- External exhaust port for quicker opening and closing of poppet
- Viton GF wetted gaskets and seals
- Thread-in cap design eliminates snap ring
Part Numbers and Drawings
(click on the part number to view/download part breakdown and drawing)
Repair Parts
| Part Number | Description | |
| T196SV | Vapor Recovery Vent (16" Manhole) | |
| T196SVRK | Repair Kit, T196SV Vapor Recovery Vent | |
| 12067 | Spanner Nut Tool, T196SV Vapor Recovery Vent |
Brochures, Parts Breakdown, Installation Manuals
-
Crude Oil Vapor Vent Data Sheet
-
Crude Oil Vapor Vent Instruction Manual
Features & Benefits
- Designed for crude oil applications
- Unique patent pending dual stage poppet action - 1st stage relieves tank pressure then automatically moves to stage 2 for maximum venting
- Will open against 35 PSI tank pressure
- Lightweight aluminum body
- 1-1/2" total seat opening
- Increased spring tension for a quick, tight closure
- Dual fluorosilicon piston o-ring seals and a lower shaft seal and wiper protect the air system
- External exhaust port for quicker opening and closing of poppet
- Viton GF wetted gaskets and seals
- Thread-in cap design eliminates snap ring
Part Numbers and Drawings
(click on the part number to view/download part breakdown and drawing)
Repair Parts
| Part Number | Description | |
| T196SV | Vapor Recovery Vent (16" Manhole) | |
| T196SVRK | Repair Kit, T196SV Vapor Recovery Vent | |
| 12067 | Spanner Nut Tool, T196SV Vapor Recovery Vent |
Brochures, Parts Breakdown, Installation Manuals
-
Crude Oil Vapor Vent Data Sheet
-
Crude Oil Vapor Vent Instruction Manual
