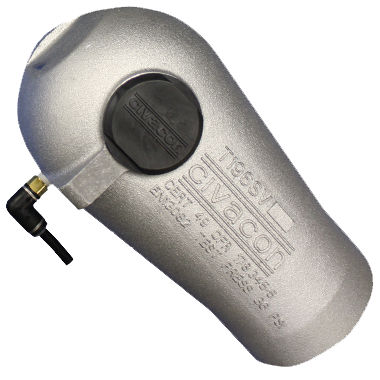

T196SV Vapor Vents
Civacon's T196SV series Sequential Vapor Recovery Vents for 16" manholes have improved flow with less pressure drop. They will retro-fit all existing 3.5" vapor vents and offers best in class features.
Features & Benefits
- Lightweight aluminum body
- Valve stroke increased by 50% (1-1/2" total seat opening)
- Increased spring tension for a quick, light closure
- Dual fluorosilicon piston o-ring seals and a new lower shaft seal and wiper protects the air system
- New added external exhaust port for quicker opening and closing of vent's poppet
- Viton GF gasket and seals
- Thread in cap design eliminates snap ring
- Improved flow rating and less pressure drop
- T196RR has a shortened body for use as a coming vent
- T196SV-FA equipped with flange
Part Numbers
| Part Number | Description | |
| T196SV | Vapor Recovery Vent (16" Manhole) | |
| T196SVRK | Repair Kit, T196SV Vapor Recovery Vent | |

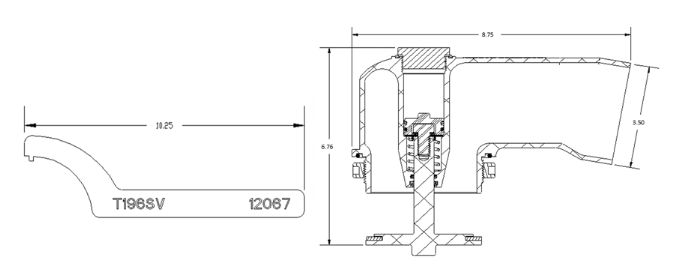

| 12067 | Spanner Nut Tool, T196SV Vapor Recovery Vent |
Repair Parts
| 11672 | Nylon Cap |
| H20083M | Locking Ring |
| 12007 | Gasket, Viton GF, 3.6" OD |
| 11692 | O-Ring, Viton, 129 Sec. Dia. .103, Durometer 70 |
| 11776 | O-Ring, Flurosilicone, 121 Sec. Dia. .103 |
| H20124M | O-Ring, Black Viton |
| 11772 | Piston, Dual Seal |
| 12532 | Screw, Hex Head 3/8-16 x 5/8 |
| 11694 | Spring, SS 1" OD .08 Wire Dia. |
| 10681M | O-Ring, Viton GF, 2-114 Sec. Dia. .103 |
| 11697 | Screw, Socket Set, 10-24 x 1/2" SS |
| 11990 | Spring Guide |
| 11986 | Machined Poppet |
| H52199M | Plug, 1/8" NPT |
| 12526 | Elbow/Air Tube, 1/8" NPT, 5" Air Tubing |
Specifications
- Product Number: T196SV
- Materials: Aluminum, Stainless Steel, Viton®

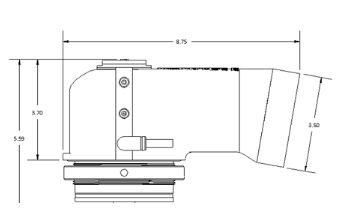

- Dimensions:
- Height Closed - 5.59”
- Height Open - 6.52” Ride
- Height - 3.70”
- Length - 8.75”
- Weight: 3.60 lbs. (1.63 kg) •
- Temperature: -40°F to 160°F (-40°C to 71°)
| Part Number | Description |
| T196SV | Vapor Recovery Vent (16” Manhole) |
| T196RR | Vapor Recovery Vent (Short Body) |
| T196SV-FA | Vapor Recovery Vent w/ Flange |
| T196SVRK | Repair Kit, T196SV Vapor Recovery Vent |
| 12067 | Spanner Nut Tool, T196SV Vapor Recovery Vent Series |
-
T196SV Vapor Recovery Vent Data Sheet
-
T196SV Maintenance Manual
