Junction Boxes

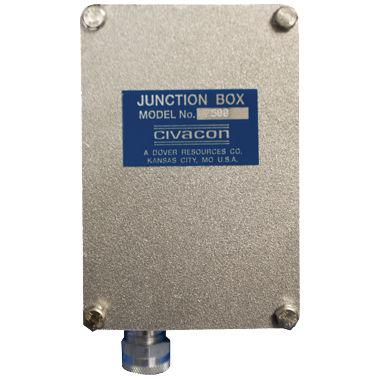

7500 Series Junction Boxes are general purpose junction boxes designed to be used in conjunction with Civacon’s line of Rack Monitor equipment. These junction boxes provide easy maintenance and wiring of the Plug & Cord sets connecting to the Rack Monitors.

Request More Information

Features & Benefits

The Junction Boxes contain a 12 position terminal block and are intended for use with intrinsically safe circuits only. Not intended for 120 or 240 VAC circuits

Part Numbers and Drawings

7500-7500 Junction Box Optic & Thermistor Ground Verification Plug & Cord Sets
7510T-7510 Junction Box 13-Pin Socket for Breakaway Thermistor Plug & Cord Sets
7520-7520 Junction Box with Deadman Switch Assembly
7540-7540 Junction Box 7-Pin Socket for Cane Probes or Breakaway Optic Plug & Cord Set
7540-8X30 Junction Box 7-Pin Socket for Breakaway Optic Plug & Cord Sets
7560-7560 Junction Box with Bypass Connection for 8150 Optic Rack Monitor

Downloads

Brochures, Parts Breakdown, Installation Manuals

7500 Series Junction Box Installation Manual

Download PDF

Read in browser

Features/Benefits

Features & Benefits

The Junction Boxes contain a 12 position terminal block and are intended for use with intrinsically safe circuits only. Not intended for 120 or 240 VAC circuits

Order Guide

Part Numbers and Drawings

7500-7500 Junction Box Optic & Thermistor Ground Verification Plug & Cord Sets
7510T-7510 Junction Box 13-Pin Socket for Breakaway Thermistor Plug & Cord Sets
7520-7520 Junction Box with Deadman Switch Assembly
7540-7540 Junction Box 7-Pin Socket for Cane Probes or Breakaway Optic Plug & Cord Set
7540-8X30 Junction Box 7-Pin Socket for Breakaway Optic Plug & Cord Sets
7560-7560 Junction Box with Bypass Connection for 8150 Optic Rack Monitor
