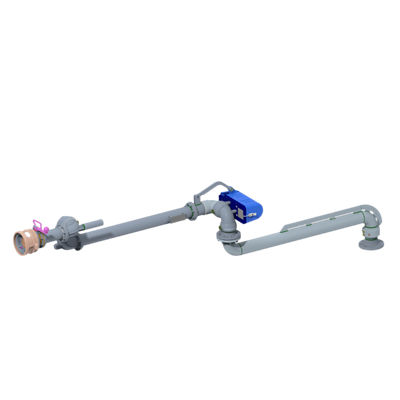

API Bottom Loading Arm G32F, G33F
OPW supported and unsupported boom type bottom loading arms are designed to provide flexible long range operation. A minimum of five swivel planes of rotation offer complete flexibility for loading or unloading of railcars and tank trucks or ISOTAINERS. These arms can be equipped with an API coupler, Dry-disconnect coupler, Threaded or Flanged connection or any other customer-specified end fitting to make connections at the side, at the rear or underneath the vehicle. Intermediate and end swivel assembly can be orientated upwards or downwards for optimum ease of operation.
To assist self-draining capability, optional low profile swivels may be selected in critical gravity unloading applications.
OPW bottom loading arms are available in many different configurations to accommodate specific customer requirements.
- Easy to handle, smooth operation
- Compact storage when not in use
- Proven design OPW loading arms are used by major oil terminals worldwide
- Flanged construction for ease of maintenance
- Swivels equipped with grease nipple
- Durable construction
- Wide range of seal material available
- Sizes 2” / DN50 , 3” / DN80 , 4” / DN100 or 6” / DN150
- Alternative materials of construction Carbon Steel, 316/316L Stainless Steel available
- Available with linear spring or torsion spring
- Pre-balanced at the factory to minimise installation and commissioning time
-
G loader brochure
Product Specifications
Materials of construction
| Inlet swivel | Carbon Steel |
| Intermediate swivel | Ductile Iron |
| End swivel assembly | Aluminium |
| Swivel seals | Viton® GFLT |
| Boom arm | Carbon Steel |
| Primary arm | Aluminium |
Dimensions
| Size | Dimensions (in mm) | |||
| D | R | T | W | |
| 2” / dn50 | 1800 | 381 | 1700 | 350 |
| 3” / dn80 | 1800 | 406 | 1700 | 350 |
| 4” / dn100 | 1800 | 451 | 1700 | 350 |
| 6”/ dn150 | 1800 | 629 | 1700 | 350 |
| Other Dimensions available on request | ||||
Spare Parts
| Part number | Description |
| 3002K-20-VG | 2”/dn50 swivel Seal Replacement Kit, Viton® GFLT |
| 3002K-30-VG | 3”/dn80 swivel Seal Replacement Kit, Viton® GFLT |
| 3002K-40-VG | 4”/dn100 swivel Seal Replacement Kit, Viton® GFLT |
| 3002K-60-VG | 6”/dn150 swivel Seal Replacement Kit, Viton® GFLT |
Related Products

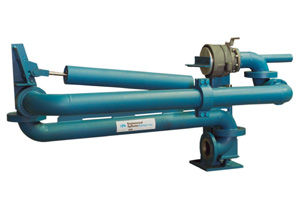

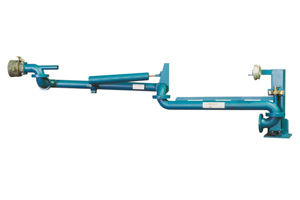

Low Profile Bottom Unloading Arm
| Article number | Description |
| 8870E | Overfill Prevention and Ground Verification Controller to EN13922 |
- Easy to handle, smooth operation
- Compact storage when not in use
- Proven design OPW loading arms are used by major oil terminals worldwide
- Flanged construction for ease of maintenance
- Swivels equipped with grease nipple
- Durable construction
- Wide range of seal material available
- Sizes 2” / DN50 , 3” / DN80 , 4” / DN100 or 6” / DN150
- Alternative materials of construction Carbon Steel, 316/316L Stainless Steel available
- Available with linear spring or torsion spring
- Pre-balanced at the factory to minimise installation and commissioning time
-
G loader brochure
Product Specifications
Materials of construction
| Inlet swivel | Carbon Steel |
| Intermediate swivel | Ductile Iron |
| End swivel assembly | Aluminium |
| Swivel seals | Viton® GFLT |
| Boom arm | Carbon Steel |
| Primary arm | Aluminium |
Dimensions
| Size | Dimensions (in mm) | |||
| D | R | T | W | |
| 2” / dn50 | 1800 | 381 | 1700 | 350 |
| 3” / dn80 | 1800 | 406 | 1700 | 350 |
| 4” / dn100 | 1800 | 451 | 1700 | 350 |
| 6”/ dn150 | 1800 | 629 | 1700 | 350 |
| Other Dimensions available on request | ||||
Spare Parts
| Part number | Description |
| 3002K-20-VG | 2”/dn50 swivel Seal Replacement Kit, Viton® GFLT |
| 3002K-30-VG | 3”/dn80 swivel Seal Replacement Kit, Viton® GFLT |
| 3002K-40-VG | 4”/dn100 swivel Seal Replacement Kit, Viton® GFLT |
| 3002K-60-VG | 6”/dn150 swivel Seal Replacement Kit, Viton® GFLT |
Related Products
Low Profile Bottom Unloading Arm
| Article number | Description |
| 8870E | Overfill Prevention and Ground Verification Controller to EN13922 |
