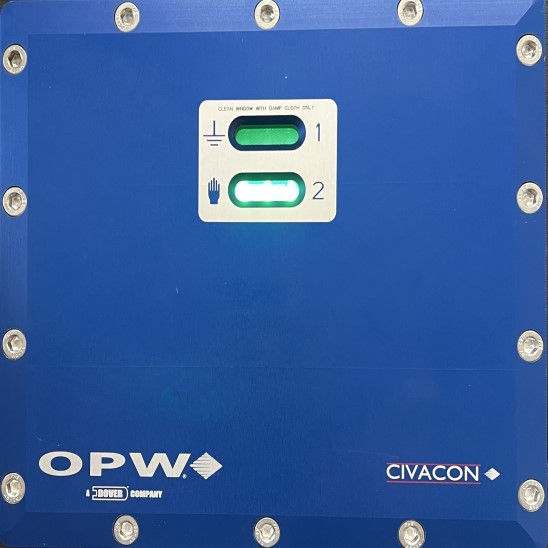

OPW CIVACON 8851E Overfill Prevention and Ground Verification Controller
The OPW CIVACON 8851E Overfill Prevention and Ground Verification Controllers designed for API bottom loading applications on single and multi-compartment tank trucks at storage depots.
In the event of a possible overfill situation the 8851E output relay sends a signal to a Terminal Automation System, control valve or pump to shut-down the loading operation.
Should proper grounding not be maintained a nonpermissive signal, generated by the 8851E, interrupts the loading process immediately. This remote shutdown ability in combination with its
enhanced features makes the 8851E the best fail-safe rack monitor available to the industry today.
It is a direct replacement for the 8130 series.
Features & Benefits
- 8851 for 5-wire OPTIC sensor technology
- Combined Optic-monitoring and Ground Verification
- Monitors up to 12 optic sensor compartments
- Self-checking
- Fail-Safe redundant permissive output relay
- LED status indicator lights
- Wireless by-pass key
- Dead-man switch prepared
- Low temperature useable in extreme environmental conditions as low as -45ºC
- Combine with OPW-Civacon Cane probe for top loading applications on tank truck or rail cars.
- SIL-1 capabilities
| Input power supply | 90-250 Vac 50/60Hz |
| Nominal power cons | 15VA |
| Output relays | 250V ac/dc 2AT |
| Operating temperature | -45ºC to +70 ºC |
| Response time | < 400ms |
| Approvals | ATEX/ IECEx/ QPS |
| Enclosure | IP65 acc. to IEC 60529 |
| Weight | 7.3 kg |
| Dimensions | 270x230x60 mm |
| Part number | Description |
| EL04208 | 88XX MAINS FUSE (1AT) |
| EL04141 | 8800E MAINS FUSE / 88XX RELAYS FUSE |
| H72936 | CORROSION PROTECTOR SILICA GEL 8800 AND 88XX |
| 008-FABSS0138 | BOLT M8 X 25 - DIN 912 A2 70 (SET OF 14 PIECES) |
| Article number | Description |
| 7101E | Blue Poly Optic Plug , 6-pins, 3x J-slot c/w 6 meter coiled blue cable for 5-wire optic sensors (non EN13922 applications) |
| 7301E | Green Poly Thermistor Plug , 10-pins, 4x J-slot c/w 6 meter coiled blue cable for 2-wire thermistor sensors (non EN13922 applications) |
| 7401E | Black Poly plug, 10-pins, 4x J-slot c/w 6 meter coiled cable to EN13922 |
| 7153-7153 | Storage hanger (for 6-pin optic plug) |
| 7450E | Storage hanger (for Euro EN13922 10-pin plug) |
| 7451E | Storage hanger + park detection (for Euro EN13922 10-pin plug) |
Ordering Specifications
-
8851 Overfill Prevention and Ground Verification Controller
-
8870 Overfill Prevention and Ground Verification Controller
Features & Benefits
- 8851 for 5-wire OPTIC sensor technology
- Combined Optic-monitoring and Ground Verification
- Monitors up to 12 optic sensor compartments
- Self-checking
- Fail-Safe redundant permissive output relay
- LED status indicator lights
- Wireless by-pass key
- Dead-man switch prepared
- Low temperature useable in extreme environmental conditions as low as -45ºC
- Combine with OPW-Civacon Cane probe for top loading applications on tank truck or rail cars.
- SIL-1 capabilities
| Input power supply | 90-250 Vac 50/60Hz |
| Nominal power cons | 15VA |
| Output relays | 250V ac/dc 2AT |
| Operating temperature | -45ºC to +70 ºC |
| Response time | < 400ms |
| Approvals | ATEX/ IECEx/ QPS |
| Enclosure | IP65 acc. to IEC 60529 |
| Weight | 7.3 kg |
| Dimensions | 270x230x60 mm |
| Part number | Description |
| EL04208 | 88XX MAINS FUSE (1AT) |
| EL04141 | 8800E MAINS FUSE / 88XX RELAYS FUSE |
| H72936 | CORROSION PROTECTOR SILICA GEL 8800 AND 88XX |
| 008-FABSS0138 | BOLT M8 X 25 - DIN 912 A2 70 (SET OF 14 PIECES) |
| Article number | Description |
| 7101E | Blue Poly Optic Plug , 6-pins, 3x J-slot c/w 6 meter coiled blue cable for 5-wire optic sensors (non EN13922 applications) |
| 7301E | Green Poly Thermistor Plug , 10-pins, 4x J-slot c/w 6 meter coiled blue cable for 2-wire thermistor sensors (non EN13922 applications) |
| 7401E | Black Poly plug, 10-pins, 4x J-slot c/w 6 meter coiled cable to EN13922 |
| 7153-7153 | Storage hanger (for 6-pin optic plug) |
| 7450E | Storage hanger (for Euro EN13922 10-pin plug) |
| 7451E | Storage hanger + park detection (for Euro EN13922 10-pin plug) |
Ordering Specifications
-
8851 Overfill Prevention and Ground Verification Controller
-
8870 Overfill Prevention and Ground Verification Controller
