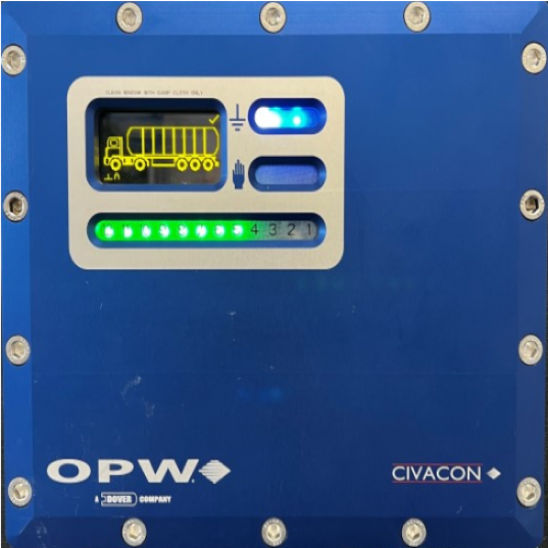

OPW CIVACON 8870E Overfill Prevention and Ground Verification Controller
The OPW CIVACON 8870E Overfill Prevention and Ground Verification Controller is designed for API bottom loading applications on single and multi-compartment tank trucks at storage depots.
In the event of a possible overfill situation the 8870E output relay sends a signal to a Terminal Automation System, control valve or pump to shut-down the loading operation.
Should proper grounding not be maintained a non-permissive signal, generated by the 8870E, interrupts the loading process immediately. This remote shutdown ability in combination with its enhanced features makes the 8870E the best fail-safe rack monitor available to the industry today.
EN13922/ATEX/IECEX/QPS/SIL1+2 compliant.
Features & Benefits
- Automatic recognition of sensor technology
- Supports up to 8 two-wire and 12 five-wire sensors.
- Self-checking ground verification incorporated in cable & plug assembly.
- Three separate output relays for Overfill and Ground Verification.
- Fail-Safe redundant output relay.
- LED status indicator lights.
- OLED Display (optional)
- Enhanced detailed diagnostic readout on graphic display
- Event logging
- Real-time clock
- Vehicle data communication (optional)
- MODBUS communication (optional)
- Sophisticated wireless multiple-function key
- Dead-man switch capable
- Low temperature useable in extreme environmental conditions as low as -45ºC/-49°F
- Conforms to EN13922/ATEX/IECEX/QPS & Sil 1+2
| Input power supply | 85-264 Vac 50/60Hz |
| Nominal power consumption | 4VA |
| Output relays | 250V ac/dc 2AT |
| Communication | Optional RS485/422 datacomms port |
| Operating temperature | -45ºC to +70ºC |
| Response time | < 200ms |
| Approvals | ATEX / IECEx / QPS / PESO |
| Enclosure | IP68 acc. to IEC 60529 |
| Weight / Dimensions | 7.3 kg / 270x230x60 mm |
| Part number | Description |
| EL04208 | 88XX MAINS FUSE (1AT) |
| EL04141 | 8800E MAINS FUSE / 88XX RELAYS FUSE |
| H72936 | CORROSION PROTECTOR SILICA GEL 8800 AND 88XX |
| 008-FABSS0138 | BOLT M8 X 25 - DIN 912 A2 70 (SET OF 14 PIECES) |
| Article number | Description |
| 7101E | Blue Poly Optic Plug , 6-pins, 3x J-slot c/w 6 meter coiled blue cable for 5-wire optic sensors (non EN13922 applications) |
| 7301E | Green Poly Thermistor Plug , 10-pins, 4x J-slot c/w 6 meter coiled blue cable for 2-wire thermistor sensors (non EN13922 applications) |
| 7401E | Black Poly plug, 10-pins, 4x J-slot c/w 6 meter coiled cable to EN13922 |
| And many more - consult factory for options. |
Ordering Specifications
-
8851 Overfill Prevention and Ground Verification Controller
-
8870 Overfill Prevention and Ground Verification Controller
Features & Benefits
- Automatic recognition of sensor technology
- Supports up to 8 two-wire and 12 five-wire sensors.
- Self-checking ground verification incorporated in cable & plug assembly.
- Three separate output relays for Overfill and Ground Verification.
- Fail-Safe redundant output relay.
- LED status indicator lights.
- OLED Display (optional)
- Enhanced detailed diagnostic readout on graphic display
- Event logging
- Real-time clock
- Vehicle data communication (optional)
- MODBUS communication (optional)
- Sophisticated wireless multiple-function key
- Dead-man switch capable
- Low temperature useable in extreme environmental conditions as low as -45ºC/-49°F
- Conforms to EN13922/ATEX/IECEX/QPS & Sil 1+2
| Input power supply | 85-264 Vac 50/60Hz |
| Nominal power consumption | 4VA |
| Output relays | 250V ac/dc 2AT |
| Communication | Optional RS485/422 datacomms port |
| Operating temperature | -45ºC to +70ºC |
| Response time | < 200ms |
| Approvals | ATEX / IECEx / QPS / PESO |
| Enclosure | IP68 acc. to IEC 60529 |
| Weight / Dimensions | 7.3 kg / 270x230x60 mm |
| Part number | Description |
| EL04208 | 88XX MAINS FUSE (1AT) |
| EL04141 | 8800E MAINS FUSE / 88XX RELAYS FUSE |
| H72936 | CORROSION PROTECTOR SILICA GEL 8800 AND 88XX |
| 008-FABSS0138 | BOLT M8 X 25 - DIN 912 A2 70 (SET OF 14 PIECES) |
| Article number | Description |
| 7101E | Blue Poly Optic Plug , 6-pins, 3x J-slot c/w 6 meter coiled blue cable for 5-wire optic sensors (non EN13922 applications) |
| 7301E | Green Poly Thermistor Plug , 10-pins, 4x J-slot c/w 6 meter coiled blue cable for 2-wire thermistor sensors (non EN13922 applications) |
| 7401E | Black Poly plug, 10-pins, 4x J-slot c/w 6 meter coiled cable to EN13922 |
| And many more - consult factory for options. |
Ordering Specifications
-
8851 Overfill Prevention and Ground Verification Controller
-
8870 Overfill Prevention and Ground Verification Controller
