Long Reach Top Loading Arm

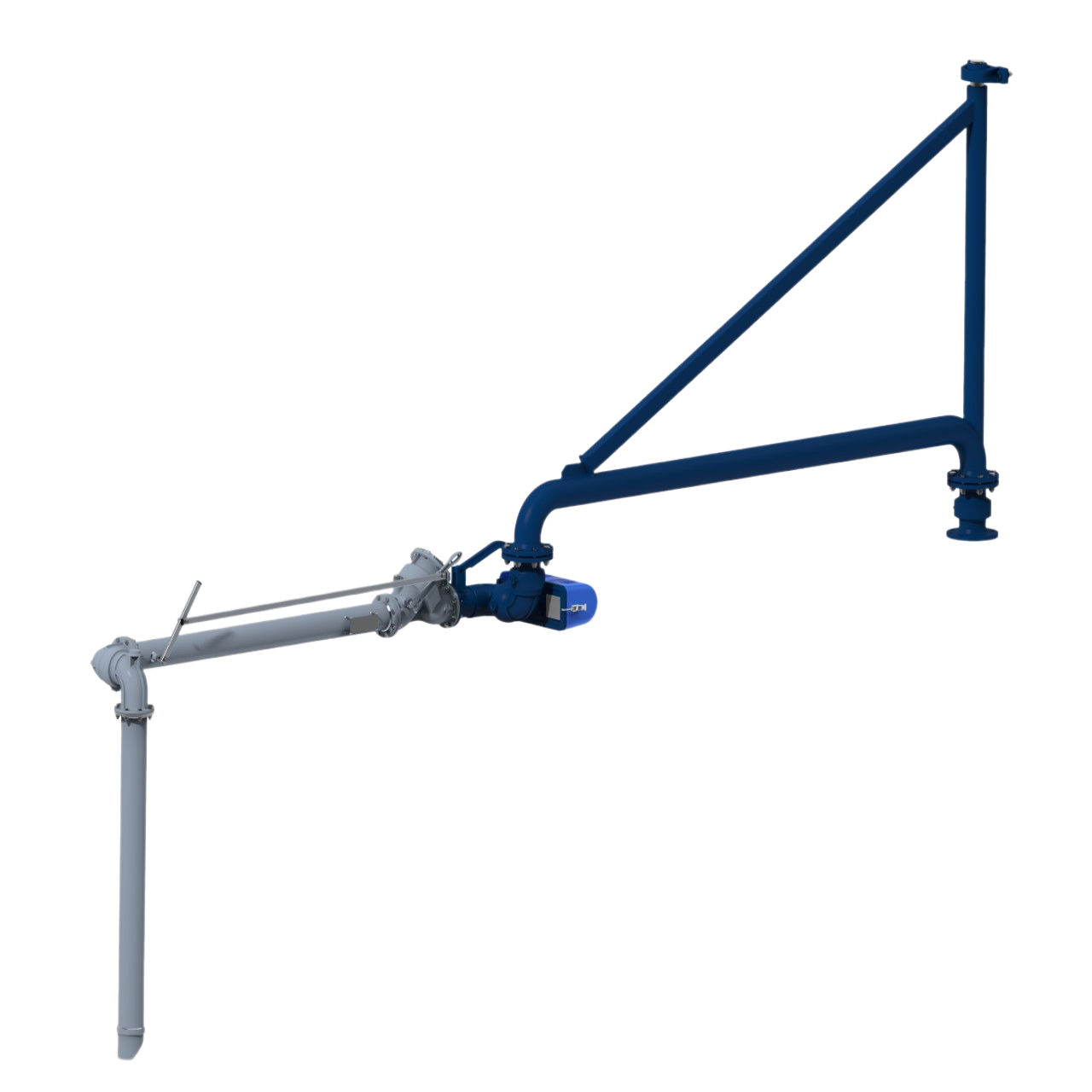

This popular OPW top loading arm is specifically designed for those applications where smooth handling and wide working range is required. Especially useful for top loading of railcars or multi-compartment tank trucks.
The boom, supported by a high quality pillow block, allows for maximum flexibility and smooth operation combined with a significant longer reach.
Both boom and arm can be folded back against the gantry for convenient, compact storage away from the traffic flow.
Commonly used to handle high flow rates and withstand rough usage in railcar and tank-truck loading applications. A stable construction is guaranteed by the supported boom which allows optional Accessories to be mounted.
Features & Benefits
- Ideal for applications where a wide working envelope is required
- Easy to handle, smooth operation
- Compact storage when not in use
- All flanged construction for ease of maintenance
- Swivels equipped with grease nipple
- Durable construction
- Available in 2” / dn50, 3” / dn80 , 4” / dn100 and 6” / dn150 with ASA 150lbs RF or DIN PN10/16 inlet flange
- B32RF with inboard loading valve and remote control handle, B32F without valve
- Inverted intermediate swivel and/or inlet orientation, model B33RF or B33F, to assist self draining capability available
- Boom arm can be made with upwards or downwards slope
- Design allows for optional vapour recovery cone
- Adaptable to tight-fill or closed-system loading with optionally supplied swivels and couplers
- Alternative materials of construction Carbon Steel or 316/316L Stainless Steel
- Wide range of swivel seal material available
- Pre-balanced at the factory to minimise installation and commissioning time
Downloads
-
B loader brochure
-
V64 loader brochure
Product Specifications
Materials of construction
| Inlet swivel | Carbon steel |
| Intermediate swivel | Ductile Iron |
| Drop tube swivel | Aluminium |
| Swivel seals | Viton® GFLT |
| Boom arm | Carbon Steel |
| Primary arm | Aluminium |
| Drop tube | Aluminium |

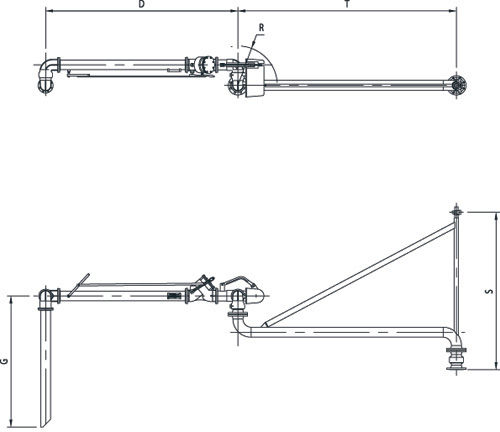

Dimensions
| Size | Dimensions (in mm) | ||||
| D | G | R | S | T | |
| 2” / dn50 | 2200 | 1500 | 381 | 1800 | 2500 |
| 3” / dn80 | 2200 | 1500 | 406 | 1800 | 2500 |
| 4” / dn100 | 2200 | 1500 | 451 | 1800 | 2500 |
| 6”/ dn150 | 2200 | 1500 | 629 | 1800 | 2500 |
Other Dimensions available on request
Spare Parts
| Part number | Description |
| 3002K-20-VG | 2”/dn50 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-30-VG | 3”/dn80 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-40-VG | 4”/dn100 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-60-VG | 6”/dn150 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 6402RK-0202 | 2”/dn50 loading valve repair kit, Viton® |
| 6402RK-0302 | 3”/dn80 loading valve repair kit, Viton® |
| 6402RK-0402 | 4”/dn100 loading valve repair kit, Viton® |
Accessories
-
Electronic Ground Verification Controller Brochure
| Article number | Description |
| 466-AL40 | Drip pan, for 4”/dn100 arm |
| 466-AL60 | Drip pan, for 6”/dn150 arm |
| 464RP-AL30 | T-deflector, for 3”/dn80 arm |
| 464RP-AL40 | T-deflector, for 4”/dn100 arm |
| 788L-0040 | Lock down device, right hand configuration |
| 788LLH-0045 | Lock down device, left hand configuration |

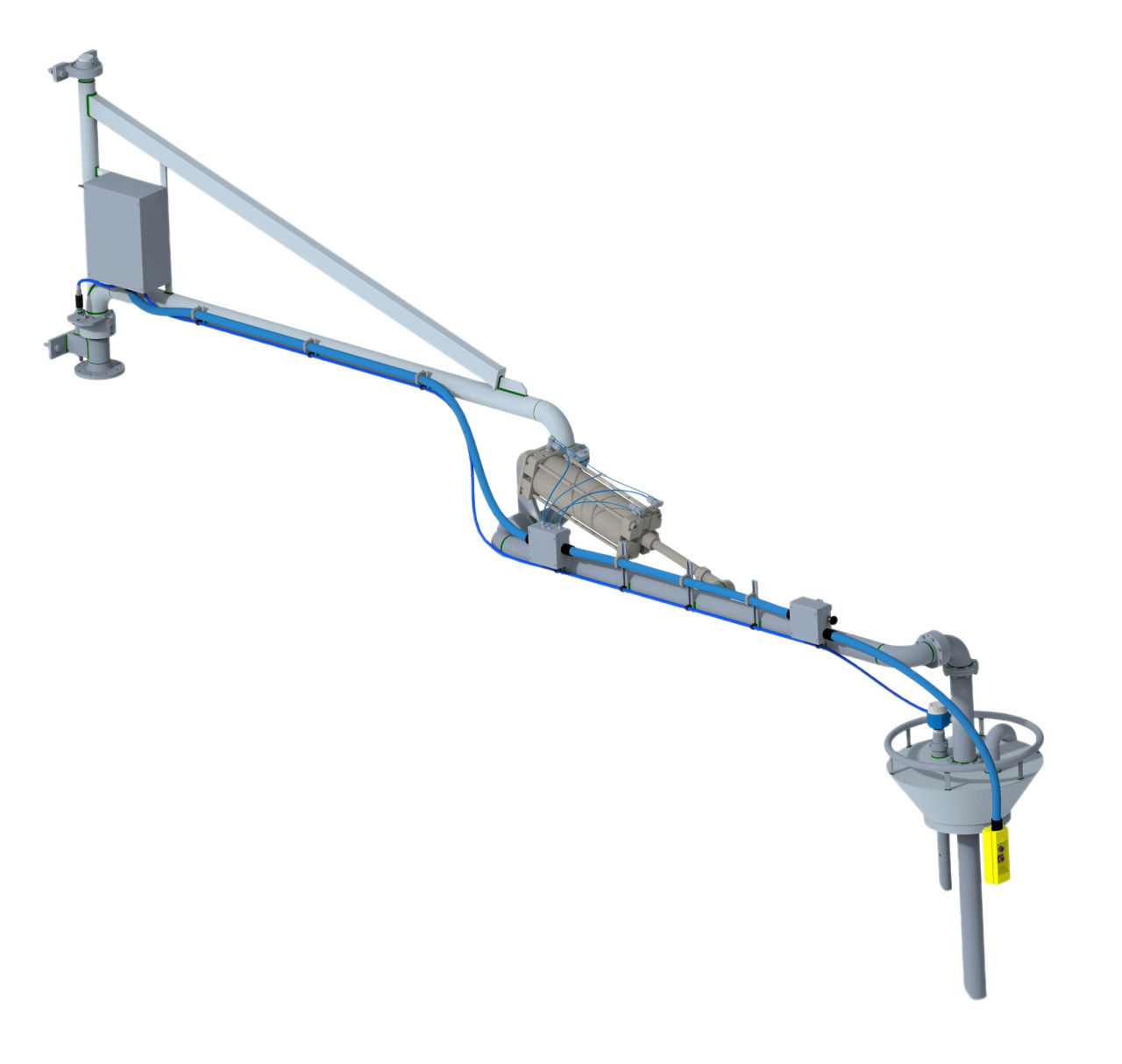

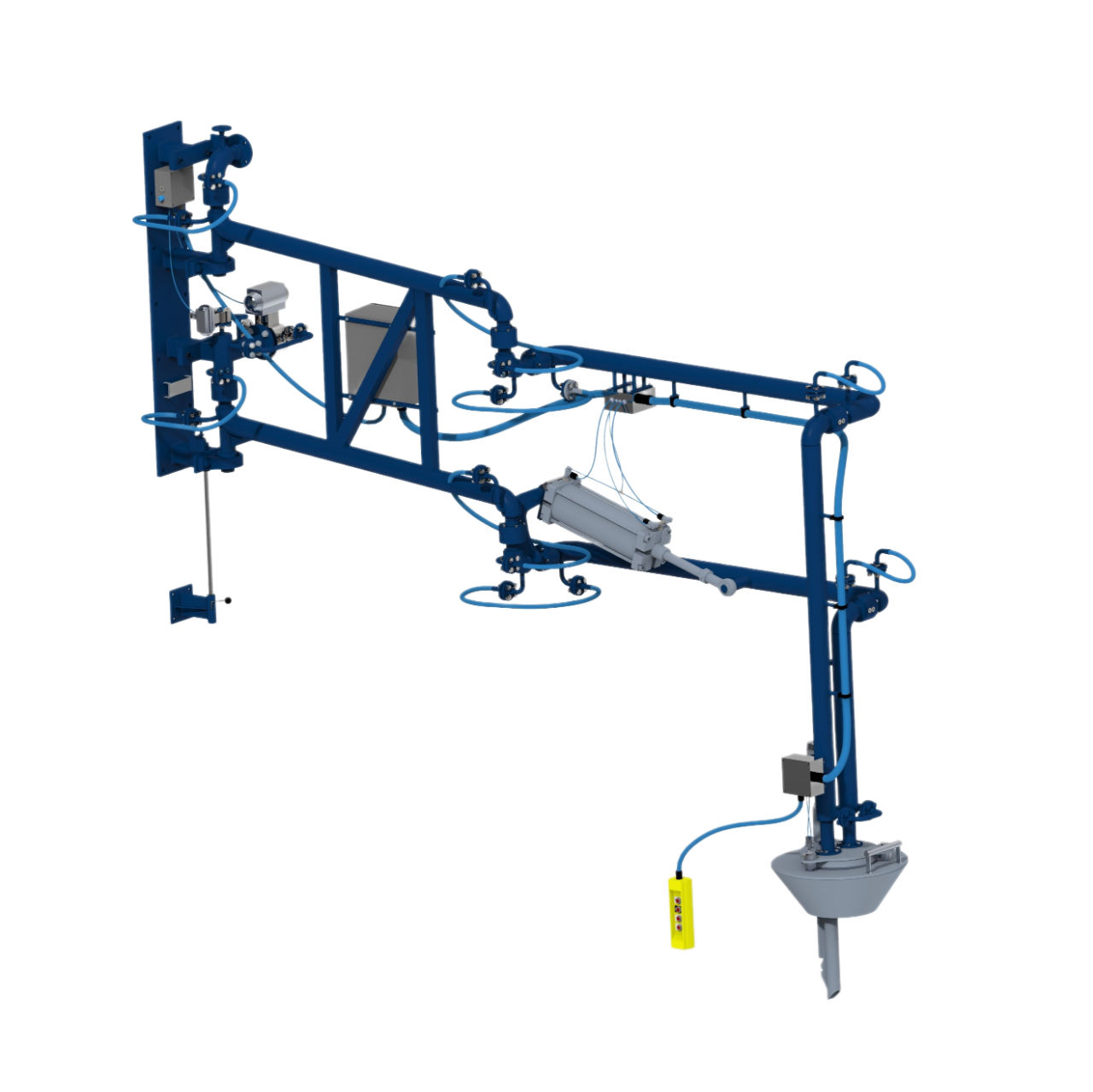

Additional Accessories include: Level detection; Position detection; Working position locking device, Parking lock, Automated or manual ball valve, Telescopic Drop tube and many more, please consult factory for information and availability.

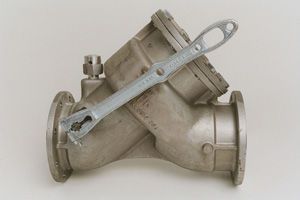

OPW Loading Valve
- Dead man type valve closes automatically when lever is released.
- Adjustable closing ratio prevents line shock, ensures smooth valve closure.
- Integrated TTMA flanges
- Straight or angle design
- Built in Vacuum Breaker Valve.
- Viton® seal as standard, optional Buna; LT Buna.
Features & Benefits
- Ideal for applications where a wide working envelope is required
- Easy to handle, smooth operation
- Compact storage when not in use
- All flanged construction for ease of maintenance
- Swivels equipped with grease nipple
- Durable construction
- Available in 2” / dn50, 3” / dn80 , 4” / dn100 and 6” / dn150 with ASA 150lbs RF or DIN PN10/16 inlet flange
- B32RF with inboard loading valve and remote control handle, B32F without valve
- Inverted intermediate swivel and/or inlet orientation, model B33RF or B33F, to assist self draining capability available
- Boom arm can be made with upwards or downwards slope
- Design allows for optional vapour recovery cone
- Adaptable to tight-fill or closed-system loading with optionally supplied swivels and couplers
- Alternative materials of construction Carbon Steel or 316/316L Stainless Steel
- Wide range of swivel seal material available
- Pre-balanced at the factory to minimise installation and commissioning time
Downloads
-
B loader brochure
-
V64 loader brochure
Product Specifications
Materials of construction
| Inlet swivel | Carbon steel |
| Intermediate swivel | Ductile Iron |
| Drop tube swivel | Aluminium |
| Swivel seals | Viton® GFLT |
| Boom arm | Carbon Steel |
| Primary arm | Aluminium |
| Drop tube | Aluminium |
Dimensions
| Size | Dimensions (in mm) | ||||
| D | G | R | S | T | |
| 2” / dn50 | 2200 | 1500 | 381 | 1800 | 2500 |
| 3” / dn80 | 2200 | 1500 | 406 | 1800 | 2500 |
| 4” / dn100 | 2200 | 1500 | 451 | 1800 | 2500 |
| 6”/ dn150 | 2200 | 1500 | 629 | 1800 | 2500 |
Other Dimensions available on request
Spare Parts
| Part number | Description |
| 3002K-20-VG | 2”/dn50 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-30-VG | 3”/dn80 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-40-VG | 4”/dn100 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-60-VG | 6”/dn150 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 6402RK-0202 | 2”/dn50 loading valve repair kit, Viton® |
| 6402RK-0302 | 3”/dn80 loading valve repair kit, Viton® |
| 6402RK-0402 | 4”/dn100 loading valve repair kit, Viton® |
Accessories
-
Electronic Ground Verification Controller Brochure
| Article number | Description |
| 466-AL40 | Drip pan, for 4”/dn100 arm |
| 466-AL60 | Drip pan, for 6”/dn150 arm |
| 464RP-AL30 | T-deflector, for 3”/dn80 arm |
| 464RP-AL40 | T-deflector, for 4”/dn100 arm |
| 788L-0040 | Lock down device, right hand configuration |
| 788LLH-0045 | Lock down device, left hand configuration |
Additional Accessories include: Level detection; Position detection; Working position locking device, Parking lock, Automated or manual ball valve, Telescopic Drop tube and many more, please consult factory for information and availability.
OPW Loading Valve
- Dead man type valve closes automatically when lever is released.
- Adjustable closing ratio prevents line shock, ensures smooth valve closure.
- Integrated TTMA flanges
- Straight or angle design
- Built in Vacuum Breaker Valve.
- Viton® seal as standard, optional Buna; LT Buna.
