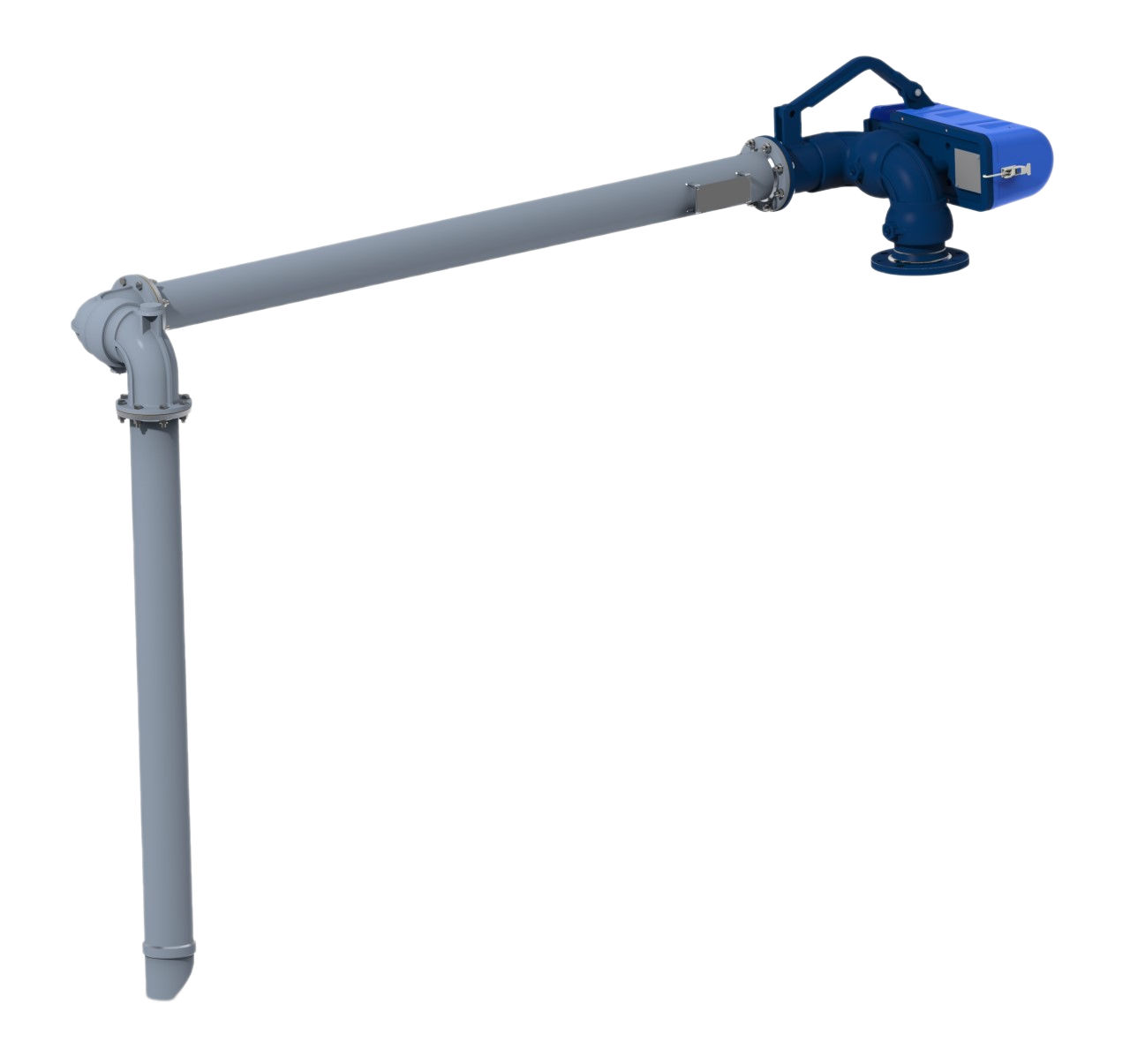

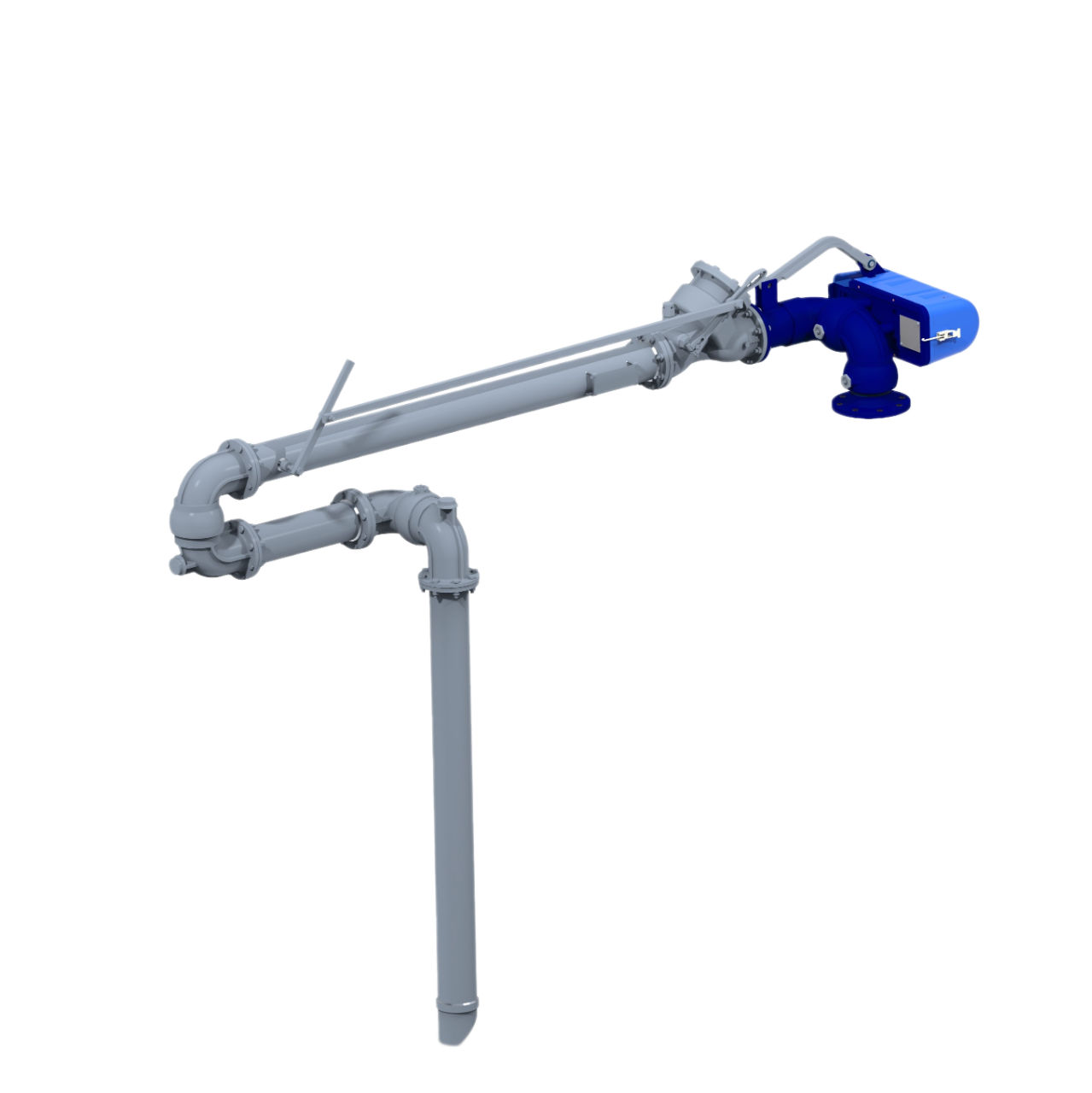

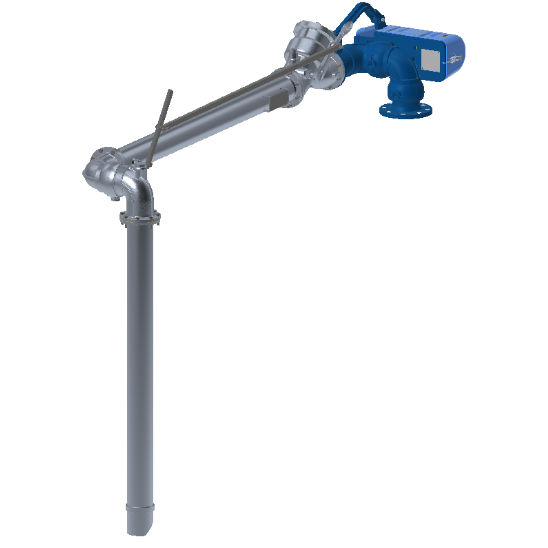

Top Loading Arms
The most popular OPW top loading arm used in many applications worldwide.
This versatile arm is designed specifically for top-loading installations where a variable operating range is required. The secondary arm rotates 360 degrees in the horizontal plane providing a spotting allowance of up to twice its length.

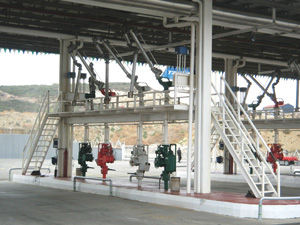

Commonly used to handle high flow rates and to withstand rough usage in tank-truck loading applications. The scissor type arm is also a good choice for railcar loading applications where cars are frequently mis-spotted.
- Ideal for applications where variable spotting of the vehicle is common
- Easy to handle, smooth operation
- All flanged construction in for ease of maintenance (available in 3” and above)
- Swivels equipped with grease nipple
- Durable construction
- C32RF with inboard loading valve and remote control handle, H32F without valve
- Available in 2” / dn50, 3” / dn80 or 4” / dn100 with ASA 150lbs RF or DIN PN10/16 inlet flange
- Inverted inlet swivel orientation, model C33RF or H33F, to assist self draining capability available
- Adaptable to tight-fill or closed-system loading with optionally supplied swivels and couplers
- Alternative materials of construction Carbon Steel or 316/316L Stainless Steel
- Wide range of swivel seal material available
-
C loader brochure
-
E loader brochure
-
J loader brochure
| Inlet swivel | Ductile Iron |
| Intermediate swivel | Aluminium |
| Drop tube swivel | Aluminium |
| Swivel seals | Viton® GFLT |
| Primary arm | Aluminium |
| Secondary arm | Aluminium |
| Drop tube | Aluminium |

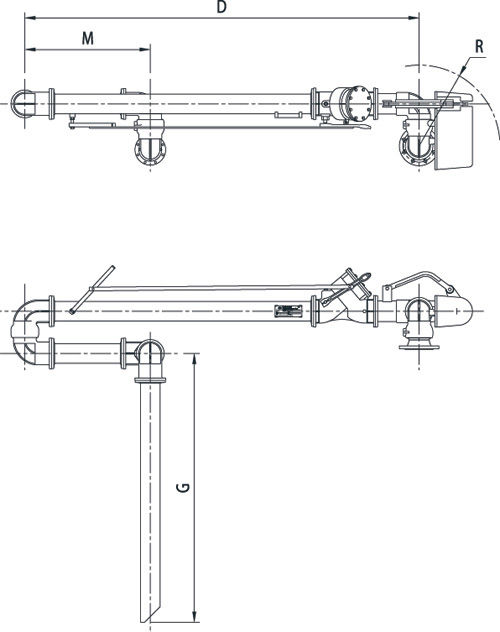

| Size | Dimensions (in mm) | |||
| D | G | M | R | |
| 2” / dn50 | 2200 | 1500 | 700 | 381 |
| 2” / dn50 | 2800 | 1750 | 900 | 381 |
| 3” / dn80 | 2200 | 1500 | 700 | 406 |
| 3” / dn80 | 2800 | 1750 | 900 | 426 |
| 4” / dn100 | 2200 | 1500 | 700 | 451 |
| 4” / dn100 | 2800 | 1750 | 900 | 451 |
| Part number | Description |
| 3002K-20-VG | 2”/dn50 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-30-VG | 3”/dn80 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-40-VG | 4”/dn100 swivel Seal Replacement Kit [Tab], Viton® GFLT |

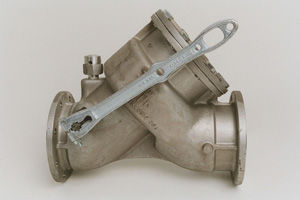

| 6402RK-0202 | 2” loading valve repair kit, Viton® |
| 6402RK-0302 | 3” loading valve repair kit, Viton® |
| 6402RK-0402 | 4” loading valve repair kit, Viton® |
| Article number | Description |
| 466-AL40 | Drip pan, for 4”/dn100 arm |
| 466-AL60 | Drip pan, for 6”/dn150 arm |
| 464RP-AL30 | T-deflector, for 3” /dn80 arm |
| 464RP-AL40 | T-deflector, for 4”/dn100 arm |
| 788L-0040 | Lock down device, right hand configuration |
| 788LLH-0045 | Lock down device, left hand configuration |
Optional available Accessories include: Level detection; Position detection; Working position locking device, Parking lock, Automated or manual ball valve, Telescopic Drop tube, Stand Post and many more, please consult factory for information and availability.
- Ideal for applications where variable spotting of the vehicle is common
- Easy to handle, smooth operation
- All flanged construction in for ease of maintenance (available in 3” and above)
- Swivels equipped with grease nipple
- Durable construction
- C32RF with inboard loading valve and remote control handle, H32F without valve
- Available in 2” / dn50, 3” / dn80 or 4” / dn100 with ASA 150lbs RF or DIN PN10/16 inlet flange
- Inverted inlet swivel orientation, model C33RF or H33F, to assist self draining capability available
- Adaptable to tight-fill or closed-system loading with optionally supplied swivels and couplers
- Alternative materials of construction Carbon Steel or 316/316L Stainless Steel
- Wide range of swivel seal material available
-
C loader brochure
-
E loader brochure
-
J loader brochure
| Inlet swivel | Ductile Iron |
| Intermediate swivel | Aluminium |
| Drop tube swivel | Aluminium |
| Swivel seals | Viton® GFLT |
| Primary arm | Aluminium |
| Secondary arm | Aluminium |
| Drop tube | Aluminium |
| Size | Dimensions (in mm) | |||
| D | G | M | R | |
| 2” / dn50 | 2200 | 1500 | 700 | 381 |
| 2” / dn50 | 2800 | 1750 | 900 | 381 |
| 3” / dn80 | 2200 | 1500 | 700 | 406 |
| 3” / dn80 | 2800 | 1750 | 900 | 426 |
| 4” / dn100 | 2200 | 1500 | 700 | 451 |
| 4” / dn100 | 2800 | 1750 | 900 | 451 |
| Part number | Description |
| 3002K-20-VG | 2”/dn50 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-30-VG | 3”/dn80 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 3002K-40-VG | 4”/dn100 swivel Seal Replacement Kit [Tab], Viton® GFLT |
| 6402RK-0202 | 2” loading valve repair kit, Viton® |
| 6402RK-0302 | 3” loading valve repair kit, Viton® |
| 6402RK-0402 | 4” loading valve repair kit, Viton® |
| Article number | Description |
| 466-AL40 | Drip pan, for 4”/dn100 arm |
| 466-AL60 | Drip pan, for 6”/dn150 arm |
| 464RP-AL30 | T-deflector, for 3” /dn80 arm |
| 464RP-AL40 | T-deflector, for 4”/dn100 arm |
| 788L-0040 | Lock down device, right hand configuration |
| 788LLH-0045 | Lock down device, left hand configuration |
Optional available Accessories include: Level detection; Position detection; Working position locking device, Parking lock, Automated or manual ball valve, Telescopic Drop tube, Stand Post and many more, please consult factory for information and availability.
