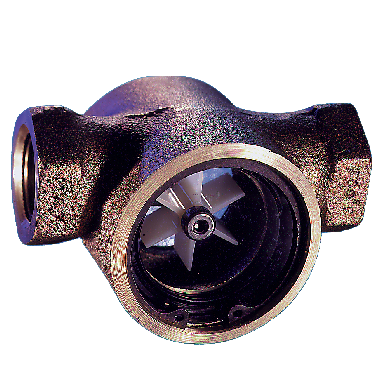

VISI-FLO® 1600 OEM Series Sight Flow Indicators
OPW 1600 Series Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. Good for monitoring critical fluid flow, lubricants, coolant lines and sprinkler systems.
- Brass Construction, Buna seals
- Single & double window designs
- Sizes from ?” – 2”
- 125 psig Pressure Rating
- Available with or without propeller
- FNPT connections
- Economical prices
- Quickly monitor flow, color and clarity
- 48 Hours delivery available to minimize downtime
Technical
Click on the title below to view the technical information.
Specifications
Maximum Pressure: 125 psig Maximum Temperature: 200°F (93°C) Seals: Buna-N Glass Type: Tempered Soda Lime Threads: FNPT Indicator Material: Delrin Body: Bronze
Dimensions
| Size | 1⁄8"– 3⁄8" | 1⁄2"– 3⁄4" | 1" – 1 1⁄4" | 1 1⁄2" – 2" |
| A Overall Length | 3 3⁄16" | 3 13⁄16" | 2 7⁄16" | 4 5⁄8" |
| B Overall Height | 2 1⁄8" | 3 13⁄16" | 3 1⁄8" | 4" |
| C Overall Width | 2 7⁄32" | 2 7⁄16" | 3" | 3 13⁄16" |
-
e-coated-visi-flo-flyer.pdf
- Brass Construction, Buna seals
- Single & double window designs
- Sizes from ?” – 2”
- 125 psig Pressure Rating
- Available with or without propeller
- FNPT connections
- Economical prices
- Quickly monitor flow, color and clarity
- 48 Hours delivery available to minimize downtime
Technical
Click on the title below to view the technical information.
Specifications
Maximum Pressure: 125 psig Maximum Temperature: 200°F (93°C) Seals: Buna-N Glass Type: Tempered Soda Lime Threads: FNPT Indicator Material: Delrin Body: Bronze
Dimensions
| Size | 1⁄8"– 3⁄8" | 1⁄2"– 3⁄4" | 1" – 1 1⁄4" | 1 1⁄2" – 2" |
| A Overall Length | 3 3⁄16" | 3 13⁄16" | 2 7⁄16" | 4 5⁄8" |
| B Overall Height | 2 1⁄8" | 3 13⁄16" | 3 1⁄8" | 4" |
| C Overall Width | 2 7⁄32" | 2 7⁄16" | 3" | 3 13⁄16" |
-
e-coated-visi-flo-flyer.pdf
