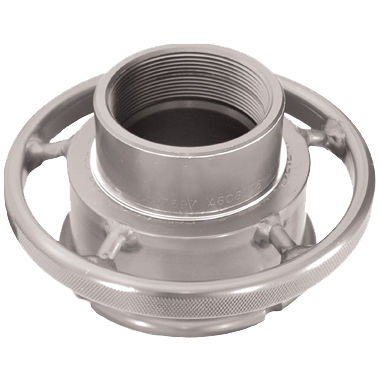

LQC SERIES - “Twister®” Locking Quick Connect
The Twister® LQC is the next generation of quick couplings designed as an option to replace conventional cam & groove couplings that are used in critical service applications. The Twister LQC is engineered to be used in conjunction with hoses and loading arms.

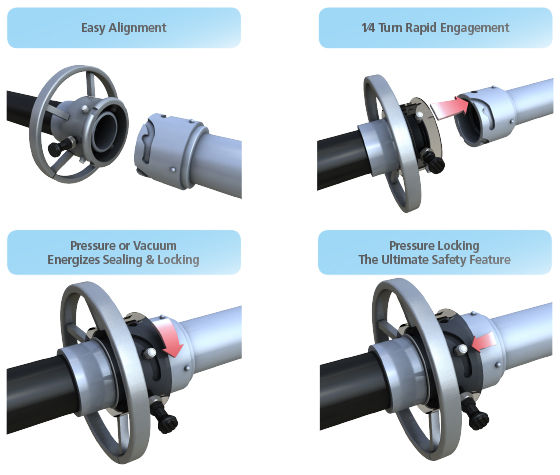

The power of the Twister® LQC is not only how it connects, but also how it stays connected. A quarter turn of the LQC onto a pipe allows a nipple to engage within a recessed area of the adaptor's hook-shaped design. Pressure or vacuum within the line keeps the nipple secure in the hooked area of the adaptor. This patented design maintains a secure connection in high or low pressure uses.
After removing all line pressure, the LQC disengages by rotating the coupler a quarter turn. Disengagement is achieved by hand with no need of special tools or equipment – another advantage of the Twister® LQC.
The Twister® LQC is available in a variety of materials to meet your specific application needs, including: stainless steel, cold temperature carbon steel and aluminum.
- Physically impossible to disengage coupling when pressure is in the line
- Handles extreme temperatures and pressures
- Exceptional materials of construction provides flexibility of application
- ¼-turn ON/OFF provides rapid engagement and reduces operator stress
- Engagement of connection and disconnection is done by hand – no tools required
- Smooth bore is ideal for pigging applications
- Available in Sizes: ¾", 1", 2", 3", 4" and 6"
- Materials of Construction: Stainless Steel, Cold-Temperature Carbon Steel & Aluminum
- Pressure Ratings Equivalent to ANSI 150/300
Order Guide
Applications
Perfect for situations where connections of high or low temperatures and pressures are experienced – in-plant, through plant, out-of-plant.
- Oil
- LPG
- Acids
- Lubricants
- Ammonia
- Paints
- Fracking
- Metal Alkyls
- And More
Temperature & Pressure
Size | Fluorocarbon, EPDM, Sat. Nitrile, Encap Fluorocarbon | Buna-N | Neoprene | Max PSI | Max BAR | |||
1" CS | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 260 | 18 |
1" SST | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 560 | 39 |
1" Alum | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 655 | 45 |
2" Aluminum & 2" CS and SST w/ Aluminum Sleeve | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 260 | 18 |
2" CS | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 655 | 45 |
2" SST | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 560 | 39 |
3" Aluminum & 3" CS and SST w/ Aluminum Sleeve | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 260 | 18 |
3" CS | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 655 | 45 |
3" SST | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 560 | 39 |
4" Aluminum & 4" CS and SST w/ Aluminum Sleeve | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 260 | 18 |
4" CS | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 655 | 45 |
4" SST | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 560 | 39 |
Videos
HILTAP LQC Coupler Animation
Demonstration of Competitive CAMLOK Disengaging at 60 psi
Unlike competitors of OPW Engineered Systems, our Kamlok will not allow users to accidentally disengage a valve with pressure in the line. As the video demonstrates, disengaging a locked coupler with active line pressure could cause serious injury or even death.
Demonstration of Twister LQC at 60 psi
This video shows OPW Engineered Systems' Twister LQC staying connected due to active pressure within the line. Even though the operator attempts to disengage the connection, he is unable. It is only after the pressure is removed from the line, the connection disengages. This safety feature helps protect the operator from pressure discharge and exposure to the commodity inside the connection.
Offloading of Railcar with OPW's LQC
Workers prepare to offload a commodity from a railcar using OPW Engineered Systems' Locking Quick Connect (LQC). The operator is able to quickly connect, twist and engage the connection without any special tools - saving time and increasing safety.
Offloading of Railcar with OPW's LQC
The animation shows how OPW Engineered Systems' Locking Quick Connect (LQC) remains engaged even if the locking notch releases. This enhanced safety device means operators can count on the LQC to reduce the probability of accidental disconnection and keep the product contained.
Twister LQC Locking Handle
Downloads
-
LQC-Coupling-Datasheet
- Physically impossible to disengage coupling when pressure is in the line
- Handles extreme temperatures and pressures
- Exceptional materials of construction provides flexibility of application
- ¼-turn ON/OFF provides rapid engagement and reduces operator stress
- Engagement of connection and disconnection is done by hand – no tools required
- Smooth bore is ideal for pigging applications
- Available in Sizes: ¾", 1", 2", 3", 4" and 6"
- Materials of Construction: Stainless Steel, Cold-Temperature Carbon Steel & Aluminum
- Pressure Ratings Equivalent to ANSI 150/300
Order Guide
Applications
Perfect for situations where connections of high or low temperatures and pressures are experienced – in-plant, through plant, out-of-plant.
- Oil
- LPG
- Acids
- Lubricants
- Ammonia
- Paints
- Fracking
- Metal Alkyls
- And More
Temperature & Pressure
Size | Fluorocarbon, EPDM, Sat. Nitrile, Encap Fluorocarbon | Buna-N | Neoprene | Max PSI | Max BAR | |||
1" CS | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 260 | 18 |
1" SST | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 560 | 39 |
1" Alum | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 655 | 45 |
2" Aluminum & 2" CS and SST w/ Aluminum Sleeve | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 260 | 18 |
2" CS | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 655 | 45 |
2" SST | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 560 | 39 |
3" Aluminum & 3" CS and SST w/ Aluminum Sleeve | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 260 | 18 |
3" CS | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 655 | 45 |
3" SST | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 560 | 39 |
4" Aluminum & 4" CS and SST w/ Aluminum Sleeve | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 260 | 18 |
4" CS | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 655 | 45 |
4" SST | 250° F | 121° C | 248° F | 120° C | 250° F | 121° C | 560 | 39 |
Videos
HILTAP LQC Coupler Animation
Demonstration of Competitive CAMLOK Disengaging at 60 psi
Unlike competitors of OPW Engineered Systems, our Kamlok will not allow users to accidentally disengage a valve with pressure in the line. As the video demonstrates, disengaging a locked coupler with active line pressure could cause serious injury or even death.
Demonstration of Twister LQC at 60 psi
This video shows OPW Engineered Systems' Twister LQC staying connected due to active pressure within the line. Even though the operator attempts to disengage the connection, he is unable. It is only after the pressure is removed from the line, the connection disengages. This safety feature helps protect the operator from pressure discharge and exposure to the commodity inside the connection.
Offloading of Railcar with OPW's LQC
Workers prepare to offload a commodity from a railcar using OPW Engineered Systems' Locking Quick Connect (LQC). The operator is able to quickly connect, twist and engage the connection without any special tools - saving time and increasing safety.
Offloading of Railcar with OPW's LQC
The animation shows how OPW Engineered Systems' Locking Quick Connect (LQC) remains engaged even if the locking notch releases. This enhanced safety device means operators can count on the LQC to reduce the probability of accidental disconnection and keep the product contained.
Twister LQC Locking Handle
Downloads
-
LQC-Coupling-Datasheet
