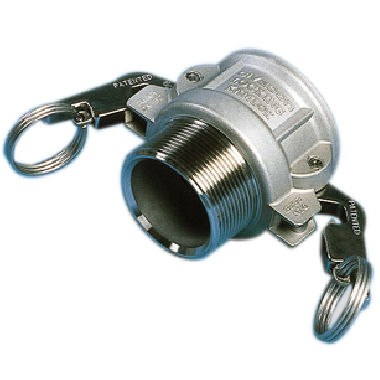

Autolok™ Self-Locking Quick Couplings
Autolok™ by OPW represents the most significant development in quick-disconnect cam and groove coupling design. It utilizes a patented locking arm design that ensures the arms are locked automatically when closed. Opening is a simple matter of tugging the finger rings™, eliminating the use of clips, pins or buttons.
If operator safety and fluid integrity are important to your business: specify authentic OPW AUTOLOK™ quick couplings, recognized as the industry’s safest and sturdiest cam and groove coupling system.
Only the original Autolok™ quick couplers come with the patented smooth-action arms to ensure hassle free operation. Always specify authentic OPW Autolok™ to ensure safety, cleanliness and reliability.
Features & Benefits
- The Only Original
- Not affected by process vibrations
- Twin-Kam™ arms, prevent unintentional arm release beyond 45º
- Added protection, exclusive Twin-Kam™ arm design with special detent provide extra protection against accidental release or uncoupling.
- GFL™ Guaranteed For Life cam arms
- 316 Stainless Steel, EN10204-3.1 material certification available
- Cam and Groove design provides reliable smooth operation in 360º orientation
- Ease of use Arms lock automatically. No clips to insert or remove, no spring-loaded button to push.
- Spring-Ring™ finger-rings, rings will not get trapped under the arms so opening and closing is quick and easy
- Heavy-duty construction
- Best value, built to the highest quality standards with unique ease of use and safety features makes OPW Autolok™ the best overall value in the market
Standard Configuration
- finger rings are standard on all sizes
AL = aluminium BR = bronze SS = 316 Stainless Steel PP = polypropylene
733BBL Coupler (BSPT)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | • | • | • | • | • | • | • | • | • | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
733CL Coupler
with hose shank
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | – | • | • | • | • | • | • | • | • | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
733CCL Coupler
with hose shank for use with reusable hoseclamps to DIN2817
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | – | • | • | • | • | • | • | • | • | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
733DBSL Coupler (BSPP)
with female thread
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | • | • | • | • | • | • | • | • | • | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
733DBSFL Coupler (BSPP)
with Thread Gasket (DIN2828)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | • | • | • | • | • | • | • | • | • | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
733DCL dustcap
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | –* | • | • | • | • | • | • | • | • | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
*3/4 is suitable for 1/2
SS Butt-Weld AUTOLOK™ 733BWDL-SS
| mm | inch | A | B | C | D | E |
| 15 | 0.5 | 48 | 12 | 42 | 2.3 | 21.3 |
| 20 | 0.75 | 48 | 12 | 42 | 2.6 | 26.9 |
| 25 | 1 | 62 | 21 | 46 | 2.6 | 33.7 |
| 32 | 1.25 | 71 | 22 | 58 | 2.6 | 42.4 |
| 40 | 1.5 | 72 | 22 | 66 | 2.6 | 48.3 |
| 50 | 2 | 78 | 26 | 79 | 2.9 | 60.3 |
| 65 | 2.5 | 79 | 22 | 89 | 2.9 | 76.1 |
| 80 | 3 | 90 | 33 | 110 | 3.2 | 88.9 |
| 100 | 4 | 98 | 39 | 141 | 3.6 | 114.3 |
| <---------------Dimensions in MM-----------> | ||||||
SS Butt-Weld AUTOLOK 733BWHL-SS
| mm | inch | A | B | 0C | D | 0E | F |
| 15 | 0.5 | 48 | 12 | 42 | 1.6 | 21.3 | 7 |
| 20 | 0.75 | 48 | 12 | 42 | 1.6 | 26.9 | 7 |
| 25 | 1 | 62 | 21 | 46 | 2 | 33.7 | 7 |
| 32 | 1.25 | 71 | 22 | 58 | 2 | 42.4 | 7 |
| 40 | 1.5 | 72 | 22 | 66 | 2 | 48.3 | 7 |
| 50 | 2 | 78 | 26 | 79 | 2 | 60.3 | 8 |
| 65 | 2.5 | 79 | 22 | 89 | 2.3 | 76.1 | 10 |
| 80 | 3 | 90 | 33 | 110 | 2.3 | 88.9 | 10 |
| 100 | 4 | 98 | 39 | 141 | 2.6 | 114.3 | 12 |
| <---------------Dimensions in MM-----------> | |||||||
DIN Flanged SS AUTOLOK™ 733LBS-SS DIN PN 10/16
| mm | inch | 0k | 0D | h | n | 0d |
| 15 | 0.5 | 65 | 95 | 14 | 4 | 14 |
| 20 | 0.75 | 75 | 105 | 16 | 4 | 14 |
| 25 | 1 | 85 | 115 | 16 | 4 | 14 |
| 32 | 1.25 | 100 | 140 | 16 | 4 | 18 |
| 40 | 1.5 | 110 | 150 | 16 | 4 | 18 |
| 50 | 2 | 125 | 165 | 18 | 4 | 18 |
| 65 | 2.5 | 145 | 185 | 18 | 4 | 18 |
| 80 | 3 | 160 | 200 | 20 | 8 | 18 |
| <---------------Dimensions in MM-----------> | ||||||
ANSI Flanged SS AUTOLOK™ 733LBS-SS ANSI 150lbs
| mm | inch | 0k | 0D | h | n | 0d |
| 15 | 0.5 | 60.5 | 88.9 | 11.2 | 4 | 15.7 |
| 20 | 0.75 | 69.9 | 98.6 | 12.7 | 4 | 15.7 |
| 25 | 1 | 79.2 | 108 | 14.2 | 4 | 15.7 |
| 32 | 1.25 | 88.9 | 117.3 | 15.7 | 4 | 15.7 |
| 40 | 1.5 | 98.6 | 127 | 17.5 | 4 | 15.7 |
| 50 | 2 | 102.7 | 152.4 | 19.1 | 4 | 19.1 |
| 65 | 2.5 | - | - | - | - | - |
| 80 | 3 | 152.4 | 190.5 | 23.9 | 4 | 19.1 |
| <---------------Dimensions in MM-----------> | ||||||
Ordering Guide
