Kamlok® Twin-Kam™ Quick Couplings
OPW’s Kamlok® Quick Disconnects are the industry standard in cam-and-groove couplers for safety and ease of use. All Kamlok couplers and dust caps feature the exclusive Twin-Kam™ arm design to help prevent accidental release, and Spring-Ring™ to ensure proper position of finger rings.
Features & Benefits
- The Only Original
- Long-life reliability specifically designed and manufactured with the highest alloys and gasket materials to endure the harshest environments
- Twin-Kam™ arms, prevent unintentional arm release beyond 45º
- Added protection, Twin-Kam™ arm special detent secure arms in position to prevent accidental uncoupling
- GFL™ Guaranteed For Life cam arms
- Cam and Groove design provides reliable smooth operation in 360º orientation
- Ease of use Cam and Groove design offers smooth coupling and uncoupling
- Resistant to vibrations
- Spring-Ring™ finger-rings, rings will not get trapped under the arms so opening and closing is quick and easy
- Heavy-duty construction
- Available in Aluminium; Bronze; Polypropylene and 316 Stainless Steel
- Arm pins standard in corrosion resistant stainless steel
- Best value, built to the highest quality standards with unique ease of use and safety features makes OPW Kamlok® the best overall value in the market
Arm Locked
With one arm locked down firmly and the other arm in the unique 45º detent position, adaptor remains secure in coupler.
One Arm Fully Released
With one arm fully released and the other arm in the detent position, slight leakage may occur at full pressure.
Both Arms Fully Released
With both arms in the detent position the adaptor remains secure in coupler.
The line pressure increases resistance to open arms beyond this point, in fact it pushes the cam arms to close again.
Standard Configuration
- Finger rings are standard on sizes from 25mm / 1 inch and up
- DIN SS Kamlok equipped with finger rings on all sizes
AL = aluminium BR = bronze SS = 316 Stainless Steel PP = polypropylene

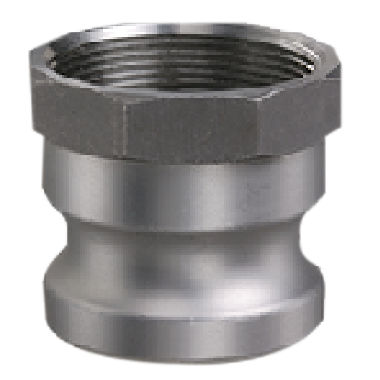

633ABS Adaptor (BSPP)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | • |
| PP | – | • | • | – | • | • | – | • | – | – | – | – |
633DBS Coupler (BSPP)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | • |
| PP | – | • | • | – | – | • | – | • | – | – | – | – |
633ABSF Adaptor (BSPP)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | – | • | • | • | • | • | – | • | – | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
633DBSF Coupler (BSPP)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | – | • | • | • | • | • | – | • | – | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
633FB Adaptor (BSPT)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | - |
| PP | - | • | • | - | • | • | - | • | - | - | - | - |
633BB Coupler (BSPT)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | - |
| PP | - | • | • | - | • | • | - | • | - | - | - | - |

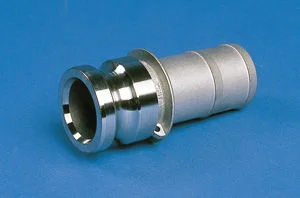

663E Adaptor
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | • | • | • | • | • | • | • | • | • | • | • |
| BR | – | • | • | • | • | • | • | • | • | • | • | • |
| SS | – | • | • | • | • | • | • | • | • | • | • | – |
| PP | – | • | • | – | • | • | – | • | – | – | – | – |
633C Coupler
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | • | • | • | • | • | • | • | • | • | • | • |
| BR | – | • | • | • | • | • | • | • | • | • | • | • |
| SS | – | • | • | • | • | • | • | • | • | • | • | – |
| PP | – | • | • | – | • | • | – | • | – | – | – | – |
633EC Adaptor
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | – | – | • | – | • | • | – | • | – | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
634A plug
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | • |
| PP | – | – | • | – | • | • | – | • | – | – | – | – |
634B cap
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | • |
| PP | – | – | • | – | • | • | – | • | – | – | – | – |
634BK cap
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | • | • | • | • | • | – | – | – |
| BR | – | – | – | – | • | • | • | • | • | – | – | – |
| SS | – | – | – | – | • | • | • | • | • | – | – | – |
| PP | – | – | – | – | • | • | – | • | – | – | – | – |
SS Butt-Weld KAMLOK Coupler Type 633BWH-SS
| mm | inch | A | B | 0C | D | 0E | F |
| 15 | 0.5 | 116 | 54 | 41 | 1.6 | 21.3 | 7 |
| 20 | 0.75 | 116 | 54 | 41 | 1.6 | 26.9 | 7 |
| 25 | 1 | 125 | 61 | 47 | 2 | 33.7 | 7 |
| 32 | 1.25 | 181 | 83 | 58 | 2 | 42.4 | 7 |
| 40 | 1.5 | 189 | 91 | 65 | 2 | 48.3 | 7 |
| 50 | 2 | 199 | 101 | 75 | 2 | 60.3 | 8 |
| 65 | 2.5 | 210 | 112 | 90 | 2.3 | 76.1 | 10 |
| 80 | 3 | 254 | 138 | 108 | 2.3 | 88.9 | 10 |
| 100 | 4 | 282 | 166 | 140 | 2.6 | 114.3 | 12 |
| 125 | 5 | - | - | - | - | - | - |
| 150 | 6 | - | - | - | - | - | - |
| 200 | 8 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | |||||||
SS Butt-Weld KAMLOK Adaptor Type 633FWH-SS
| mm | inch | D1 | S | D2 | L | A |
| 15 | 0.5 | - | - | - | - | - |
| 20 | 0.75 | 26.9 | 1.6 | 32.1 | 57 | 7 |
| 25 | 1 | 33.7 | 2 | 36.7 | 71 | 7 |
| 32 | 1.25 | 42.4 | 2 | 45.5 | 75 | 7 |
| 40 | 1.5 | 48.3 | 2 | 53.4 | 78 | 7 |
| 50 | 2 | 60.3 | 2 | 63 | 90 | 8 |
| 65 | 2.5 | 76.1 | 2.3 | 75.8 | 101 | 10 |
| 80 | 3 | 88.9 | 2.3 | 91.5 | 103 | 10 |
| 100 | 4 | 114.3 | 2.6 | 119.5 | 117 | 12 |
| 125 | 5 | - | - | - | - | - |
| 150 | 6 | - | - | - | - | - |
| 200 | 8 | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
SS Butt- Weld DIN2828 KAMLOK Coupler Type 633BWD-SS
| mm | inch | A | B | 0C | D | 0E |
| 15 | 0.5 | 116 | 54 | 41 | 2.3 | 21.3 |
| 20 | 0.75 | 116 | 54 | 41 | 2.3 | 26.9 |
| 25 | 1 | 125 | 61 | 47 | 2.6 | 33.7 |
| 32 | 1.25 | 181 | 83 | 58 | 2.6 | 42.4 |
| 40 | 1.5 | 189 | 91 | 65 | 2.6 | 48.3 |
| 50 | 2 | 199 | 101 | 75 | 2.9 | 60.3 |
| 65 | 2.5 | 210 | 112 | 90 | 2.9 | 76.1 |
| 80 | 3 | 254 | 138 | 108 | 3.2 | 88.9 |
| 100 | 4 | 282 | 166 | 140 | 3.6 | 114.3 |
| 125 | 5 | - | - | - | - | - |
| 150 | 6 | - | - | - | - | - |
| 200 | 8 | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
SS Butt-Weld DIN2828 KAMLOK Adaptor Type 633FWD-SS
| mm | inch | 0H | L1 | L2 | A | B |
| 15 | 0.5 | 32 | 59 | 30 | 2.3 | 21.3 |
| 20 | 0.75 | 32 | 59 | 30 | 2.3 | 26.9 |
| 25 | 1 | 37 | 72 | 35 | 2.6 | 33.7 |
| 32 | 1.25 | 45 | 80 | 40 | 2.6 | 42.4 |
| 40 | 1.5 | 53 | 79 | 42 | 2.6 | 48.3 |
| 50 | 2 | 63 | 90 | 48 | 2.9 | 60.3 |
| 65 | 2.5 | 76 | 102 | 50 | 2.9 | 76.1 |
| 80 | 3 | 92 | 103 | 52 | 3.2 | 88.9 |
| 100 | 4 | 120 | 119 | 53 | 3.6 | 114.3 |
| 125 | 5 | - | - | - | - | - |
| 150 | 6 | - | - | - | - | - |
| 200 | 8 | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
DIN PN 10/16 Flanged SS KAMLOK Coupler Type 633LBS-SS DIN (PN 25 on request)
| mm | inch | 0K | 0D | h | n | 0d |
| 15 | 0.5 | 65 | 95 | 14 | 4 | 14 |
| 20 | 0.75 | 75 | 105 | 16 | 4 | 14 |
| 25 | 1 | 85 | 115 | 16 | 4 | 14 |
| 32 | 1.25 | 100 | 140 | 16 | 4 | 18 |
| 40 | 1.5 | 110 | 150 | 16 | 4 | 18 |
| 50 | 2 | 125 | 165 | 18 | 4 | 18 |
| 65 | 2.5 | 145 | 185 | 18 | 4 | 18 |
| 80 | 3 | 160 | 200 | 20 | 8 | 18 |
| 100 | 4 | 180 | 220 | 20 | 8 | 19 |
| 125 | - | - | - | - | - | - |
| 150 | - | - | - | - | - | - |
| 200 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
DIN PN 10/16 Flanged SS KAMLOK Adaptor Type 633LAS-SS DIN (PN 25 on request)
| mm | inch | 0K | 0D | h | n | 0d |
| 15 | 0.5 | 65 | 95 | 14 | 4 | 14 |
| 20 | 0.75 | 75 | 105 | 16 | 4 | 14 |
| 25 | 1 | 85 | 115 | 16 | 4 | 14 |
| 32 | 1.25 | 100 | 140 | 16 | 4 | 18 |
| 40 | 1.5 | 110 | 150 | 16 | 4 | 18 |
| 50 | 2 | 125 | 165 | 18 | 4 | 18 |
| 65 | 2.5 | 145 | 185 | 18 | 4 | 18 |
| 80 | 3 | 160 | 200 | 20 | 8 | 18 |
| 100 | 4 | 180 | 220 | 20 | 8 | 19 |
| 125 | - | - | - | - | - | - |
| 150 | - | - | - | - | - | - |
| 200 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
150 lbs ANSI Flanged SS KAMLOK Coupler Type 633LBS-SS ANSI
| mm | inch | 0K | 0D | h | n | 0d |
| 15 | 0.5 | 60.5 | 88.9 | 11.2 | 4 | 15.7 |
| 20 | 0.75 | 69.9 | 98.6 | 12.7 | 4 | 15.7 |
| 25 | 1 | 79.2 | 108 | 14.2 | 4 | 15.7 |
| 32 | 1.25 | 88.9 | 117.3 | 15.7 | 4 | 15.7 |
| 40 | 1.5 | 98.6 | 127 | 17.5 | 4 | 15.7 |
| 50 | 2 | 102.7 | 152.4 | 19.1 | 4 | 19.1 |
| 65 | 2.5 | - | - | - | - | - |
| 80 | 3 | 152.4 | 190.5 | 23.9 | 4 | 19.1 |
| 100 | 4 | 190.5 | 228.6 | 23.9 | 8 | 19.1 |
| 125 | - | - | - | - | - | - |
| 150 | - | - | - | - | - | - |
| 200 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
150 lbs ANSI Flanged SS KAMLOK Coupler Type 633LBS-SS ANSI
| mm | inch | 0K | 0D | h | n | 0d |
| 15 | 0.5 | 60.5 | 88.9 | 11.2 | 4 | 15.7 |
| 20 | 0.75 | 69.9 | 98.6 | 12.7 | 4 | 15.7 |
| 25 | 1 | 79.2 | 108 | 14.2 | 4 | 15.7 |
| 32 | 1.25 | 88.9 | 117.3 | 15.7 | 4 | 15.7 |
| 40 | 1.5 | 98.6 | 127 | 17.5 | 4 | 15.7 |
| 50 | 2 | 102.7 | 152.4 | 19.1 | 4 | 19.1 |
| 65 | 2.5 | - | - | - | - | - |
| 80 | 3 | 152.4 | 190.5 | 23.9 | 4 | 19.1 |
| 100 | 4 | 190.5 | 228.6 | 23.9 | 8 | 19.1 |
| 125 | - | - | - | - | - | - |
| 150 | - | - | - | - | - | - |
| 200 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||

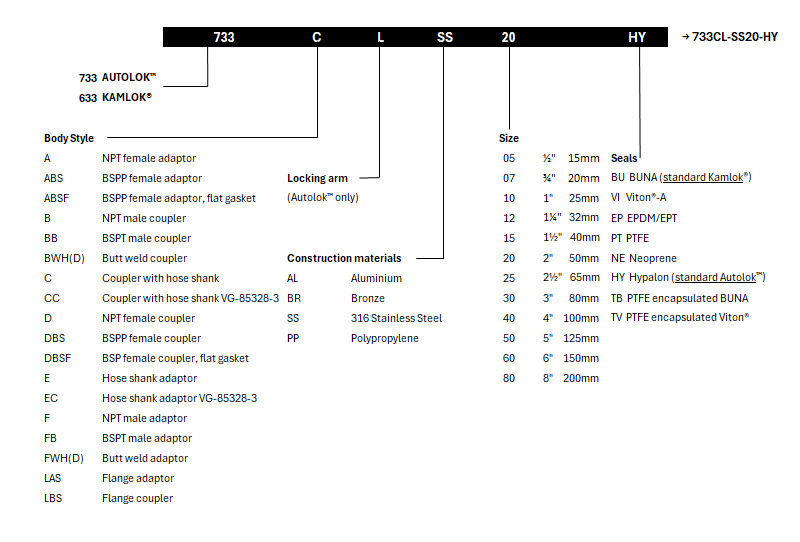

Ordering Guide
Downloads
-
Kamlok Autolok Brochure
Features & Benefits
- The Only Original
- Long-life reliability specifically designed and manufactured with the highest alloys and gasket materials to endure the harshest environments
- Twin-Kam™ arms, prevent unintentional arm release beyond 45º
- Added protection, Twin-Kam™ arm special detent secure arms in position to prevent accidental uncoupling
- GFL™ Guaranteed For Life cam arms
- Cam and Groove design provides reliable smooth operation in 360º orientation
- Ease of use Cam and Groove design offers smooth coupling and uncoupling
- Resistant to vibrations
- Spring-Ring™ finger-rings, rings will not get trapped under the arms so opening and closing is quick and easy
- Heavy-duty construction
- Available in Aluminium; Bronze; Polypropylene and 316 Stainless Steel
- Arm pins standard in corrosion resistant stainless steel
- Best value, built to the highest quality standards with unique ease of use and safety features makes OPW Kamlok® the best overall value in the market
Arm Locked
With one arm locked down firmly and the other arm in the unique 45º detent position, adaptor remains secure in coupler.
One Arm Fully Released
With one arm fully released and the other arm in the detent position, slight leakage may occur at full pressure.
Both Arms Fully Released
With both arms in the detent position the adaptor remains secure in coupler.
The line pressure increases resistance to open arms beyond this point, in fact it pushes the cam arms to close again.
Standard Configuration
- Finger rings are standard on sizes from 25mm / 1 inch and up
- DIN SS Kamlok equipped with finger rings on all sizes
AL = aluminium BR = bronze SS = 316 Stainless Steel PP = polypropylene
633ABS Adaptor (BSPP)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | • |
| PP | – | • | • | – | • | • | – | • | – | – | – | – |
633DBS Coupler (BSPP)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | • |
| PP | – | • | • | – | – | • | – | • | – | – | – | – |
633ABSF Adaptor (BSPP)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | – | • | • | • | • | • | – | • | – | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
633DBSF Coupler (BSPP)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | – | • | • | • | • | • | – | • | – | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
633FB Adaptor (BSPT)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | - |
| PP | - | • | • | - | • | • | - | • | - | - | - | - |
633BB Coupler (BSPT)
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | - |
| PP | - | • | • | - | • | • | - | • | - | - | - | - |
663E Adaptor
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | • | • | • | • | • | • | • | • | • | • | • |
| BR | – | • | • | • | • | • | • | • | • | • | • | • |
| SS | – | • | • | • | • | • | • | • | • | • | • | – |
| PP | – | • | • | – | • | • | – | • | – | – | – | – |
633C Coupler
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | • | • | • | • | • | • | • | • | • | • | • |
| BR | – | • | • | • | • | • | • | • | • | • | • | • |
| SS | – | • | • | • | • | • | • | • | • | • | • | – |
| PP | – | • | • | – | • | • | – | • | – | – | – | – |
633EC Adaptor
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | – | – | – | – | – | – | – | – |
| BR | – | – | – | – | – | – | – | – | – | – | – | – |
| SS | – | – | • | – | • | • | – | • | – | – | – | – |
| PP | – | – | – | – | – | – | – | – | – | – | – | – |
634A plug
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | • |
| PP | – | – | • | – | • | • | – | • | – | – | – | – |
634B cap
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | • | • | • | • | • | • | • | • | • | • | • | • |
| BR | • | • | • | • | • | • | • | • | • | • | • | • |
| SS | • | • | • | • | • | • | • | • | • | • | • | • |
| PP | – | – | • | – | • | • | – | • | – | – | – | – |
634BK cap
| mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| inch | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 5 | 6 | 8 |
| AL | – | – | – | – | • | • | • | • | • | – | – | – |
| BR | – | – | – | – | • | • | • | • | • | – | – | – |
| SS | – | – | – | – | • | • | • | • | • | – | – | – |
| PP | – | – | – | – | • | • | – | • | – | – | – | – |
SS Butt-Weld KAMLOK Coupler Type 633BWH-SS
| mm | inch | A | B | 0C | D | 0E | F |
| 15 | 0.5 | 116 | 54 | 41 | 1.6 | 21.3 | 7 |
| 20 | 0.75 | 116 | 54 | 41 | 1.6 | 26.9 | 7 |
| 25 | 1 | 125 | 61 | 47 | 2 | 33.7 | 7 |
| 32 | 1.25 | 181 | 83 | 58 | 2 | 42.4 | 7 |
| 40 | 1.5 | 189 | 91 | 65 | 2 | 48.3 | 7 |
| 50 | 2 | 199 | 101 | 75 | 2 | 60.3 | 8 |
| 65 | 2.5 | 210 | 112 | 90 | 2.3 | 76.1 | 10 |
| 80 | 3 | 254 | 138 | 108 | 2.3 | 88.9 | 10 |
| 100 | 4 | 282 | 166 | 140 | 2.6 | 114.3 | 12 |
| 125 | 5 | - | - | - | - | - | - |
| 150 | 6 | - | - | - | - | - | - |
| 200 | 8 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | |||||||
SS Butt-Weld KAMLOK Adaptor Type 633FWH-SS
| mm | inch | D1 | S | D2 | L | A |
| 15 | 0.5 | - | - | - | - | - |
| 20 | 0.75 | 26.9 | 1.6 | 32.1 | 57 | 7 |
| 25 | 1 | 33.7 | 2 | 36.7 | 71 | 7 |
| 32 | 1.25 | 42.4 | 2 | 45.5 | 75 | 7 |
| 40 | 1.5 | 48.3 | 2 | 53.4 | 78 | 7 |
| 50 | 2 | 60.3 | 2 | 63 | 90 | 8 |
| 65 | 2.5 | 76.1 | 2.3 | 75.8 | 101 | 10 |
| 80 | 3 | 88.9 | 2.3 | 91.5 | 103 | 10 |
| 100 | 4 | 114.3 | 2.6 | 119.5 | 117 | 12 |
| 125 | 5 | - | - | - | - | - |
| 150 | 6 | - | - | - | - | - |
| 200 | 8 | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
SS Butt- Weld DIN2828 KAMLOK Coupler Type 633BWD-SS
| mm | inch | A | B | 0C | D | 0E |
| 15 | 0.5 | 116 | 54 | 41 | 2.3 | 21.3 |
| 20 | 0.75 | 116 | 54 | 41 | 2.3 | 26.9 |
| 25 | 1 | 125 | 61 | 47 | 2.6 | 33.7 |
| 32 | 1.25 | 181 | 83 | 58 | 2.6 | 42.4 |
| 40 | 1.5 | 189 | 91 | 65 | 2.6 | 48.3 |
| 50 | 2 | 199 | 101 | 75 | 2.9 | 60.3 |
| 65 | 2.5 | 210 | 112 | 90 | 2.9 | 76.1 |
| 80 | 3 | 254 | 138 | 108 | 3.2 | 88.9 |
| 100 | 4 | 282 | 166 | 140 | 3.6 | 114.3 |
| 125 | 5 | - | - | - | - | - |
| 150 | 6 | - | - | - | - | - |
| 200 | 8 | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
SS Butt-Weld DIN2828 KAMLOK Adaptor Type 633FWD-SS
| mm | inch | 0H | L1 | L2 | A | B |
| 15 | 0.5 | 32 | 59 | 30 | 2.3 | 21.3 |
| 20 | 0.75 | 32 | 59 | 30 | 2.3 | 26.9 |
| 25 | 1 | 37 | 72 | 35 | 2.6 | 33.7 |
| 32 | 1.25 | 45 | 80 | 40 | 2.6 | 42.4 |
| 40 | 1.5 | 53 | 79 | 42 | 2.6 | 48.3 |
| 50 | 2 | 63 | 90 | 48 | 2.9 | 60.3 |
| 65 | 2.5 | 76 | 102 | 50 | 2.9 | 76.1 |
| 80 | 3 | 92 | 103 | 52 | 3.2 | 88.9 |
| 100 | 4 | 120 | 119 | 53 | 3.6 | 114.3 |
| 125 | 5 | - | - | - | - | - |
| 150 | 6 | - | - | - | - | - |
| 200 | 8 | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
DIN PN 10/16 Flanged SS KAMLOK Coupler Type 633LBS-SS DIN (PN 25 on request)
| mm | inch | 0K | 0D | h | n | 0d |
| 15 | 0.5 | 65 | 95 | 14 | 4 | 14 |
| 20 | 0.75 | 75 | 105 | 16 | 4 | 14 |
| 25 | 1 | 85 | 115 | 16 | 4 | 14 |
| 32 | 1.25 | 100 | 140 | 16 | 4 | 18 |
| 40 | 1.5 | 110 | 150 | 16 | 4 | 18 |
| 50 | 2 | 125 | 165 | 18 | 4 | 18 |
| 65 | 2.5 | 145 | 185 | 18 | 4 | 18 |
| 80 | 3 | 160 | 200 | 20 | 8 | 18 |
| 100 | 4 | 180 | 220 | 20 | 8 | 19 |
| 125 | - | - | - | - | - | - |
| 150 | - | - | - | - | - | - |
| 200 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
DIN PN 10/16 Flanged SS KAMLOK Adaptor Type 633LAS-SS DIN (PN 25 on request)
| mm | inch | 0K | 0D | h | n | 0d |
| 15 | 0.5 | 65 | 95 | 14 | 4 | 14 |
| 20 | 0.75 | 75 | 105 | 16 | 4 | 14 |
| 25 | 1 | 85 | 115 | 16 | 4 | 14 |
| 32 | 1.25 | 100 | 140 | 16 | 4 | 18 |
| 40 | 1.5 | 110 | 150 | 16 | 4 | 18 |
| 50 | 2 | 125 | 165 | 18 | 4 | 18 |
| 65 | 2.5 | 145 | 185 | 18 | 4 | 18 |
| 80 | 3 | 160 | 200 | 20 | 8 | 18 |
| 100 | 4 | 180 | 220 | 20 | 8 | 19 |
| 125 | - | - | - | - | - | - |
| 150 | - | - | - | - | - | - |
| 200 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
150 lbs ANSI Flanged SS KAMLOK Coupler Type 633LBS-SS ANSI
| mm | inch | 0K | 0D | h | n | 0d |
| 15 | 0.5 | 60.5 | 88.9 | 11.2 | 4 | 15.7 |
| 20 | 0.75 | 69.9 | 98.6 | 12.7 | 4 | 15.7 |
| 25 | 1 | 79.2 | 108 | 14.2 | 4 | 15.7 |
| 32 | 1.25 | 88.9 | 117.3 | 15.7 | 4 | 15.7 |
| 40 | 1.5 | 98.6 | 127 | 17.5 | 4 | 15.7 |
| 50 | 2 | 102.7 | 152.4 | 19.1 | 4 | 19.1 |
| 65 | 2.5 | - | - | - | - | - |
| 80 | 3 | 152.4 | 190.5 | 23.9 | 4 | 19.1 |
| 100 | 4 | 190.5 | 228.6 | 23.9 | 8 | 19.1 |
| 125 | - | - | - | - | - | - |
| 150 | - | - | - | - | - | - |
| 200 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
150 lbs ANSI Flanged SS KAMLOK Coupler Type 633LBS-SS ANSI
| mm | inch | 0K | 0D | h | n | 0d |
| 15 | 0.5 | 60.5 | 88.9 | 11.2 | 4 | 15.7 |
| 20 | 0.75 | 69.9 | 98.6 | 12.7 | 4 | 15.7 |
| 25 | 1 | 79.2 | 108 | 14.2 | 4 | 15.7 |
| 32 | 1.25 | 88.9 | 117.3 | 15.7 | 4 | 15.7 |
| 40 | 1.5 | 98.6 | 127 | 17.5 | 4 | 15.7 |
| 50 | 2 | 102.7 | 152.4 | 19.1 | 4 | 19.1 |
| 65 | 2.5 | - | - | - | - | - |
| 80 | 3 | 152.4 | 190.5 | 23.9 | 4 | 19.1 |
| 100 | 4 | 190.5 | 228.6 | 23.9 | 8 | 19.1 |
| 125 | - | - | - | - | - | - |
| 150 | - | - | - | - | - | - |
| 200 | - | - | - | - | - | - |
| <---------------Dimensions in MM-------------------> | ||||||
Ordering Guide
Downloads
-
Kamlok Autolok Brochure
Need help? Contact support.
Customer Support
Reach Out to Our Customer Support Team for Prompt Assistance and Answers to Any Questions or Concerns You May Have
Technical Support
Contact Us for Technical Support on Your Projects and Resolving Any Technical Issues You Encounter
Contact a Distributor
Locate a Nearby Distributor for Replacement Parts
Product Enquiry
Product Information request form to find the right solution
OPW CORPORATE HEADQUARTERS
9393 Princeton-Glendale Road
Hamilton, Ohio, USA 45011
Copyright © 2026 OPW, A Dover Company, and its affiliated entities.
