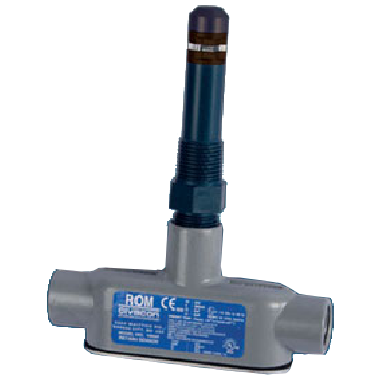

2-Wire Optic Bottom Sensors - Model 5000E
2-Wire Optic Bottom Sensors - Model 5000E
The CIVACON’S 2-Wire Optic Bottom Sensors are designed for compartment empty detection of liquid petroleum products. Not only are they instantly permissive and specially designed for optimal communication with our Rack Monitors (conforming to EN13922), but they are also compatible with all other brands of Rack Monitors which conforms to EN13922 standards.
- In accordance with: - ATEX - API RP 1004
- Certified for use in zone 0
- Intrinsically safe signals
- Instant permissive signal (no warm up time)
- Continuously checking of system operation such as wiring, sockets and sensor itself
- Temperature range 40C° to +70°C
- Immediate system shutdown (250 ms) in case of compartment ‘wet’ detections
- Immediate re-permit in case of compartment ‘dry’ detection
- Approvals ATEX + IECeX & FM
Bottom Sensor
| Zone specification | Zone 0 |
| Working Temp. | -40°C to +70°C |
| Signals | Intrinsically safe |
| Weight | 320 g |
| Art. number | Description |
|---|---|
| 4103-series | 6-Pin Optical Socket |
| 4403-series | 10-Pin Optical Socket |
| 2100E-L30 | 30m 5-Wire straight cable conform EN13922 |
| EL00001 | Ground Bolt |
| K1-1112-series | 5-Wire optic overfill prevention sensor |
| 1551-series | 2-Wire optic quick start overfill prevention sensor |
| 5350E | 2-Wire optic overfill sensor (replaces 1551-0018B) |
| 5650E | 2-Wire optic overfill sensor (replaces 1051-0018B) |
| 3205E | On-board Monitoring System |
| 7215-7215 | 30m 10-Wire straight cable, 45 meter (150 FT) |
| Art. number | Description |
|---|---|

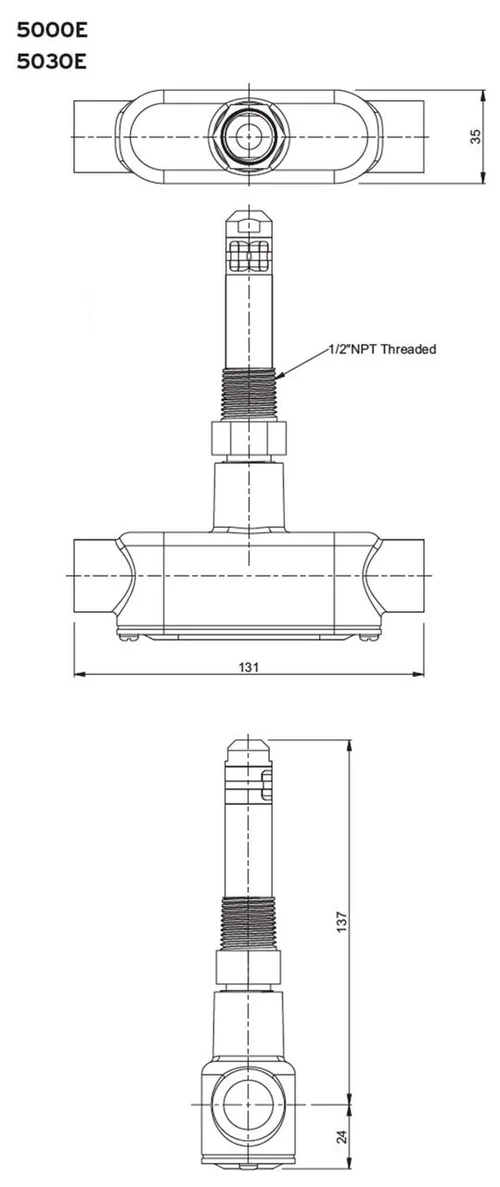

| 5000E | Optic sensor, rom retain sensor with bottom inline housing |
-
2 Wire Optic Bottom Sensors Data Sheet
