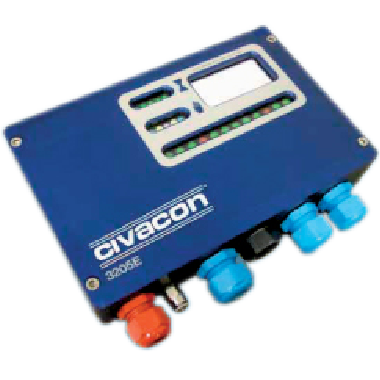

Retain Overfill Monitoring - Model 3205E

• In accordance with ATEX
• Compartment empty and overfill detection inn one unit
• Compatible with all industry standard sensors and rack monitors
• After system alerts, loading cannot proceed without activation of the reset circuit
• Reset circuit for bottom sensors only
• Bottom retain sensor override timer cancels override timing when plug is removed from socket
• ROMII Plus monitor automatically closes bottom valves for additional security if connected.
• Support for up to 8 compartment tankers using 2-wire optic overfill and bottom sensors
• Support for up to 12 compartments using 5-wire optic overfill sensors
• Number of installed sensors automatically configured at installation
• Timer with progress indicator infrared function key
• Individual LED indication per input device
• LED indication per compartment and status symbols on display
• LED socket connection status for proper connection assurance
• Working temperature from -40°C to + 70°C
