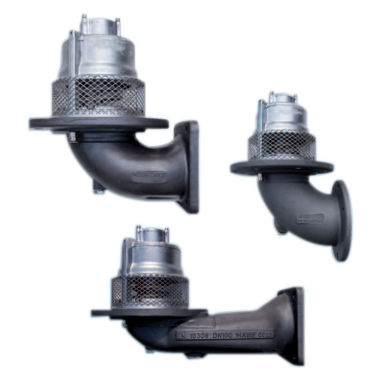

Bottom Valves - EURO-Line Series

CIVACON's EURO 100-Line Bottom Valves are designed for increased safety, durability and service performance. The EURO 1OO-Line high flow bottom valves are available as Compact 100-1 series, Super Compact 100-2 series and 4" TIMA or TW 100-3 series and T-Shape 100-4 series.

Request More Information

Features & Benefits

All EUR0100-Line Bottom Valves in accordance with EN13308 (Non Pressure Balanced), EN13316 (Pressure Balanced), ADR and AF1 RP 1004
Available models: Compact, Super Compact and 4" TIMA or TW outlet
Pressure balanced or non pressure balanced operation
Sequenced or non-sequenced operation
4" or DN100 connection
Lightweight pressure die-cast for improved strength and reduced weight
Hard anodized and stainless steel internals
Stainless steel filter/strainer
Shear Groove to prevent spillage in case of an accident
Superior flow rate:
- up to 2.500 litres/minute
- no moving parts in the flow path
Viton GLFT seals
Valve service inside of the compartment
Manually openable in case of emergency

Model Numbers

EURO100-1 Series
EURO100-2 Series
EURO100-3 Series
EURO100-4 series

EURO-Line Bottom Valves Data Sheet

Download PDF

Read in browser
