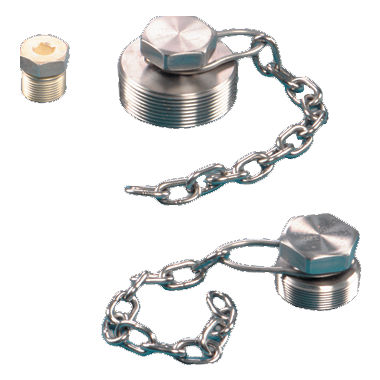

Pipe Plugs and Chain Assemblies
Caps, Plugs & Chains
| NPT | A (INCHES) | STOCK CHAINS | HEX ACROSS FLATS (IN) | STEEL | 304 SS | 316 SS | NITRONIC 60 | 416 SS | MONEL | |
| SIZE (IN) | LENGTH (IN) | PART NO. | PART NO. | PART NO. | PART NO. | PART NO. | PART NO. | |||
| 1/16" | 7/16 | #18 | 6" | 5/16 | 16-CS | 16-SS | 16-MO | 16-N60 | 16-CH | 16-ML |
| 1/8" | 11/16 | #18 | 6" | 1/2 | 18-CS | 18-SS | 18-MO | 18-N60 | 18-CH | 18-ML |
| 1/8" W/#54 HOLE | 11/16 | #18 | 6" | 1/2 | 19-CS | 19-SS | 19-MO | 19-N60 | 19-CH | 19-ML |
| 1/4" | 13/16 | #18 | 6" | 5/8 | 20-CS | 20-SS | 20-MO | 20-N60 | 20-CH | 20-ML |
| 1/4" W/#54 HOLE | 13/16 | #18 | 6" | 5/8 | 21-CS | 21-SS | 21-MO | 21-N60 | 21-CH | 21-ML |
| 3/8" | 13/16 | 1/8 | 6" | 11/16 | 17-CS | 17-SS | 17-MO | 17-N60 | 17-CH | 17-ML |
| 3/8" | 1 7/16 | 3/16 | 6" | 11/16 | 17-101-CS | 17-101-SS | 17-101-MO | 17-101-N60 | 17-101-CH | 17-101-ML |
| 1/2" | 1 3/8 | 3/16 | 6" | 7/8 | 22-CS | 22-SS | 22-MO | 22-N60 | 22-CH | 22-ML |
| 3/4" | 1 1/2 | 3/16 | 6" | 1 1/16 | 23-CS | 23-SS | 23-MO | 23-N60 | 23-CH | 23-ML |
| 1" | 2 | 3/16 | 6" | 1 3/4 | 24-CS | 24-SS | 24-MO | 24-N60 | 24-CH | 24-ML |
| 1 1/4" | 2 1/4 | 3/16 | 12" | 2 | 25-CS | 25-SS | 25-MO | 25-N60 | 25-CH | 25-ML |
| 1 1/2" | 2 1/4 | 3/16 | 12" | 1 1/8 SQ | 26-CS | 26-SS | 26-MO | 26-N60 | 26-CH | 26-ML |
| 1 1/2" | 2 5/16 | 3/16 | 12" | 2 | 26-1-CS | 261-S-SS | 26-1-MO | 26-1-N60 | 26-1-CH | 26-1-ML |
| 2" | 1 13/16 | 3/16 | 12" | 2 | 201-CS | 201-SS | 201-MO | 201-N60 | 201-CH | 201-ML |
| 2" W/SEAL HOLE 1/2" | 2 5/16 | 3/16 | 12" | 1 3/4 | 202-CS | 202-SS | 202-MO | 202-N60 | 202-CH | 202-ML |
| 2" | 2 1/16 | 3/16 | 12" | 2 | 203-CS | 203-SS | 203-MO | 203-N60 | 203-CH | 203-ML |
| 2 1/2" | 2 1/4 | 3/16 | 12" | 2 | 251-CS | 251-SS | 251-MO | 251-N60 | 251-CH | 251-ML |
| 3" | 2 1/4 | 3/16 | 12" | 2 | 301-CS | 301-SS | 301-MO | 301-N60 | 301-CH | 301-ML |
| 3 1/2" | 2 1/2 | 3/16 | 12" | 2 | 351-CS | 351-SS | 351-MO | 351-N60 | 351-CH | 351-ML |
| 4" | 2 1/2 | 3/16 | 12" | 2 | 401-CS | 401-SS | 401-MO | 401-N60 | 401-CH | 401-ML |
| 6" | 2 1/2 | 3/16 | 12" | 3 1/2 | 35-CS | 35-SS | 35-MO | 35-N60 | 35-CH | 35-ML |
| 7" | 2 3/4 | 3/16 | 12" | 3 1/2 | 37-CS | 37-SS | 37-MO | 37-N60 | 37-CH | 37-ML |
