Gauging Devices

Midland Gaging Devices are the industry standard, with over 40,000 currently in use, providing accurate level monitoring and assuring complete loading and unloading of liquids. The devices’ small mounting flange size reduces space requirements, making it easier to locate other equipment on the manway plate and allow for emergency capping. Our 40+ years of historical data assures precise replacement of older parts, avoiding recalibration or replacement of the entire Gaging Device. Plus, you can retrofit existing Gaging Devices with a Midland Tank Car Loading System to maintain optimum load levels while reducing required fill time and allow remote liquid level management.

Gauge Device Request Form

Order Midland Gauge Devices directly from a computer or mobile device.

BEGIN A REQUEST

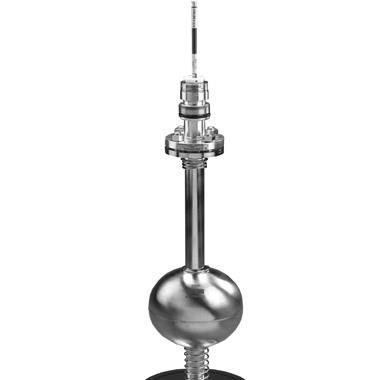

Midland Gaging Devices feature superior component engineering, resulting in long, carefree, accurate operation. Graphite rods, a stainless steel specific gravity correction nut and cap, and zinc-plated body and flange all contribute to delivering long-term resistance to corrosion and fast, easy gage reading. The lightweight float provides superior reliability and accuracy with low specific gravity applications such as LPG or Butane.

Features & Benefits

The industry standard in providing accurate level monitoring to allow for maximum loads and prevent overloading of tank cars that are closed loaded
Standard 3-1/4" bolt circle flange reduces space requirements, making it easier to locate other equipment on the manway plate
Body design provides easier access to bolting
Tack-welded chain link is provided for easy securing of cap to body
Stainless steel cap eliminates rusting – knurled grip allows for easier loosening and tightening
Graphite gage rod is completely sealed to improve durability and resistance to permeation from Glycol solutions
Zinc-plated body and flange minimizes corrosion and prevents galling between body and cap of threads
Top spring cushions float, minimizing costly repairs to floats damaged by liquid surges in the tank
Lightweight float provides superior performance in the widest range of specific gravity applications
Serial number is printed on the gage body, gage rod, and adjustment nut for easy identification

Top Transfer Angle Valve Models / Drawings

B-612

Download PDF

Read in browser
B-612-S

Download PDF

Read in browser

Sales Literature

Forms

Below are the forms needed to submit gaging device and rod replacement orders. Please download the appropriate form, complete in full and then submit, along with your PO, to your Customer Service representative.

IOMs

B-612 Magnetic Gaging Device IOM

Features & Benefits

The industry standard in providing accurate level monitoring to allow for maximum loads and prevent overloading of tank cars that are closed loaded
Standard 3-1/4" bolt circle flange reduces space requirements, making it easier to locate other equipment on the manway plate
Body design provides easier access to bolting
Tack-welded chain link is provided for easy securing of cap to body
Stainless steel cap eliminates rusting – knurled grip allows for easier loosening and tightening
Graphite gage rod is completely sealed to improve durability and resistance to permeation from Glycol solutions
Zinc-plated body and flange minimizes corrosion and prevents galling between body and cap of threads
Top spring cushions float, minimizing costly repairs to floats damaged by liquid surges in the tank
Lightweight float provides superior performance in the widest range of specific gravity applications
Serial number is printed on the gage body, gage rod, and adjustment nut for easy identification
