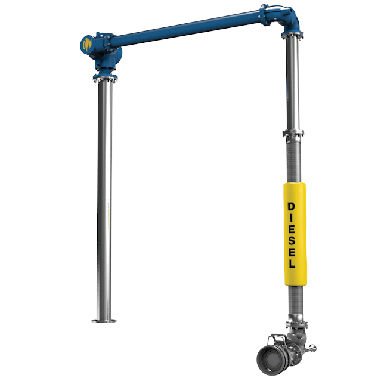

Compact Torsion Swivel (CTS) Hose Loader

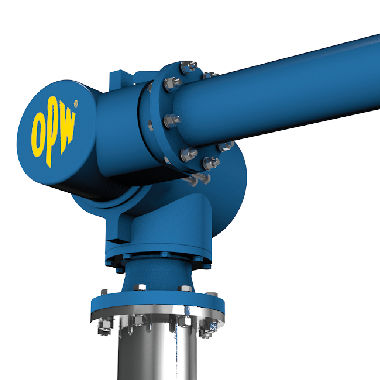

OPW Compact Torsion Spring Swivel (CTS) Bottom Loading Arms are ideal to replace loading arms in situations where tight clearances are required. The CTS Loader features a fully integrated internal torsion spring for a streamlined profile. Ideal for replacing existing FMC TL Loaders or any application where space is a premium. The CTS has been engineered to be easier to adjust and maintain.
| Materials | Carbon Steel/Aluminum |
|---|---|
| Seals | Lo Temp Fluorocarbon |
| Working Pressure | 125 psi (862 kPa) |
| Test Pressure | 188 psi (1296 kPa) |
| Operating Temp | -20° to 140° |
| Up/Down Angular Movement | +45° to -15° (from horizontal) |
| Typical Horizontal Spacing | 11"(279mm) |
| Typical Vertical Spacing | 12"(305mm) |
| Typical Reach (radius) | 50" to 70" (1270mm to 1778mm) |
| Typical No. of arms per bay | up to 5 |
Features
- Fully Integral Torsion Spring
- Integral Upward, Downward Travel Stops
- Carbon Steel/Aluminum Construction
- Lo Temp Fluorocarbon Seals
- Braided Stainless Steel or Rackmaster Composite Hose
- Available in Left-Hand, Right-Hand, Upfeed, Downfeed Configurations
- 360° Rotation Allows Loading on Both Sides of Loading Bay
- Removable End Cap for Easy Maintenance
Benefits
- Safe, Easy Spring Adjustment
- Ideal for Extremely Tight Riser Spacings
- Horizontal Bearing Module for Added Strength

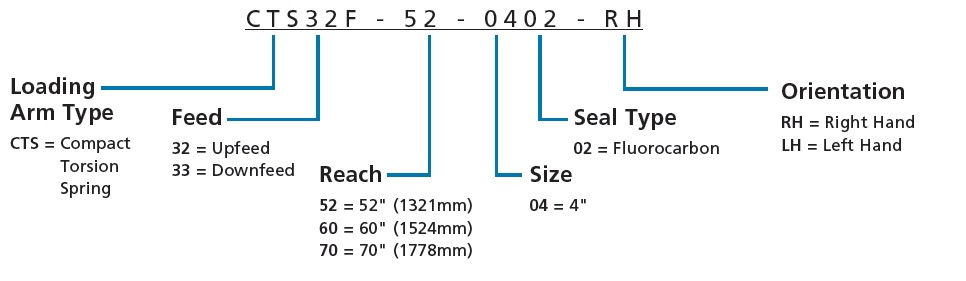

| Drop Spool | 4" Aluminum or Carbon Steel | As Required |
|---|---|---|
| Drop Hose | 4" Rackmaster Composite, 80" OAL, TTMA Flanged Ends | L19080 |
| 4" Braided Stainless Steel, 80" OAL, TTMA Flanged Ends | L19081 | |
| Coupler Swivel | 4" Style 30 (90º) Swivel Joint with Maneuvering Handle | |
| TTMA Flanged ends, Aluminum/ Lo Temp Fluorocarbon | 3635FTH-0402 | |
| Butterfly Valve | 4" Full Flow, Position-Locked Butterfly Valve | LBV450VGL |
| Spacer Spool | 4" Loading Arm Coupler Spool, TTMA Flanged Ends, Aluminum | |
| 6" OAL | VSS4 | |
| Sight Glass | 4" Acrylic Sight Glass, Tempered, Cast Acrylic | BF4-SG-25 |
| API Coupler | 4" API Bottom Loading Coupler | |
| Manual Version: | 1004D3-0402 (Fluorocarbon Seals) | |
| Semi-Automatic Version: | LYNX852 (Fluorocarbon Seals) |
-
