A Frame Loader
A Frame Loader

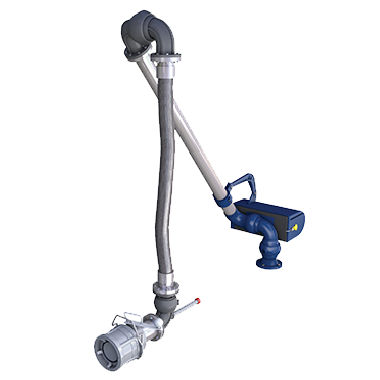

The “A” Frame Loader is a popular loading-arm configurations due to its flexibility, long reach and convenience of use. Commonly used for tank-truck bottom loading, “A” Frame arms can also be used in top-loading/unloading installations. Inlet flange and seamless piping are suitable for handling liquefied petroleum gases, including propane and butane.
- 2”–4” sizes available
- Carbon-Steel, Stainless-Steel and Aluminum options
- Adjusts for elevation/tilting during loading/unloading
- Stores in upright, near-vertical position
- Compact storage envelope allows closer installation proximity
- Low riser mounting heights
- Equipped with dry-disconnect coupling, union or other tight-fill inlet
- Choice of flanged, threaded or all-welded construction
- LPG service arms (LPG-32-F) feature all-welded construction
- Fully customizable
Features/Benefits
- Easy to operate/maneuver
- Eliminates cumbersome hose
- Easily stored away from vehicles
- For multiple product applications, it can be mounted close to another arm
- Can be safely stored to provide for safe clearance of vehicles
- Crossover can easily be achieved
Accessories
Heating – Loading Arms can be fully or partially jacketed for efficient handling of asphalt, molten sulfur, waxes, resins and other products that are highly viscous or tend to solidify at ambient temperatures. Click here for more information on OPW Heated Loading Solutions. Loading Arm Insulation – OPW can provide a Custom Insulation Package designed specifically for your loading arm. Unlike field-applied insulation, these packages are completely removable and reusable, making them the ideal solution for loading arm use. Click here to view Loading Arm Insulation Specifications.
Grounding/Bonding – Suggested for many top/splash loading applications. Available as an option on all Loading Arm designs. Electronic Ground Verification The Civacon model 8030 Ground Verification Monitor is compatible with today’s transport ground systems. The monitor is equipped to provide a permissive signal to allow load rack operation and, if ground is lost, to indicate a non-permissive signal and shut down the loading operation.
Safety Breakaway Coupling Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
Quick & Dry Disconnect Couplings With OPW, you have many options at your disposal for your loading arm termination connections. From the original quick-disconnect Kamlok® coupling to our Epsilon™ dry disconnect coupling, we have a coupling to meet your needs. API Bottom Loading Couplers Commonly used for loading Petroleum products, OPW provides several options for loading your Petroleum transports.
Loading Valves
- 6400 Series Horizontal Valve – OPW Loading Valves are designed to shut off flow without causing shock in the pipeline.
- Adjustable closure rate
- 3” & 4” sizes, Aluminum Construction
- TTMA Flanged connections
- Ball Valves (per application/specification)
Pneumatic Counterbalancing – An alternative to conventional spring balanced loading arm, pneumatics provide the ultimate in loading arm design.
Features/Benefits
- Easy to operate/maneuver
- Eliminates cumbersome hose
- Easily stored away from vehicles
- For multiple product applications, it can be mounted close to another arm
- Can be safely stored to provide for safe clearance of vehicles
- Crossover can easily be achieved
Photos
Library
All OPW Loading Arms can be customized to fit your specific application requirements. We do offer a series of Standard/ optimized solutions that are commonly specified. These optimized selections can be expedited to meet faster delivery requirements. 3” Bottom Loading Arm Ductile Iron/Carbon Steel/ Aluminum Construction 96” Reach M32F-3 Same as above in 4” (M32F-4)
Technical
Click on the title below to view the technical information.
Loading Arm Velocities What size pipe do I need?
Velocity in ft/sec. | Velocity in m/sec. | |||||||||
| GPM | 2" | 3" | 4" | 6" | L/min. | 2" | 3" | 4" | 6" | |
| 100 | 9.6 | 400 | 3.1 | |||||||
| 125 | 12 | 600 | 4.6 | 2.1 | ||||||
| 150 | 14.3 | 800 | 6.1 | 2.8 | ||||||
| 175 | 16.8 | 1000 | 7.7 | 3.5 | 2 | |||||
| 200 | 19.1 | 8.7 | 1250 | 9.6 | 4.4 | 2.5 | ||||
| 225 | 21.5 | 9.8 | 1500 | 5.2 | 3 | |||||
| 250 | 23.9 | 10.8 | 1750 | 6.1 | 3.5 | |||||
| 300 | 13 | 7.5 | 2000 | 7 | 4 | |||||
| 350 | 15.2 | 8.8 | 2250 | 7.9 | 4.5 | 2 | ||||
| 400 | 17.4 | 10.1 | 2500 | 8.7 | 5.1 | 2.2 | ||||
| 450 | 19.6 | 11.4 | 2750 | 5.6 | 2.4 | |||||
| 500 | 21.7 | 12.6 | 5.6 | 3000 | 6.1 | 2.6 | ||||
| 550 | 23.9 | 13.8 | 6.1 | 3250 | 6.6 | 2.9 | ||||
| 600 | 15.1 | 6.6 | 3500 | 7.1 | 3.1 | |||||
| 650 | 16.4 | 7.2 | 3750 | 7.6 | 3.3 | |||||
| 700 | 17.6 | 7.8 | 4000 | 8.1 | 3.6 | |||||
| 750 | 18.9 | 8.3 | 4500 | 9.1 | 4 | |||||
| 800 | 20.2 | 8.9 | 5000 | 4.5 | ||||||
| 900 | 22.7 | 10 | 5500 | 4.9 | ||||||
| 1000 | 11.1 | 6000 | 5.3 | |||||||
| 1200 | 13.3 | 6500 | 5.8 | |||||||
| 1300 | 14.4 | 7000 | 6.2 | |||||||
| 1400 | 15.6 | |||||||||
| 1500 | 16.7 | |||||||||
| 1600 | 17.8 | |||||||||
| 1700 | 18.9 | |||||||||
| 1800 | 20 | |||||||||
| Velocities above 15 ft./sec. (4.6 m/sec.) are generally not recommended - Bold are recommended. | ||||||||||
Loading Arm Swivel/Spring Dimensions
How much clearance will my loading arm require?
Coming soon.
Loading Arm Configurations
Videos
OPW Loading Systems
The transfer of volatile, valuable, potentially toxic fluids requires highly engineered loading arms, couplers and swivels. OPW Engineered Systems is the global leader in the design and manufacture of products that transfer fluids SAFER, CLEANER, FASTER.
Success Story: SI Group
This success story demonstrates how the SI Group Manufacturing prefers OPW Engineered System's Drylock Disconnect Couplers and Adaptors for their outstanding safety features, with virtually no fluid loss and no exposure.
Drylok™ is designed to safely transfer hazardous corrosive, volatile liquids such as acids, solvents and petrochemicals. An interlocking handle averts accidental spills by preventing uncoupling while the valve is open. And, the unit's flat face minimizes fluid loss, further reducing exposure to risk during operation. Drylok™ is ideal for all kinds of hazardous fluids where product loss is a problem, such as high-pressure lines, high flow rates, slurries, and gases.
Downloads
-
Loading-Arm-Design-Form
-
Loading-Arm-configurations
-
3000 Series Installation Operations Manual
-
8000 Series Endura Installation Operations Manual
-
790 Counterbalance Installation Operations Manual
-
890 Series Torsion Spring Counterbalance Installation Operations Manual
-
Loading Arms Installation Operations Manual
-
Terminal Solutions Brochure
-
Terminal Survey Form
-
Folleto Soluciones Totales Para Terminales (En Español)
-
Hoja de Datos Estándar para Carga por Debajo - Español
-
Bottom Unloading Rail Layout Form
-
Tank Truck Bottom Loading Layout Form
