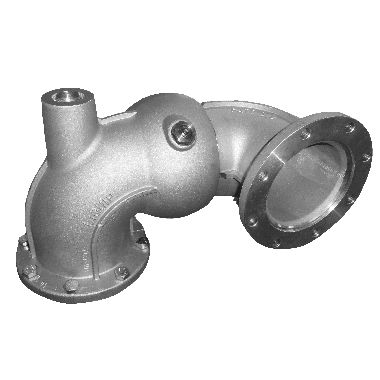

Liquip Velvet Touch MK2 Balance Assembly
The Velvet Touch MK2 Balance Assembly has been designed for use with bottom-loading arms in petrochemical-distribution depots. The MK2 features horizontal-plane swivel capability that allows 360° rotation of the bottom-loading arm and easy coverage of the width of a standard API envelope. The vertical-plane swivel allows movement 15° above and below horizontal to satisfy various coupler-height requirements while working in conjunction with twin lift-O-mat struts, which minimizes the amount of effort required to position the API coupler.

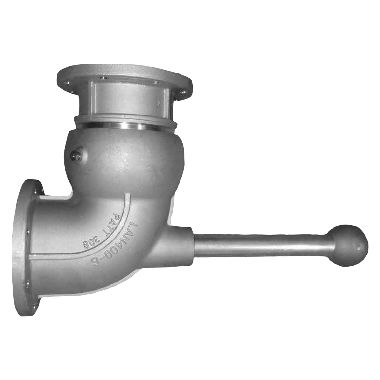

Liquip Coupling Swivels for Bottom Loading Arms
Liquip 100-mm (4") VNC-A4VG and VNI-4AVG Coupling Swivels have been designed specifically for loading applications and are an integral part of many terminal applications.
- VNC-A4VG Coupling Swivel: rotates 360 degrees in the horizontal plane
- VNI-A4VG Coupling Swivel: rotates 180 degrees so loading coupler swings in and out relative to tanker adaptors
Features & Benefits
- Balance assembly bolts onto the flange, reducing the amount of product inlet pipework needed at loading depots
- Horizontal spool is bolted onto the outlet flange of the balance assembly
- Precise balancing of the arm is achieved by repositioning the bottom of the struts for course adjustment
- Worm-drive screw at the top of the struts enhances fine-tuning capabilities
- Adjustable up/down stop is integrated into the balance assembly to ensure the struts do not reach their limit while keeping arm movement clear of obstructions, such as roofing
| Mounting | Base flange is 4" ANSI 150 raised face flange. Outlet flange is 100mm (4") TTMA pattern. |
|---|---|
| Technical Data |
|
| Working pressure | 1,000 kPa (145 PSI) |
| Test pressure | 1,500 kPa (218 PSI) |
| Weight | 60 kg (132lb) |
| Operating temperature | -20° to +80°C (-4° to +176°F) for EPDM & Viton B70 grade -40° to +60°C (-40° to +140°F) for Viton GFLT grade |
| Associated Equipment | See Velvet Touch loading arm systems. |
* Note: The nature of Teflon is that it is unyielding but easily scratched; therefore the slightest damage can lead to weeps particularly where clamping force is provided by a spring which is necessarily limited in force. However the use of Teflon cannot be avoided because of its outstanding chemical resistance. Liquip guarantee the sealing of all new products and test all production prior to dispatch. Following installation of the equipment by the Purchaser it is essential that the valve be kept perfectly clean, any test liquids be perfectly clean and no tools be allowed to touch the Teflon seals. It is not uncommon for valves to exhibit small weeps once in service with commercial-quality liquids.
Features & Benefits
- Balance assembly bolts onto the flange, reducing the amount of product inlet pipework needed at loading depots
- Horizontal spool is bolted onto the outlet flange of the balance assembly
- Precise balancing of the arm is achieved by repositioning the bottom of the struts for course adjustment
- Worm-drive screw at the top of the struts enhances fine-tuning capabilities
- Adjustable up/down stop is integrated into the balance assembly to ensure the struts do not reach their limit while keeping arm movement clear of obstructions, such as roofing
Ordering Information
- MK2 balance assembly with GFLT seals (typcially p/n VNB-I4VG or VNBL-I4VG)
- Gas struts.
- Choose 2800N strength (p/n L4416), 5200N strength (p/n L3008), or (1) of each strength
- Intermediate swivel with GFLT seals (p/n VNI-A4VG)
- Drop hose, 80" long.
- Choose braided stainless steel (p/n L19081) or composite material (p/n L19080)
- Coupler swivel with GFLT seals (p/n VNC-A4VG)
- Coupler spool (p/n VSS-4)
- API Coupler (typically p/n API712)
- Horizontal spool, custom length.
- Choose carbon steel or aluminum.
- Drop spool, custom length.
- Choose carbon steel or aluminum. (1) FHK-150-04-CS, (6) FHK-TTMA-04-CS
-
VNB-I4 MK2 Datasheet
-
Terminal Solutions Brochure
-
Terminal Survey Form
-
Folleto Soluciones Totales Para Terminales (En Español)
-
Hoja de Datos Estándar para Carga por Debajo - Español
-
Bottom Unloading Rail Layout Form
-
Tank Truck Bottom Loading Layout Form
| Mounting | Base flange is 4" ANSI 150 raised face flange. Outlet flange is 100mm (4") TTMA pattern. |
|---|---|
| Technical Data |
|
| Working pressure | 1,000 kPa (145 PSI) |
| Test pressure | 1,500 kPa (218 PSI) |
| Weight | 60 kg (132lb) |
| Operating temperature | -20° to +80°C (-4° to +176°F) for EPDM & Viton B70 grade -40° to +60°C (-40° to +140°F) for Viton GFLT grade |
| Associated Equipment | See Velvet Touch loading arm systems. |
* Note: The nature of Teflon is that it is unyielding but easily scratched; therefore the slightest damage can lead to weeps particularly where clamping force is provided by a spring which is necessarily limited in force. However the use of Teflon cannot be avoided because of its outstanding chemical resistance. Liquip guarantee the sealing of all new products and test all production prior to dispatch. Following installation of the equipment by the Purchaser it is essential that the valve be kept perfectly clean, any test liquids be perfectly clean and no tools be allowed to touch the Teflon seals. It is not uncommon for valves to exhibit small weeps once in service with commercial-quality liquids.
Features & Benefits
- Balance assembly bolts onto the flange, reducing the amount of product inlet pipework needed at loading depots
- Horizontal spool is bolted onto the outlet flange of the balance assembly
- Precise balancing of the arm is achieved by repositioning the bottom of the struts for course adjustment
- Worm-drive screw at the top of the struts enhances fine-tuning capabilities
- Adjustable up/down stop is integrated into the balance assembly to ensure the struts do not reach their limit while keeping arm movement clear of obstructions, such as roofing
Ordering Information
- MK2 balance assembly with GFLT seals (typcially p/n VNB-I4VG or VNBL-I4VG)
- Gas struts.
- Choose 2800N strength (p/n L4416), 5200N strength (p/n L3008), or (1) of each strength
- Intermediate swivel with GFLT seals (p/n VNI-A4VG)
- Drop hose, 80" long.
- Choose braided stainless steel (p/n L19081) or composite material (p/n L19080)
- Coupler swivel with GFLT seals (p/n VNC-A4VG)
- Coupler spool (p/n VSS-4)
- API Coupler (typically p/n API712)
- Horizontal spool, custom length.
- Choose carbon steel or aluminum.
- Drop spool, custom length.
- Choose carbon steel or aluminum. (1) FHK-150-04-CS, (6) FHK-TTMA-04-CS
-
VNB-I4 MK2 Datasheet
-
Terminal Solutions Brochure
-
Terminal Survey Form
-
Folleto Soluciones Totales Para Terminales (En Español)
-
Hoja de Datos Estándar para Carga por Debajo - Español
-
Bottom Unloading Rail Layout Form
-
Tank Truck Bottom Loading Layout Form
