Long Range Hose Loader

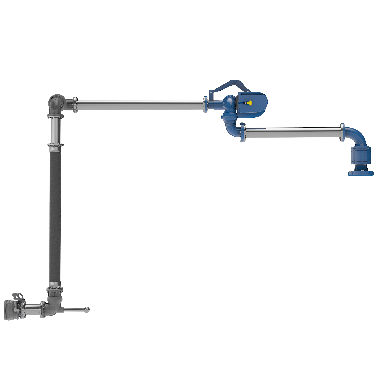

OPW spring balanced hose loaders are available in both short-range (SRH-32) and long-range (LRH-32) versions. Like counterweighted hose loaders, spring balanced hose loaders are generally stored at horizontal and only slightly upward or downward movement is required to align the coupler with the tank truck adaptor.
The Long Range Hose Loader, in the 4" size, is used in exactly the same manner as the counterweighted hose loader. The major difference being the counterbalance mechanism is a torsion spring rather than weights.
- Available in 4"
- Available in carbon steel, stainless steel and aluminum
- Choice of flanged, threaded or all-welded construction
Benefits
- Ideal for converting Top Loading installations to Bottom Loading
- Easily adjustable torsion spring
- Easy to handle and move
- Easily meets API envelope requirements with 3 units on 21” (533 mm) centers.
- Easy to operate/maneuver
- For multiple product applications, it can be mounted close to another arm
- Crossover can easily be achieved
Accessories
Grounding/Bonding – Suggested for many top/splash loading applications. Available as an option on all Loading Arm designs. Electronic Ground Verification The Civacon model 8030 Ground Verification Monitor is compatible with today’s transport ground systems. The monitor is equipped to provide a permissive signal to allow load rack operation and, if ground is lost, to indicate a non-permissive signal and shut down the loading operation.
Safety Breakaway Coupling Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
Quick & Dry Disconnect Couplings
With OPW, you have many options at your disposal for your loading arm termination connections. From the original quick-disconnect Kamlok® coupling to our Epsilon™ dry disconnect coupling, we have a coupling to meet your needs. API Bottom Loading Couplers Commonly used for loading Petroleum products, OPW provides several options for loading your Petroleum transports. Loading Valves
- 6400 Series Horizontal Valve – OPW Loading Valves are designed to shut off flow without causing shock in the pipeline.
- Adjustable closure rate
- 3” & 4” sizes, Aluminum Construction
- TTMA Flanged connections
- Ball Valves (per application/specification)
Benefits
- Ideal for converting Top Loading installations to Bottom Loading
- Easily adjustable torsion spring
- Easy to handle and move
- Easily meets API envelope requirements with 3 units on 21” (533 mm) centers.
- Easy to operate/maneuver
- For multiple product applications, it can be mounted close to another arm
- Crossover can easily be achieved
Library
All OPW Loading Arms can be customized to fit your specific application requirements. We do offer a series of Standard/ optimized solutions that are commonly specified. These optimized selections can be expedited to meet faster delivery requirements.
-
LRH32F-4
Technical
Click on the title below to view the technical information.
Loading Arm Velocities What size pipe do I need?
Velocity in ft/sec. | Velocity in m/sec. | |||||||||
| GPM | 2" | 3" | 4" | 6" | L/min. | 2" | 3" | 4" | 6" | |
| 100 | 9.6 | 400 | 3.1 | |||||||
| 125 | 12 | 600 | 4.6 | 2.1 | ||||||
| 150 | 14.3 | 800 | 6.1 | 2.8 | ||||||
| 175 | 16.8 | 1000 | 7.7 | 3.5 | 2 | |||||
| 200 | 19.1 | 8.7 | 1250 | 9.6 | 4.4 | 2.5 | ||||
| 225 | 21.5 | 9.8 | 1500 | 5.2 | 3 | |||||
| 250 | 23.9 | 10.8 | 1750 | 6.1 | 3.5 | |||||
| 300 | 13 | 7.5 | 2000 | 7 | 4 | |||||
| 350 | 15.2 | 8.8 | 2250 | 7.9 | 4.5 | 2 | ||||
| 400 | 17.4 | 10.1 | 2500 | 8.7 | 5.1 | 2.2 | ||||
| 450 | 19.6 | 11.4 | 2750 | 5.6 | 2.4 | |||||
| 500 | 21.7 | 12.6 | 5.6 | 3000 | 6.1 | 2.6 | ||||
| 550 | 23.9 | 13.8 | 6.1 | 3250 | 6.6 | 2.9 | ||||
| 600 | 15.1 | 6.6 | 3500 | 7.1 | 3.1 | |||||
| 650 | 16.4 | 7.2 | 3750 | 7.6 | 3.3 | |||||
| 700 | 17.6 | 7.8 | 4000 | 8.1 | 3.6 | |||||
| 750 | 18.9 | 8.3 | 4500 | 9.1 | 4 | |||||
| 800 | 20.2 | 8.9 | 5000 | 4.5 | ||||||
| 900 | 22.7 | 10 | 5500 | 4.9 | ||||||
| 1000 | 11.1 | 6000 | 5.3 | |||||||
| 1200 | 13.3 | 6500 | 5.8 | |||||||
| 1300 | 14.4 | 7000 | 6.2 | |||||||
| 1400 | 15.6 | |||||||||
| 1500 | 16.7 | |||||||||
| 1600 | 17.8 | |||||||||
| 1700 | 18.9 | |||||||||
| 1800 | 20 | |||||||||
| Velocities above 15 ft./sec. (4.6 m/sec.) are generally not recommended - Bold are recommended. | ||||||||||
Loading Arm Configurations
OPW Loading Systems
The transfer of volatile, valuable, potentially toxic fluids requires highly engineered loading arms, couplers and swivels. OPW Engineered Systems is the global leader in the design and manufacture of products that transfer fluids SAFER, CLEANER, FASTER.
Success Story: SI Group
OPW 790 Series Torsion Spring Adjustiment
The OPW 790 Series EZ Adjust Loading Arm Spring-Balance permits any one of a full range of spring balance adjustments with a simple turn of the wrench. The 790 is the ultimate user-friendly solution to spring adjustment. With this technology, you no longer have to have the loading arm in the vertical position to make adjustments. In most cases, adjustments can be made from any position.
New 890 Series Counterbalance
New 890 Series High Load Counterbalance from OPW features a high-tension spring for "zero drift" stability when handling heavy loads.
-
Loading Arms Installation Operations Manual
-
Loading-Arm-Design-Form
-
Loading-Arm-configurations
-
3000 Series Installation Operations Manual
-
8000 Series Endura Installation Operations Manual
-
790 Counterbalance Installation Operations Manual
-
Torsion Spring Counterbalance Installation Operations Manual
-
Terminal Solutions Brochure
-
Terminal Survey Form
-
Folleto Soluciones Totales Para Terminales (En Español)
-
Hoja de Datos Estándar para Carga por Debajo - Español
-
Bottom Unloading Rail Layout Form
-
Tank Truck Bottom Loading Layout Form
Accessories
Grounding/Bonding – Suggested for many top/splash loading applications. Available as an option on all Loading Arm designs. Electronic Ground Verification The Civacon model 8030 Ground Verification Monitor is compatible with today’s transport ground systems. The monitor is equipped to provide a permissive signal to allow load rack operation and, if ground is lost, to indicate a non-permissive signal and shut down the loading operation.
Safety Breakaway Coupling Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
Quick & Dry Disconnect Couplings
With OPW, you have many options at your disposal for your loading arm termination connections. From the original quick-disconnect Kamlok® coupling to our Epsilon™ dry disconnect coupling, we have a coupling to meet your needs. API Bottom Loading Couplers Commonly used for loading Petroleum products, OPW provides several options for loading your Petroleum transports. Loading Valves
- 6400 Series Horizontal Valve – OPW Loading Valves are designed to shut off flow without causing shock in the pipeline.
- Adjustable closure rate
- 3” & 4” sizes, Aluminum Construction
- TTMA Flanged connections
- Ball Valves (per application/specification)
Benefits
- Ideal for converting Top Loading installations to Bottom Loading
- Easily adjustable torsion spring
- Easy to handle and move
- Easily meets API envelope requirements with 3 units on 21” (533 mm) centers.
- Easy to operate/maneuver
- For multiple product applications, it can be mounted close to another arm
- Crossover can easily be achieved
Library
All OPW Loading Arms can be customized to fit your specific application requirements. We do offer a series of Standard/ optimized solutions that are commonly specified. These optimized selections can be expedited to meet faster delivery requirements.
-
LRH32F-4
Technical
Click on the title below to view the technical information.
Loading Arm Velocities What size pipe do I need?
Velocity in ft/sec. | Velocity in m/sec. | |||||||||
| GPM | 2" | 3" | 4" | 6" | L/min. | 2" | 3" | 4" | 6" | |
| 100 | 9.6 | 400 | 3.1 | |||||||
| 125 | 12 | 600 | 4.6 | 2.1 | ||||||
| 150 | 14.3 | 800 | 6.1 | 2.8 | ||||||
| 175 | 16.8 | 1000 | 7.7 | 3.5 | 2 | |||||
| 200 | 19.1 | 8.7 | 1250 | 9.6 | 4.4 | 2.5 | ||||
| 225 | 21.5 | 9.8 | 1500 | 5.2 | 3 | |||||
| 250 | 23.9 | 10.8 | 1750 | 6.1 | 3.5 | |||||
| 300 | 13 | 7.5 | 2000 | 7 | 4 | |||||
| 350 | 15.2 | 8.8 | 2250 | 7.9 | 4.5 | 2 | ||||
| 400 | 17.4 | 10.1 | 2500 | 8.7 | 5.1 | 2.2 | ||||
| 450 | 19.6 | 11.4 | 2750 | 5.6 | 2.4 | |||||
| 500 | 21.7 | 12.6 | 5.6 | 3000 | 6.1 | 2.6 | ||||
| 550 | 23.9 | 13.8 | 6.1 | 3250 | 6.6 | 2.9 | ||||
| 600 | 15.1 | 6.6 | 3500 | 7.1 | 3.1 | |||||
| 650 | 16.4 | 7.2 | 3750 | 7.6 | 3.3 | |||||
| 700 | 17.6 | 7.8 | 4000 | 8.1 | 3.6 | |||||
| 750 | 18.9 | 8.3 | 4500 | 9.1 | 4 | |||||
| 800 | 20.2 | 8.9 | 5000 | 4.5 | ||||||
| 900 | 22.7 | 10 | 5500 | 4.9 | ||||||
| 1000 | 11.1 | 6000 | 5.3 | |||||||
| 1200 | 13.3 | 6500 | 5.8 | |||||||
| 1300 | 14.4 | 7000 | 6.2 | |||||||
| 1400 | 15.6 | |||||||||
| 1500 | 16.7 | |||||||||
| 1600 | 17.8 | |||||||||
| 1700 | 18.9 | |||||||||
| 1800 | 20 | |||||||||
| Velocities above 15 ft./sec. (4.6 m/sec.) are generally not recommended - Bold are recommended. | ||||||||||

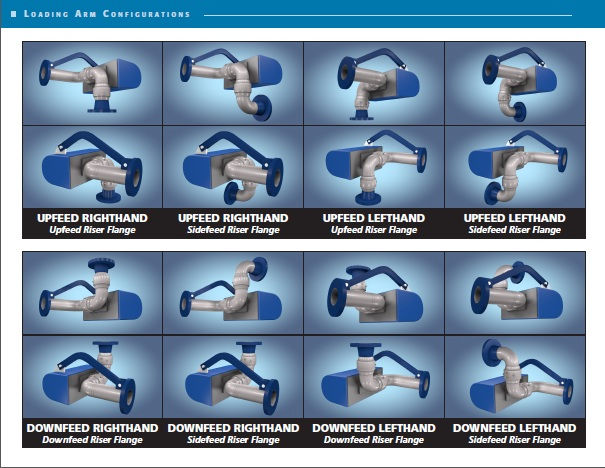

Loading Arm Configurations
OPW Loading Systems
The transfer of volatile, valuable, potentially toxic fluids requires highly engineered loading arms, couplers and swivels. OPW Engineered Systems is the global leader in the design and manufacture of products that transfer fluids SAFER, CLEANER, FASTER.
Success Story: SI Group
OPW 790 Series Torsion Spring Adjustiment
The OPW 790 Series EZ Adjust Loading Arm Spring-Balance permits any one of a full range of spring balance adjustments with a simple turn of the wrench. The 790 is the ultimate user-friendly solution to spring adjustment. With this technology, you no longer have to have the loading arm in the vertical position to make adjustments. In most cases, adjustments can be made from any position.
New 890 Series Counterbalance
New 890 Series High Load Counterbalance from OPW features a high-tension spring for "zero drift" stability when handling heavy loads.
-
Loading Arms Installation Operations Manual
-
Loading-Arm-Design-Form
-
Loading-Arm-configurations
-
3000 Series Installation Operations Manual
-
8000 Series Endura Installation Operations Manual
-
790 Counterbalance Installation Operations Manual
-
Torsion Spring Counterbalance Installation Operations Manual
-
Terminal Solutions Brochure
-
Terminal Survey Form
-
Folleto Soluciones Totales Para Terminales (En Español)
-
Hoja de Datos Estándar para Carga por Debajo - Español
-
Bottom Unloading Rail Layout Form
-
Tank Truck Bottom Loading Layout Form
