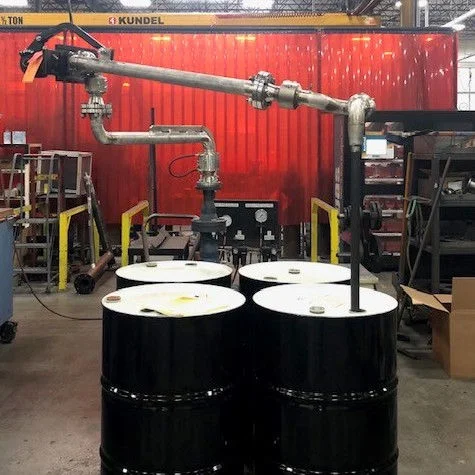

Drum/Tote Loading Arms

Features & Benefits

• Eliminates ground contamination caused by unsafe exposed hoses
• Increases productivity - easy operation ensures faster loading
• Improved Safety - No more lifting of hoses
• Increases equipment life- hoses need to be replaced often, loading arms don’t
• Easy Maintenance
• Can be designed to meet virtually any budget

Applications

• Recommended where loading all types of intermediate bulk containers (i.e. 55 gallon drums, tote bins)
• "A Mini-Loading Arm"

Common Options

• Sizes normally range from 1" - 2".
• Available in all carbon steel or stainless steel for chemical and petrochemical applications.
• Scissor style or unsupported boom style most common designs for applications involving multiple drums.
• Handles are recommended outboard to assist in positioning.
• Loading valve normally placed outboard for operator control.

Photos

Library

Following are several example drawings that have been applied in this application.
