API Parking Adaptor and Stand
API Parking Adaptors and stand for API couplers ensure bottom loading arms are correctly stowed and secured. Some can also be used to collect drips and pipe them away to a drain system. The bottom loading coupler is coupled and an integral proximity sensor (supplied separately) is actuated to enable system interlocks. All adaptors have stops to ensure coupler can not be opened whilst parked. The parking adaptor stand includes the parking adaptor.
Features & Benefits
- Built-in stops ensure coupler cannot be opened when parked
- Can be used to collect drips and pipe them to a drain system
- Can use a proximity switch to enable system interlocks

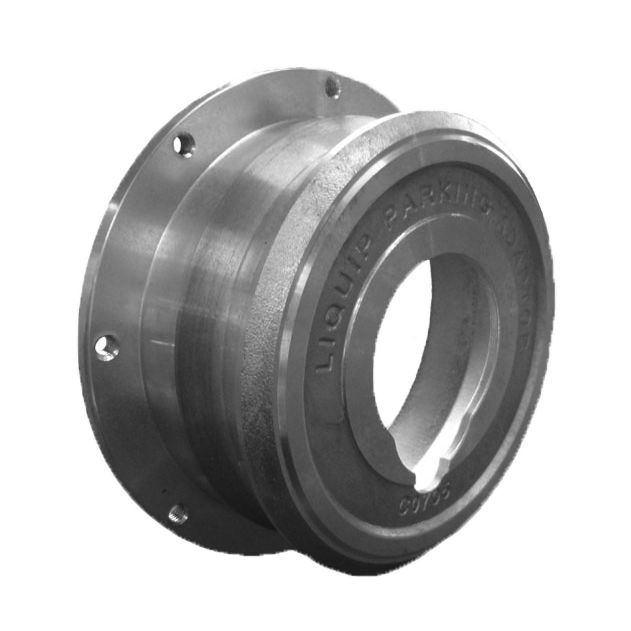

| PA801 | API Parking Adaptor |
|---|---|
| PA811 | API Parking Adaptor with Proximity Sensor Holder |

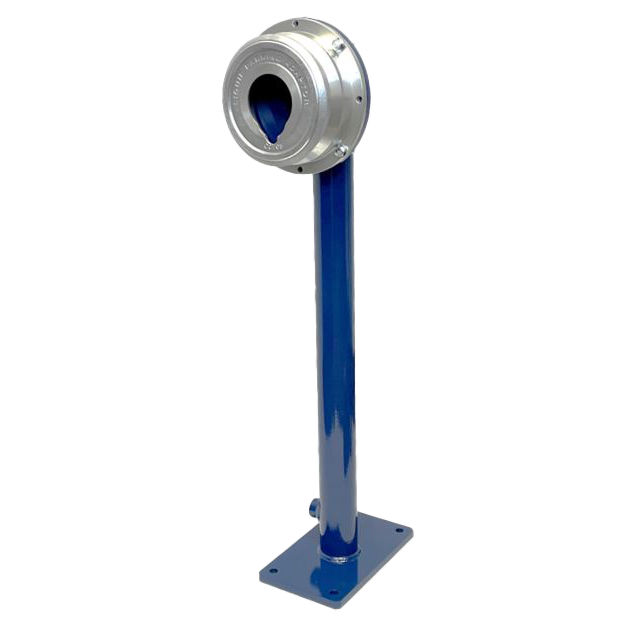

| PAS801-ES | API Parking Adaptor c/w Stand, Straight |
| PAS811-ES | API Parking Adaptor c/w Stand, Straight, with Proximity Sensor Holder |
| PAA811 | API Parking Adaptor c/w Stand, Angled , with Proximity Sensor Holder |
Technical
| Dismantle | Remove back plate and the nylon setscrew if dismantling to access proximity sensor is necessary. |
|---|---|
| Adjustment or Service | Periodically grease sliding proximity switch (where supplied) by using grease nipple visible from face of nosecone. |
| Materials of Construction | Nosecone - Aluminium |
| Spring - Stainless steel | |
| Slider - Acetal | |
| Stand - Painted steel | |
| Mounting | PA801 & PA811 bolt onto bracket supplied by customer |
| PAS801-ES & PAS811-ES are free standing (bolt to concrete or skid floor) | |
| Weight | PA801 - 0.9kg |
| Associated Equipment | API700 Series Dry-Break Coupler |
| API800 Seires Dry-Break Coupler | |
| 5544 Proximity Switch Sensor |
-
API Parking Adaptor and Stand Data Sheet
Features & Benefits
- Built-in stops ensure coupler cannot be opened when parked
- Can be used to collect drips and pipe them to a drain system
- Can use a proximity switch to enable system interlocks
| PA801 | API Parking Adaptor |
|---|---|
| PA811 | API Parking Adaptor with Proximity Sensor Holder |
| PAS801-ES | API Parking Adaptor c/w Stand, Straight |
| PAS811-ES | API Parking Adaptor c/w Stand, Straight, with Proximity Sensor Holder |
| PAA811 | API Parking Adaptor c/w Stand, Angled , with Proximity Sensor Holder |
Technical
| Dismantle | Remove back plate and the nylon setscrew if dismantling to access proximity sensor is necessary. |
|---|---|
| Adjustment or Service | Periodically grease sliding proximity switch (where supplied) by using grease nipple visible from face of nosecone. |
| Materials of Construction | Nosecone - Aluminium |
| Spring - Stainless steel | |
| Slider - Acetal | |
| Stand - Painted steel | |
| Mounting | PA801 & PA811 bolt onto bracket supplied by customer |
| PAS801-ES & PAS811-ES are free standing (bolt to concrete or skid floor) | |
| Weight | PA801 - 0.9kg |
| Associated Equipment | API700 Series Dry-Break Coupler |
| API800 Seires Dry-Break Coupler | |
| 5544 Proximity Switch Sensor |
-
API Parking Adaptor and Stand Data Sheet
