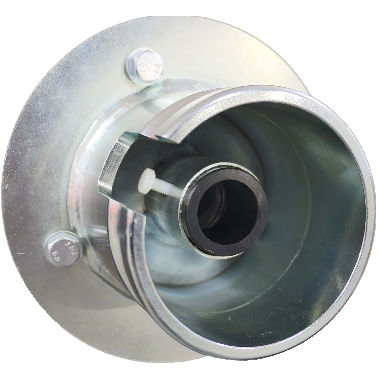

Vapor API Parking Adaptor - VCFPA
The VCFPA is an API parking adaptor for vapor couplers.
The vapor coupler is coupled and an integral proximity sensor (supplied separately) is actuated to enable system interlocks.
The VCFPA ensures the coupler remains closed when parked.
Features & Benefits
- Ensures vapor recovery loading arms or hoses are correctly stowed and secured.
- Provision is provided for proximity sensor to detect when coupler is safely parked.
- Compatible with all known variants of vapor couplers.
Technical
Materials -Nosecone - Zinc plated steel. -Back plate - Zinc plated steel. -Spring - Stainless steel.
Mounting Bolt onto bracket supplied by customer using 4 mounting holes. Align parking adaptor so slot in the nose cone is at the top to suit couplers such as VCF500 that have an opening shaft at the top.
May be made free standing (bolt to concrete or skid floor) by special order.
Weight 2kg.
Order Guide
VCFPA: Vapor API parking adaptor comes with proximity switch mount. (prox switch not inluded).
Accessories
VCF075W: 100mm Female Camlock to 100mm Male Hosetail vapor coupling.
VCF500: 4" Vapor Coupler with Dunny Lid. Spigot and blind flange.
5544: Proximity switch (M30).
Features & Benefits
- Ensures vapor recovery loading arms or hoses are correctly stowed and secured.
- Provision is provided for proximity sensor to detect when coupler is safely parked.
- Compatible with all known variants of vapor couplers.
Technical
Materials -Nosecone - Zinc plated steel. -Back plate - Zinc plated steel. -Spring - Stainless steel.
Mounting Bolt onto bracket supplied by customer using 4 mounting holes. Align parking adaptor so slot in the nose cone is at the top to suit couplers such as VCF500 that have an opening shaft at the top.
May be made free standing (bolt to concrete or skid floor) by special order.
Weight 2kg.
Order Guide
VCFPA: Vapor API parking adaptor comes with proximity switch mount. (prox switch not inluded).
Accessories
VCF075W: 100mm Female Camlock to 100mm Male Hosetail vapor coupling.
VCF500: 4" Vapor Coupler with Dunny Lid. Spigot and blind flange.
5544: Proximity switch (M30).
