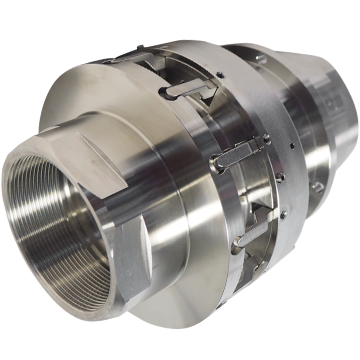

NTS-PU (direct pull) Series Safety Breakaway Coupling
Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
SAFER. Protects loading rack facilities, hoses and personnel by preventing damage and spills during a pull-away incident.
CLEANER. High value fluid and gas transfer is protected by two spring energized valves for maximum protection with a minimum of fluid loss.
FASTER. Immediate separation occurs at individually determined straight or angular pulling force. This non-destructive separation allows easy reassembly, with no shear pins, tools or spare parts.

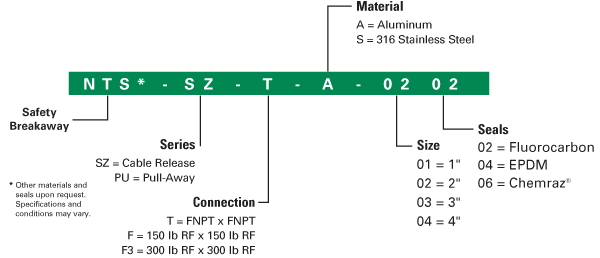

Order Guide
Specifications
| Connections | FNPT or Flange (150/300#) |
| Sizes | 1", 2", 3", 4", 6" (Sizes up to 12" Available Upon Request) |
| Max. Pressure | 360 PSI (Alu 232 PSI) |
| Materials | 316 Stainless Steel (Anodized Aluminum in 4" size only) |
| Seals | Fluorocarbon, EPDM, Chemraz® |
| *Other materials available upon request. | |
Downloads
-
NTS-PU-Series-Breakaway Flyer
-
Breakaway Application Form
-
NTS-PU Series (Pull-Away) Manual
Videos
OPW Engineered Systems: NTS-PU Safety Breakaway Product Overview
Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
OPW Engineered Systems: NTS-PU Safety Breakaway Product Demonstration
Learn how to connect the NTS-PU Safety Breakaway, from Engineered Systems, and how it protects loading equipment and personnel from unintended separation or "drive off" incidents.
OPW Engineered Systems: NTS-PU Safety Breakaway Product Maintenance, O-ring Replacement
Learn how to properly maintain your NTS-PU Safety Breakaway and replace its O-rings.
Order Guide
Specifications
| Connections | FNPT or Flange (150/300#) |
| Sizes | 1", 2", 3", 4", 6" (Sizes up to 12" Available Upon Request) |
| Max. Pressure | 360 PSI (Alu 232 PSI) |
| Materials | 316 Stainless Steel (Anodized Aluminum in 4" size only) |
| Seals | Fluorocarbon, EPDM, Chemraz® |
| *Other materials available upon request. | |
Downloads
-
NTS-PU-Series-Breakaway Flyer
-
Breakaway Application Form
-
NTS-PU Series (Pull-Away) Manual
Videos
OPW Engineered Systems: NTS-PU Safety Breakaway Product Overview
Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
OPW Engineered Systems: NTS-PU Safety Breakaway Product Demonstration
Learn how to connect the NTS-PU Safety Breakaway, from Engineered Systems, and how it protects loading equipment and personnel from unintended separation or "drive off" incidents.
OPW Engineered Systems: NTS-PU Safety Breakaway Product Maintenance, O-ring Replacement
Learn how to properly maintain your NTS-PU Safety Breakaway and replace its O-rings.
