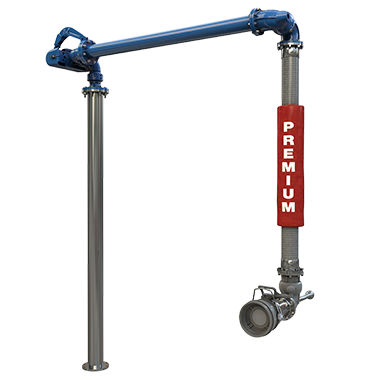

Short-Range Hose (SRH) Bottom Loading Arm
This simple arm incorporates only three swivel planes of rotation and is designed for use in top-loading installations where the vehicle is located at a fixed distance from the riser pipe. The two swivel planes at the inlet permit both up-and-down and side-to-side movement of the assembly, and the third swivel plane allows the drop pipe to remain vertical.
The New StandardLine
StandardLine Loading Arms by OPW Engineered Systems raise the bar in quality and performance for the industry. Get OPW's best-in-class loading systems in pre-engineered sizes, materials and feed orientations with delivery in 20 days or less. All StandardLine Loading Arms feature:
- Fast Delivery – 20 Days or Less!†
- Menu of Options to Customize Your Arm
- Included Freight in the Continental US and Canada
- Exclusive 3-Year Warranty
†’20 Days or Less’ refers to 20 working days
Features & Benefits
- 3000 Series Swivel Joints
- Simple, Proven Design
- Carbon Steel/Aluminum Construction
- Low-Temperature Fluorocarbon Seals
- Wide Compatibility
- 790 EZ Adjust Counterbalance
- Safe, Easy Spring Adjustment
- Integral Upward, Downward Travel Stops
- 5-Year Warranty
- Braided Stainless Steel or Rackmaster Composite Hoses
- Available with Lynx Bottom Loading Coupler
- 3-Year Warranty
- Ideal for Converting Top-Loading Rack to Bottom-Loading Configuration
Dimensions

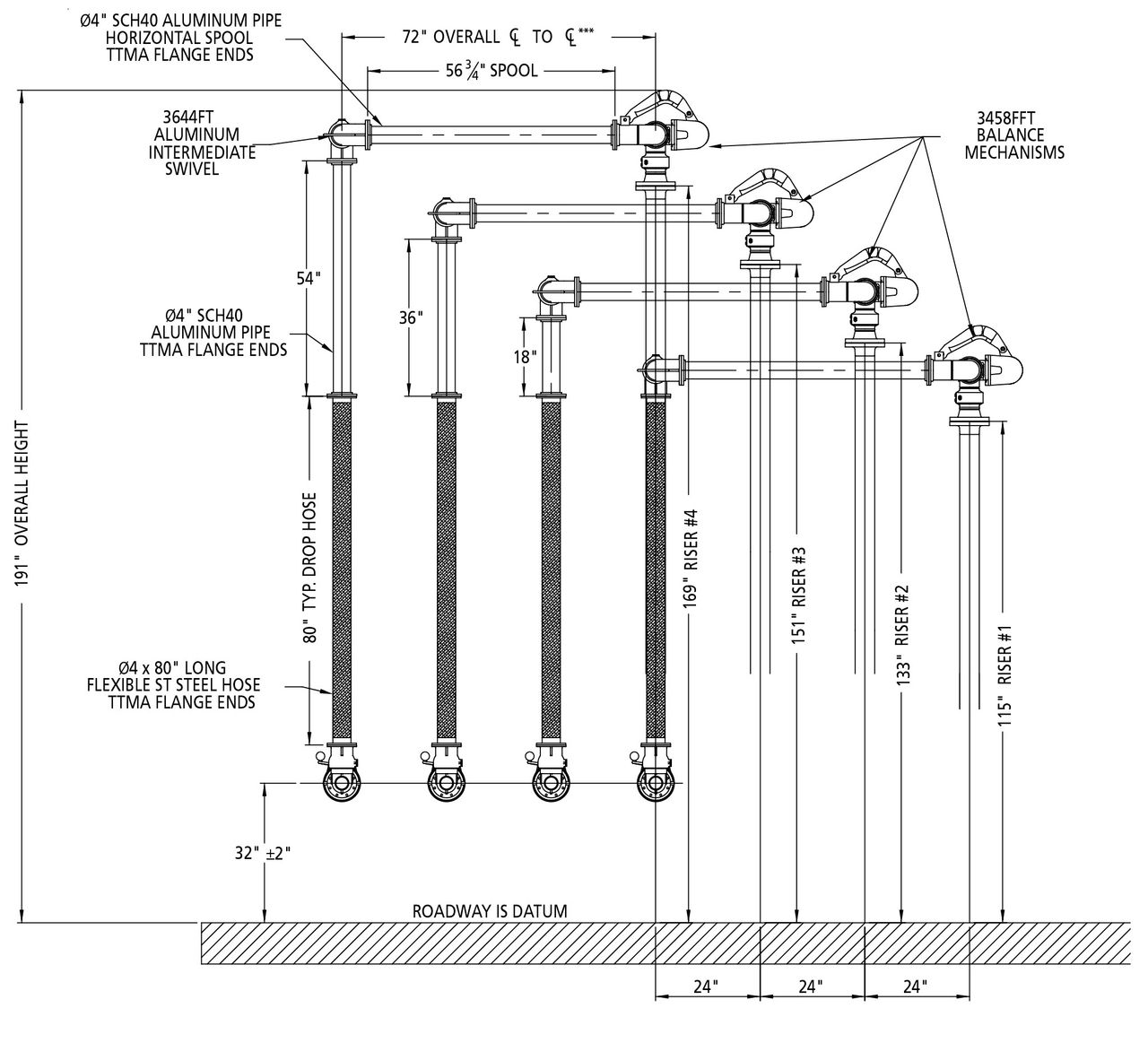

Short-Range Hose (SRH) Loader Dimensions*
StandardLine Terminal Configuration**
*Required to accommodate StandardLine offering. Other options are available upon request.
**Left-hand configuration shown. Right-hand configuration would be a mirror image with riser elevations going up from left to right. Contact OPW for layout assistance.
***Provides 72" reach, StandardLine also available with 60" reach. Other lengths available upon request.
Technical Features
| Materials | Carbon Steel/Aluminum |
|---|---|
| Seals | Low-Temp Flurocarbon |
| Working Pressure | 80 PSI (5.5 Bar) |
| Test Pressure | 120 PSI (8.2 Bar) |
| Operating Temperature | -20ºF to 140ºF (-29ºC to 60ºC) |
| Up/Down Angular Movement | +45º to -15ºC (from horizontal) |
| Typical Horizontal Spacing | 24" (610 mm) |
| Typical Vertical Spacing | 18" (457 mm) |
| Typical Reach (Radius) | 60" to 72" (1,524 mm to 1,829 mm) |
| Nominal Diameter | 4" |
| Typical Flow Rates (Velocities < 15 ft/sec (7.5 m/sec)) | 300-600 GPM (2000-3500 LPM) |
| Weight | ~275 lbs* |
*Estimated weight for entire Loading Arm (72" Reach). Weight can vary depending on selected options.
Materials of Construction
| Inlet Flange | 4" 150 ANSI ASTM A105 |
|---|---|
| Inlet Swivel | Carbon Steel ASTM A105 |
| Primary Arm Piping | Sch 40 Aluminum ASTM B241 |
Apex Swivel (p/n 3640FT-0402) | Aluminum ASTM B26 A356 T6 |
| Drop Hoses | (L19080) Braided Stainless Steel, TTMA Ends (L19080) Braided Stainless Steel, TTMA Ends |
Coupler Swivel (p/n 3635FTH-0402) | Aluminum ASTM B26 A356 T6 |
Isolation Valve (LBV450VGL) | Cast Aluminum/Flurocarbon |
Spacer Spool (p/n VSS4) | Cast Aluminum AA601 |
API Coupler (p/n 1004D3, Lynx852VG) | Aluminum/Flurocarbon |
Additional Information
| Weld Procedure | Per the ASME Boiler & Pressure Vessel Code Section IX |
|---|---|
| Radiograph/X-Ray | Per OPW Standard, 5% random/factory lot |
| Testing | All assembled Loading Arms shall be tested to 1.5X the rated design pressure. |
| Surface Treatments | All Carbon Steel components to be protected with a 2-part paint process. Aluminum components to be unpainted. |
| Lubricant | OPW 880 High-Performance Synthetic Lubricant |
| Gasketing | KlingerSil C5400 |
| Warranty | Standard warranty of three years after date of invoice shall apply. LYNX API Coupler warranty to be three years after shipment from factory. 790 Counterbalance warranty to be five years after shipment from factory. |
| Freight | All shipments are F.O.B. Factory Lebanon, OH. Full freight is allowed on surface transportation within continental United States and Canada. |
| Factory Assembly, Testing & Boxing (ATB) | If this option is selected, Loading Arm would be fully assembled, tested and shipped in protective wooden crate. Note: It may be necessary to ship Loading Arm in sections to accommodate crating, shipping and rigging. Arm will be shipped as fully assembled as possible. |
Recommended Spare Parts List**
| Part # | Description | Where Used | Qty/Arm |
|---|---|---|---|
| 3000RK-0402 | 3000 Series Swivel Seal Kit, 4" Flurocarbon | All Swivels (Counterbalance, Apex, Coupler Swivels) | 4 |
| 1004D3SRK-0402 | Coupler Seal Repair Kit, 4" Flurocarbon | 1004D3-0402 (API Coupler) | 1 |
| API850VGSK | Coupler Seal Repair Kit, 4" Flurocarbon | Lynx852VG (API Coupler) | 1 |
**Other seal kits/materials available upon request
Ordering Information

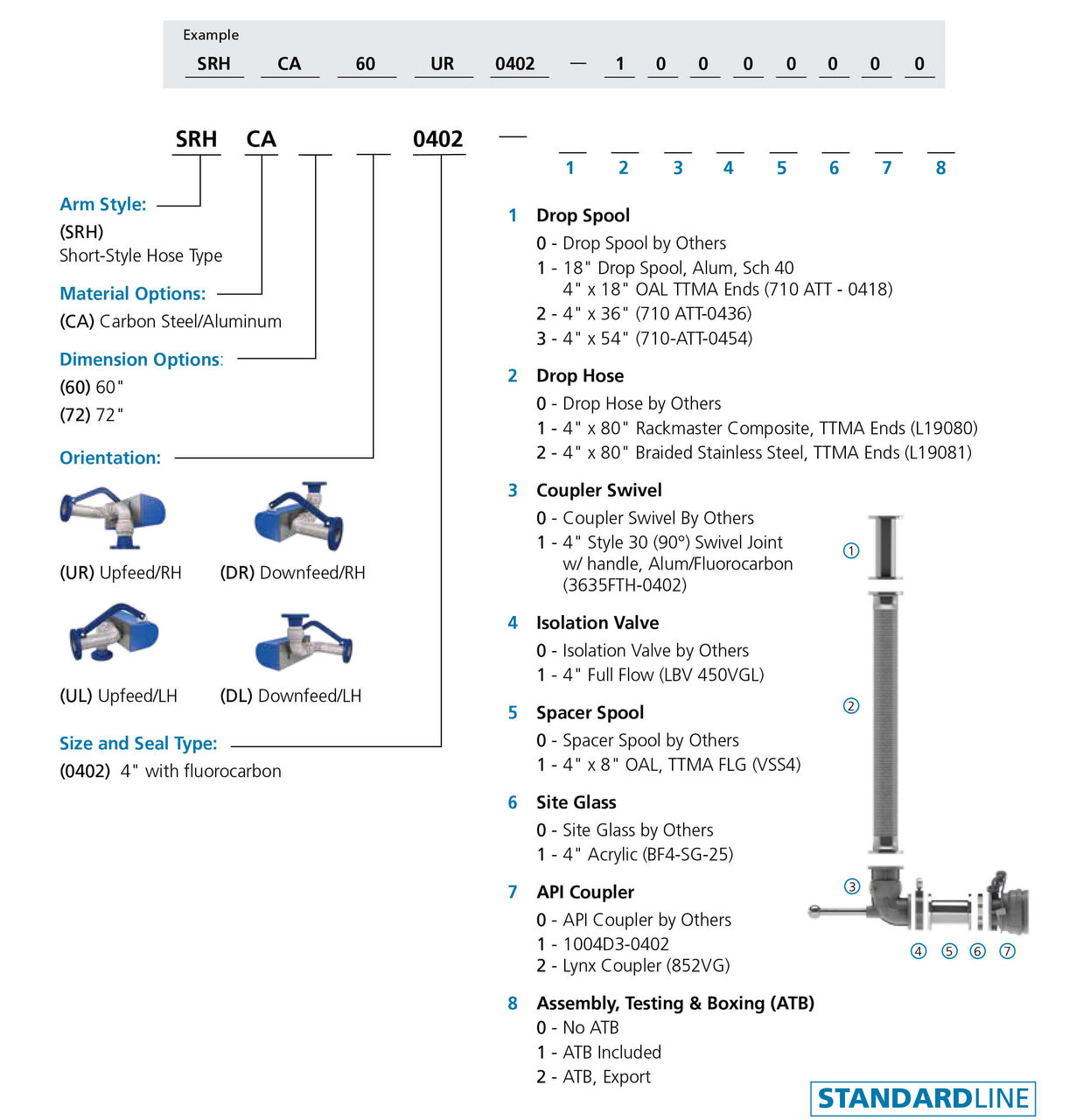

Build Your StandardLine SRH Arm
- Fill in the corresponding code for your selections.
- Add accessories by filling in the appropriate corresponding number for each option.
Downloads
-
SRH - StandardLine Ordering Guide
Features & Benefits
- 3000 Series Swivel Joints
- Simple, Proven Design
- Carbon Steel/Aluminum Construction
- Low-Temperature Fluorocarbon Seals
- Wide Compatibility
- 790 EZ Adjust Counterbalance
- Safe, Easy Spring Adjustment
- Integral Upward, Downward Travel Stops
- 5-Year Warranty
- Braided Stainless Steel or Rackmaster Composite Hoses
- Available with Lynx Bottom Loading Coupler
- 3-Year Warranty
- Ideal for Converting Top-Loading Rack to Bottom-Loading Configuration
Dimensions
Short-Range Hose (SRH) Loader Dimensions*
StandardLine Terminal Configuration**
*Required to accommodate StandardLine offering. Other options are available upon request.
**Left-hand configuration shown. Right-hand configuration would be a mirror image with riser elevations going up from left to right. Contact OPW for layout assistance.
***Provides 72" reach, StandardLine also available with 60" reach. Other lengths available upon request.
Technical Features
| Materials | Carbon Steel/Aluminum |
|---|---|
| Seals | Low-Temp Flurocarbon |
| Working Pressure | 80 PSI (5.5 Bar) |
| Test Pressure | 120 PSI (8.2 Bar) |
| Operating Temperature | -20ºF to 140ºF (-29ºC to 60ºC) |
| Up/Down Angular Movement | +45º to -15ºC (from horizontal) |
| Typical Horizontal Spacing | 24" (610 mm) |
| Typical Vertical Spacing | 18" (457 mm) |
| Typical Reach (Radius) | 60" to 72" (1,524 mm to 1,829 mm) |
| Nominal Diameter | 4" |
| Typical Flow Rates (Velocities < 15 ft/sec (7.5 m/sec)) | 300-600 GPM (2000-3500 LPM) |
| Weight | ~275 lbs* |
*Estimated weight for entire Loading Arm (72" Reach). Weight can vary depending on selected options.
Materials of Construction
| Inlet Flange | 4" 150 ANSI ASTM A105 |
|---|---|
| Inlet Swivel | Carbon Steel ASTM A105 |
| Primary Arm Piping | Sch 40 Aluminum ASTM B241 |
Apex Swivel (p/n 3640FT-0402) | Aluminum ASTM B26 A356 T6 |
| Drop Hoses | (L19080) Braided Stainless Steel, TTMA Ends (L19080) Braided Stainless Steel, TTMA Ends |
Coupler Swivel (p/n 3635FTH-0402) | Aluminum ASTM B26 A356 T6 |
Isolation Valve (LBV450VGL) | Cast Aluminum/Flurocarbon |
Spacer Spool (p/n VSS4) | Cast Aluminum AA601 |
API Coupler (p/n 1004D3, Lynx852VG) | Aluminum/Flurocarbon |
Additional Information
| Weld Procedure | Per the ASME Boiler & Pressure Vessel Code Section IX |
|---|---|
| Radiograph/X-Ray | Per OPW Standard, 5% random/factory lot |
| Testing | All assembled Loading Arms shall be tested to 1.5X the rated design pressure. |
| Surface Treatments | All Carbon Steel components to be protected with a 2-part paint process. Aluminum components to be unpainted. |
| Lubricant | OPW 880 High-Performance Synthetic Lubricant |
| Gasketing | KlingerSil C5400 |
| Warranty | Standard warranty of three years after date of invoice shall apply. LYNX API Coupler warranty to be three years after shipment from factory. 790 Counterbalance warranty to be five years after shipment from factory. |
| Freight | All shipments are F.O.B. Factory Lebanon, OH. Full freight is allowed on surface transportation within continental United States and Canada. |
| Factory Assembly, Testing & Boxing (ATB) | If this option is selected, Loading Arm would be fully assembled, tested and shipped in protective wooden crate. Note: It may be necessary to ship Loading Arm in sections to accommodate crating, shipping and rigging. Arm will be shipped as fully assembled as possible. |
Recommended Spare Parts List**
| Part # | Description | Where Used | Qty/Arm |
|---|---|---|---|
| 3000RK-0402 | 3000 Series Swivel Seal Kit, 4" Flurocarbon | All Swivels (Counterbalance, Apex, Coupler Swivels) | 4 |
| 1004D3SRK-0402 | Coupler Seal Repair Kit, 4" Flurocarbon | 1004D3-0402 (API Coupler) | 1 |
| API850VGSK | Coupler Seal Repair Kit, 4" Flurocarbon | Lynx852VG (API Coupler) | 1 |
**Other seal kits/materials available upon request
Ordering Information
Build Your StandardLine SRH Arm
- Fill in the corresponding code for your selections.
- Add accessories by filling in the appropriate corresponding number for each option.
Downloads
-
SRH - StandardLine Ordering Guide
