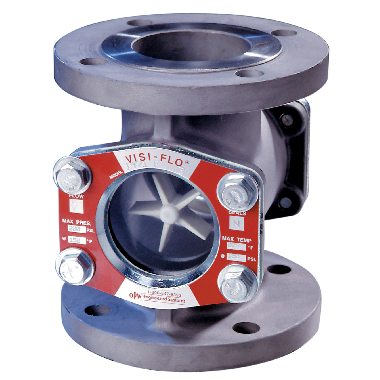

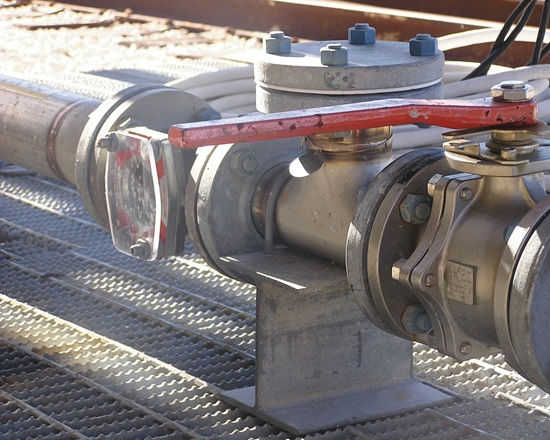

VISI-FLO® 1500 Series Sight Flow Indicators
Designed for applications with maximum operating pressure of 400 psig (27.6 bar) and/or temperature of 350ºF (177ºC). Special high-temperature seals are also available; consult factory for details. Flanged sight flow indicators have been engineered to meet the demands of a variety of industrial processes, including chemical and petrochemical applications.
- Exclusive 3-Year “No-Leak” Guarantee: An innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens for a longer-lasting and better seal than conventional flat seals
- Maintenance-Free Design: Bolt-on-body design requires no special maintenance or torqueing sequence in order to prevent leaks, resulting in safer operation than units using tie rods to fasten the lens and seal to the body
- Dimensional Interchangeability: Feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers' units. Available in 3/4", 2", 3" and 4" sizes
- High Vacuum-Service Rating: ?Rated for vacuum service up to 635 mm (25”) at 85.5% vacuum, which equates to 12.3-psi (0.84 bar) vacuum
- Four Indicator Styles: Drip Tube, Propeller, Bi-Directional Flapper, Bi-Directional Plane
- 3-Day Shipping for Most Items
Four Indicator Styles
Drip Tube – Ideal for gravity, extremely low or intermittent flow. Keeps product from dripping on the glass. Assures constant see-through for vertical lines.
Propeller – The best way to show flow of opaque liquids. Ideal for observation at a distance. Flow from right to left is standard. Specify if left to right flow is needed. Not recommended for flow rates above 100 GPM.
Bi-Directional Flapper – This indicator points in either direction to show you at a glance which way the liquid is flowing.
Bi-Directional Plain – When the color and clarity of your liquid are of prime importance.
Order Guide

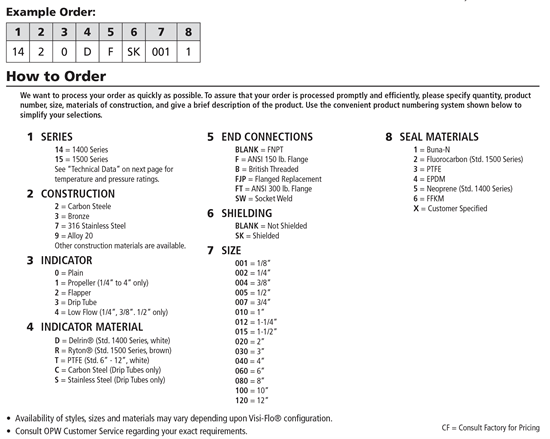

- Ordering Units

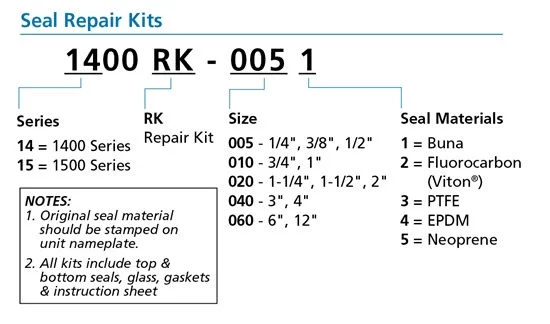

- Ordering Seal Repair Kits

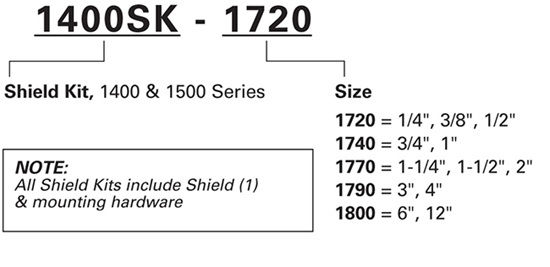

- Ordering Shield Kits Optional- Protecting Your Glass
Technical
Click on the title below to view the technical information.
Flow Charts
| Indicator Option 4" (Low Flow Orifice Plate) Minimum Flow Requirement to Turn Propeller | |||||||
| Size | 1/4 | 3/8 | 1/2 | ||||
| Minimum Flow* Required to Turn Propeller | ||||||||
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| GPM | .14 | .25 | .30 | .60 | .70 | 1.05 | 1.25 | 1.30 |
| *VISI-Flo installed in horizontal position with deflector opening down. | ||||||||
Service Ratings
| VISI-FLO® | Max. Pressure | Max Temperature1 |
| 1400 Series Threaded/ Flanged (1/4"-4") | 200 PSIG @ 150°F | 250°F @ 135 PSIG |
| 1400 Series Flanged (6-12") | 150 PSIG @ 150°F | 150°F @ 150 PSIG |
| 1500 Series Threaded (1/4"-2") | 400 PSIG @ 150°F | 400°F @ 160 PSIG |
| 1500 Series Flanged (3/4"-4") | 285 PSIG @ 100°F4 | 400°F @ 200 PSIG3 |
| 1500 Series Flanged (6"-12") | 275 PSIG @ 100°F | 400°F @ 200 PSIG2 |
1 With Standard seals 2 Stainless Steel Units Rated @ 195 PSIG 3 Stainless Steel Units Rated @ 195 PSIG 4 Stainless Steel Units Rated @ 275 PSIG Notes: Alternate seals may result in higher operating temps. Temps up to 500°F possible with High-Temp PTFE Seals 1500 Series units supplied with Canadian Registration Numbers (CRN) carry a 100 PSIG Maximum Allowable Working Pressure at Max Temp of 400F/204C. | ||
Seal & Indicator Operating Terms
| SEAL AND INDICATOR OPERATING TEMPERATURES | ||
| Material | Degrees F | Degrees C |
| Neoprene (1400 series standard) | -20 to 250 | -29 to 121 |
| Fluorocarbon (1500 series standard) | -20 to 400 | -29 to 204 |
| Buna-N | -20 to 212 | -29 to 100 |
| EPDM | -50 to 250 | -46 to 121 |
| PTFE | -40 to 400 | -40 to 204 |
| Kalrez® | 0 to 500 | -18 to 260 |
| Indicators | ||
| Delrin® | -40 to 250 | -40 to 121 |
| Ryton® | -40 to 450 | -40 to 232 |
| PTFE | -40 to 500 | -40 to 260 |
| High-Temp PTFE / Kalrez® | -40 to 500 | -40 to 260 |
Construction & Materials
| SEAL AND INDICATOR OPERATING TEMPERATURES | ||
| Material | Degrees F | Degrees C |
| Neoprene (1400 series standard) | -20 to 250 | -29 to 121 |
| Fluorocarbon (1500 series standard) | 0 to 400 | -17 to 204 |
| Buna-N | -20 to 212 | -29 to 100 |
| EPDM | -50 to 250 | -46 to 121 |
| PTFE | -40 to 400 | -40 to 204 |
| Kalrez® | 0 to 500 | -18 to 260 |
| Indicators | ||
| Delrin® | -40 to 250 | -40 to 121 |
| Ryton® | -40 to 450 | -40 to 232 |
| PTFE | -40 to 500 | -40 to 260 |
Minimum Flow required to turn a propeller
| Minimum Flow* Required to Turn Propeller | ||||||||
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| GPM | .14 | .25 | .30 | .60 | .70 | 1.05 | 1.25 | 1.30 |
| *VISI-Flo installed in horizontal position with deflector opening down. | ||||||||
Visi-Flo’s in Vacuum service
- VISI-FLO sight flow indicator seals, glass lenses, bodies and threaded connections provide sufficient sealing to qualify for vacuum service.
- Vacuum service rating is up to 635 mm (25”) of Hg (mercury) at 85.5% vacuum. This equates to 12.3 PSI vacuum.
Test Procedures
| Max Pressure (psi) | Test Procedure | ANSI Rated? | |
| ¼” – 2” Threaded 1400 Series | 200 | A | |
| ¼” – 2” Threaded 1500 Series | 600 | B | |
| 1” to 12” Flanged 1400 & 1500 Series | 200/275 | C | |
| * All flanged VISI-FLO meet requirements for 150 lb. ANSI Flanges. | |||
A = Test at 160 psi +/- 25 psi for one minute. Test at 400 psi +/- 50 psi for one minute B = Test at 160 psi +/- 25 psi for one minute. Test at 650 psi +/- 50 psi for one minute C = Test at 500 psi +/- 50 psi for a period of time specified as per ANSI: 1”, 1½”, 2” sizes for a minimum of 1 minute 3”, 4”, 6” 8” sizes for a minimum of 2 minutes 10” & 12” sizes for a minimum of 3 minutes

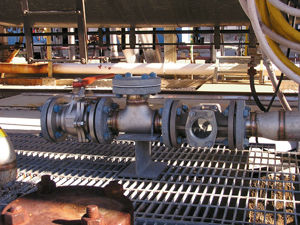

Applications
One of the key strengths of sight flow indicators is their remarkable versatility. For example, they can be used:
- In a variety of industries.
- To monitor and verify fluid flow through filter, cooling, intake/outlet pumping lines, as well as numerous other industrial processes.
- For troubleshooting or as backups for meters, switches, process indicators and other control devices.
Following are a series of examples where sight flow indicators can be applied.
Power Plants
- Newer Power Plants: Sight flow indicators monitor the flow of critical fluids, such aslubricants pumped to turbines in hydro-electric generators and water in cooling lines.
- Older Power Plants: More reliable sight flow indicators replace aging models (and additional indicators are also deployed) during upgrades.
Waste Water Treatment
VISI-FLO® sight flow indicators visually monitor the filtering process. The most common point of installation: second stage aeration tank pumping lines. The purpose: verify sludge removal to ensure efficient aeration.
Petroleum Industry
Sight flow indicators visually monitor drilling pump operations. VISI-FLO® is used to show dirty fluids being pumped from a down-hole hydraulic cleaning process. Should the indicator stop, this is a signal to the operator that the system is not cleaning properly and needs corrective action.
Chemical Industry
- Paint and Varnish Processing Plants:VISI-FLO® sight flow indicators are used to notify operators when filters become clogged. Any drops in flow rate or discoloration of blended resins that pass through the press are indications that filters are needed.
- Distilling Operations: Sight flow indicators are used to gauge color and clarity of fluids. An amber fluid color indicates proper distillation; a brown-to-black color signals the process has been disrupted and requires corrective action.
- Refineries: Sight flow indicators are used to monitor the draining of water from the bottom of storage tanks. The visual presence of oil in the indicator is a signal that the water is completely drained.
Manufacturing
VISI-FLO® sight flow indicators are used in a variety of manufacturing applications, including, for example, to monitor:
- The draining of hydraulic oil from nitrogen charged accumulators in die casting machine manufacturing facilities.
- Proper coolant flow, which is so vital to the operation of welding machines.
- Efficient filtration of process fluids.
OEM Markets
VISI-FLO® sight flow indicators are used in an array of OEM applications, including, for example:
- Compressor manufacturers install them on their products so end users can monitor the flow of water to compressor heads while in operation.
- Degreasing and defluxing equipment manufacturers use them to monitor recirculating solvent in cleaning operations and, thus, determine efficiency of the distillation/recovery process.
- Evaporators and filtration system manufacturers use them to monitor color and clarity of fluids in outlet lines and to confirm proper intake of fluids on inlet lines.
- Other potential uses:
- As a back-up to electronic equipment; seeing is believing.
- On boiler feed lines
- With steam traps to know when a clog is developing
- In a blending operation to see color and clarity
- On cooling tower lines
- In distillation processes
- On paper machine condensate lines
- On water cooled air compressors
- At the bottom of a vessel to see if it is empty
- On lubricating lines of machine bearings
- On aircraft refueling trucks
- In solvent recovery systems
- On desalination equipment
- Potentially, anywhere that fluids are used, VISI-FLO® can be used!
Parts Breakdown
| Key | Description | Series | 1/4", 3/8" & 1/2" | 3/4" & 1" | 1 1/4", 1 1/2" & 2" |
| 1 | Retaining Bolt | 1400 1500 | H40190M H30497M | H40191M H30498M | H40191M H30498M |
| 2 | Washer | 1400 & 1500 | H40193M | H40194M | H40194M |
| 3 | Nameplate | 1400 & 1500 | H30756M | H30757M | H30758M |
| 4 | Cap, Plated Steel | 1400 1500 | H2888M H30448M | H2889M H30449M | H2890M H30450M |
| 5 | Gasket* | 1400 & 1500 | H3870M | H3871M | H3873M |
| 6 | Glass* | 1400 1500 | H5997M H5998M | H6001M H6002M | H10152M H10153M |
| 7 | Seal* | See Repair Kits | |||
| 8 | Retaining Bridge (2 Required Per Unit) | 1400 & 1500 | H5996M | H6000M | H6004M |
| 9 | Indicator | ||||
| Propeller-Delrin | 1400 | H40153M | H40152M | H40141M | |
| Propeller-Ryton | 1500 | H2910M | H2911M | H2912M | |
| Propeller-PTFE | 1400 & 1500 | H40171M | H40172M | H40173M | |
| Flapper-Delrin | 1400 | H40150M | H40149M | H40148M | |
| Flapper-Ryton | 1500 | H2944M | H2947M | H2948M | |
| Flapper-PTFE | 1400 & 1500 | H40196M | H40197M | H40198M | |
| 10 | Shaft | 1400 & 1500 | H5999M | H6003M | H6011M |
| 11 | Seal* | See Repair Kits | |||
| 12 | Spacer, PTFE* | 1400 & 1500 | H31752M | H31753M | H31636M |
| 13 | Body | ||||
| 14 | Drip Tube | 1400 & 1500 | H30357RS | H30359RP | H30354RP |
| 15 | Deflector (Propeller Units Only) | 1400 & 1500 | H5012M | H5018M | H5020M |
| Key | Description | Series | 3" & 4" | 6"-12" |
| 1 | Retaining Bolt | 1400 & 1500 | H40192M | H40109M |
| 2 | Washer | 1400 & 1500 | H40195M | H40194M |
| 3 | Nameplate | 1400 & 1500 | C20190M | C20191M |
| 4 | Cap, Plated Steel | 1400 & 1500 | C20136M | C30012RS |
| 5 | Gasket* | 1400 & 1500 | H3874M | H40108M |
| 6 | Glass* | 1400 1500 | C00665M C00667M | H40107M H30368M |
| 7 | Seal* | See Repair Kits | ||
| 8 | Button, PTFE | 1400 & 1500 | H40157P | H40117RP |
| 9 | Indicator | |||
| Propeller-Delrin | 1400 | H40154M | NA | |
| Propeller-Ryton | 1500 | H40158P | NA | |
| Propeller-PTFE | 1400 & 1500 | H40174M | NA | |
| Flapper-Delrin | 1400 | H40148M | NA | |
| Flapper-Ryton | 1500 | H2948M | NA | |
| Flapper-PTFE | 1400 & 1500 | H40198M | NA | |
| 10 | Shaft | 1400 & 1500 | H40155M | H40116RE |
| 11 | Lockwasher, SST | 1400 & 1500 | H5162M | |
| 12 | Retaining Screw/Bolt | 1400 & 1500 | H40155M | H40144RP |
| 13 | Body | |||
| 14 | Drip Tube | |||
| 15 | Indicator Support Arm | 1400 & 1500 | C30025EW | H40114RS |
Downloads
-
Visi-Flo Sight Flow Indicators Flyer
-
E-Coated Visi-Flo Flyer
-
OPW ES Process Products and Accessories Catalog
-
Visi-Flo Sight Flow Indicators Manual
VISI-FLO Reference Drawings
-
VISI-FLO® Threaded_0.25-1in
-
VISI-FLO® Threaded _1.25-2in
-
VISI-FLO® Flanged_1in
-
VISI-FLO® Flanged_1.5-2in
-
VISI-FLO® Flanged_3-4in
-
VISI-FLO® Flanged_6-16in
-
VISI-FLO® Flanged FJP_0.75in
-
VISI-FLO® Flanged FJP_2in
-
VISI-FLO® Flanged FJP_3-4in

Order Guide
- Ordering Units
- Ordering Seal Repair Kits
- Ordering Shield Kits Optional- Protecting Your Glass
Technical
Click on the title below to view the technical information.
Flow Charts
| Indicator Option 4" (Low Flow Orifice Plate) Minimum Flow Requirement to Turn Propeller | |||||||
| Size | 1/4 | 3/8 | 1/2 | ||||
| Minimum Flow* Required to Turn Propeller | ||||||||
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| GPM | .14 | .25 | .30 | .60 | .70 | 1.05 | 1.25 | 1.30 |
| *VISI-Flo installed in horizontal position with deflector opening down. | ||||||||
Service Ratings
| VISI-FLO® | Max. Pressure | Max Temperature1 |
| 1400 Series Threaded/ Flanged (1/4"-4") | 200 PSIG @ 150°F | 250°F @ 135 PSIG |
| 1400 Series Flanged (6-12") | 150 PSIG @ 150°F | 150°F @ 150 PSIG |
| 1500 Series Threaded (1/4"-2") | 400 PSIG @ 150°F | 400°F @ 160 PSIG |
| 1500 Series Flanged (3/4"-4") | 285 PSIG @ 100°F4 | 400°F @ 200 PSIG3 |
| 1500 Series Flanged (6"-12") | 275 PSIG @ 100°F | 400°F @ 200 PSIG2 |
1 With Standard seals 2 Stainless Steel Units Rated @ 195 PSIG 3 Stainless Steel Units Rated @ 195 PSIG 4 Stainless Steel Units Rated @ 275 PSIG Notes: Alternate seals may result in higher operating temps. Temps up to 500°F possible with High-Temp PTFE Seals 1500 Series units supplied with Canadian Registration Numbers (CRN) carry a 100 PSIG Maximum Allowable Working Pressure at Max Temp of 400F/204C. | ||
Seal & Indicator Operating Terms
| SEAL AND INDICATOR OPERATING TEMPERATURES | ||
| Material | Degrees F | Degrees C |
| Neoprene (1400 series standard) | -20 to 250 | -29 to 121 |
| Fluorocarbon (1500 series standard) | -20 to 400 | -29 to 204 |
| Buna-N | -20 to 212 | -29 to 100 |
| EPDM | -50 to 250 | -46 to 121 |
| PTFE | -40 to 400 | -40 to 204 |
| Kalrez® | 0 to 500 | -18 to 260 |
| Indicators | ||
| Delrin® | -40 to 250 | -40 to 121 |
| Ryton® | -40 to 450 | -40 to 232 |
| PTFE | -40 to 500 | -40 to 260 |
| High-Temp PTFE / Kalrez® | -40 to 500 | -40 to 260 |
Construction & Materials
| SEAL AND INDICATOR OPERATING TEMPERATURES | ||
| Material | Degrees F | Degrees C |
| Neoprene (1400 series standard) | -20 to 250 | -29 to 121 |
| Fluorocarbon (1500 series standard) | 0 to 400 | -17 to 204 |
| Buna-N | -20 to 212 | -29 to 100 |
| EPDM | -50 to 250 | -46 to 121 |
| PTFE | -40 to 400 | -40 to 204 |
| Kalrez® | 0 to 500 | -18 to 260 |
| Indicators | ||
| Delrin® | -40 to 250 | -40 to 121 |
| Ryton® | -40 to 450 | -40 to 232 |
| PTFE | -40 to 500 | -40 to 260 |
Minimum Flow required to turn a propeller
| Minimum Flow* Required to Turn Propeller | ||||||||
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| GPM | .14 | .25 | .30 | .60 | .70 | 1.05 | 1.25 | 1.30 |
| *VISI-Flo installed in horizontal position with deflector opening down. | ||||||||
Visi-Flo’s in Vacuum service
- VISI-FLO sight flow indicator seals, glass lenses, bodies and threaded connections provide sufficient sealing to qualify for vacuum service.
- Vacuum service rating is up to 635 mm (25”) of Hg (mercury) at 85.5% vacuum. This equates to 12.3 PSI vacuum.
Test Procedures
| Max Pressure (psi) | Test Procedure | ANSI Rated? | |
| ¼” – 2” Threaded 1400 Series | 200 | A | |
| ¼” – 2” Threaded 1500 Series | 600 | B | |
| 1” to 12” Flanged 1400 & 1500 Series | 200/275 | C | |
| * All flanged VISI-FLO meet requirements for 150 lb. ANSI Flanges. | |||
A = Test at 160 psi +/- 25 psi for one minute. Test at 400 psi +/- 50 psi for one minute B = Test at 160 psi +/- 25 psi for one minute. Test at 650 psi +/- 50 psi for one minute C = Test at 500 psi +/- 50 psi for a period of time specified as per ANSI: 1”, 1½”, 2” sizes for a minimum of 1 minute 3”, 4”, 6” 8” sizes for a minimum of 2 minutes 10” & 12” sizes for a minimum of 3 minutes
Applications
One of the key strengths of sight flow indicators is their remarkable versatility. For example, they can be used:
- In a variety of industries.
- To monitor and verify fluid flow through filter, cooling, intake/outlet pumping lines, as well as numerous other industrial processes.
- For troubleshooting or as backups for meters, switches, process indicators and other control devices.
Following are a series of examples where sight flow indicators can be applied.
Power Plants
- Newer Power Plants: Sight flow indicators monitor the flow of critical fluids, such aslubricants pumped to turbines in hydro-electric generators and water in cooling lines.
- Older Power Plants: More reliable sight flow indicators replace aging models (and additional indicators are also deployed) during upgrades.
Waste Water Treatment
VISI-FLO® sight flow indicators visually monitor the filtering process. The most common point of installation: second stage aeration tank pumping lines. The purpose: verify sludge removal to ensure efficient aeration.
Petroleum Industry
Sight flow indicators visually monitor drilling pump operations. VISI-FLO® is used to show dirty fluids being pumped from a down-hole hydraulic cleaning process. Should the indicator stop, this is a signal to the operator that the system is not cleaning properly and needs corrective action.
Chemical Industry
- Paint and Varnish Processing Plants:VISI-FLO® sight flow indicators are used to notify operators when filters become clogged. Any drops in flow rate or discoloration of blended resins that pass through the press are indications that filters are needed.
- Distilling Operations: Sight flow indicators are used to gauge color and clarity of fluids. An amber fluid color indicates proper distillation; a brown-to-black color signals the process has been disrupted and requires corrective action.
- Refineries: Sight flow indicators are used to monitor the draining of water from the bottom of storage tanks. The visual presence of oil in the indicator is a signal that the water is completely drained.
Manufacturing
VISI-FLO® sight flow indicators are used in a variety of manufacturing applications, including, for example, to monitor:
- The draining of hydraulic oil from nitrogen charged accumulators in die casting machine manufacturing facilities.
- Proper coolant flow, which is so vital to the operation of welding machines.
- Efficient filtration of process fluids.
OEM Markets
VISI-FLO® sight flow indicators are used in an array of OEM applications, including, for example:
- Compressor manufacturers install them on their products so end users can monitor the flow of water to compressor heads while in operation.
- Degreasing and defluxing equipment manufacturers use them to monitor recirculating solvent in cleaning operations and, thus, determine efficiency of the distillation/recovery process.
- Evaporators and filtration system manufacturers use them to monitor color and clarity of fluids in outlet lines and to confirm proper intake of fluids on inlet lines.
- Other potential uses:
- As a back-up to electronic equipment; seeing is believing.
- On boiler feed lines
- With steam traps to know when a clog is developing
- In a blending operation to see color and clarity
- On cooling tower lines
- In distillation processes
- On paper machine condensate lines
- On water cooled air compressors
- At the bottom of a vessel to see if it is empty
- On lubricating lines of machine bearings
- On aircraft refueling trucks
- In solvent recovery systems
- On desalination equipment
- Potentially, anywhere that fluids are used, VISI-FLO® can be used!
Parts Breakdown
| Key | Description | Series | 1/4", 3/8" & 1/2" | 3/4" & 1" | 1 1/4", 1 1/2" & 2" |
| 1 | Retaining Bolt | 1400 1500 | H40190M H30497M | H40191M H30498M | H40191M H30498M |
| 2 | Washer | 1400 & 1500 | H40193M | H40194M | H40194M |
| 3 | Nameplate | 1400 & 1500 | H30756M | H30757M | H30758M |
| 4 | Cap, Plated Steel | 1400 1500 | H2888M H30448M | H2889M H30449M | H2890M H30450M |
| 5 | Gasket* | 1400 & 1500 | H3870M | H3871M | H3873M |
| 6 | Glass* | 1400 1500 | H5997M H5998M | H6001M H6002M | H10152M H10153M |
| 7 | Seal* | See Repair Kits | |||
| 8 | Retaining Bridge (2 Required Per Unit) | 1400 & 1500 | H5996M | H6000M | H6004M |
| 9 | Indicator | ||||
| Propeller-Delrin | 1400 | H40153M | H40152M | H40141M | |
| Propeller-Ryton | 1500 | H2910M | H2911M | H2912M | |
| Propeller-PTFE | 1400 & 1500 | H40171M | H40172M | H40173M | |
| Flapper-Delrin | 1400 | H40150M | H40149M | H40148M | |
| Flapper-Ryton | 1500 | H2944M | H2947M | H2948M | |
| Flapper-PTFE | 1400 & 1500 | H40196M | H40197M | H40198M | |
| 10 | Shaft | 1400 & 1500 | H5999M | H6003M | H6011M |
| 11 | Seal* | See Repair Kits | |||
| 12 | Spacer, PTFE* | 1400 & 1500 | H31752M | H31753M | H31636M |
| 13 | Body | ||||
| 14 | Drip Tube | 1400 & 1500 | H30357RS | H30359RP | H30354RP |
| 15 | Deflector (Propeller Units Only) | 1400 & 1500 | H5012M | H5018M | H5020M |
| Key | Description | Series | 3" & 4" | 6"-12" |
| 1 | Retaining Bolt | 1400 & 1500 | H40192M | H40109M |
| 2 | Washer | 1400 & 1500 | H40195M | H40194M |
| 3 | Nameplate | 1400 & 1500 | C20190M | C20191M |
| 4 | Cap, Plated Steel | 1400 & 1500 | C20136M | C30012RS |
| 5 | Gasket* | 1400 & 1500 | H3874M | H40108M |
| 6 | Glass* | 1400 1500 | C00665M C00667M | H40107M H30368M |
| 7 | Seal* | See Repair Kits | ||
| 8 | Button, PTFE | 1400 & 1500 | H40157P | H40117RP |
| 9 | Indicator | |||
| Propeller-Delrin | 1400 | H40154M | NA | |
| Propeller-Ryton | 1500 | H40158P | NA | |
| Propeller-PTFE | 1400 & 1500 | H40174M | NA | |
| Flapper-Delrin | 1400 | H40148M | NA | |
| Flapper-Ryton | 1500 | H2948M | NA | |
| Flapper-PTFE | 1400 & 1500 | H40198M | NA | |
| 10 | Shaft | 1400 & 1500 | H40155M | H40116RE |
| 11 | Lockwasher, SST | 1400 & 1500 | H5162M | |
| 12 | Retaining Screw/Bolt | 1400 & 1500 | H40155M | H40144RP |
| 13 | Body | |||
| 14 | Drip Tube | |||
| 15 | Indicator Support Arm | 1400 & 1500 | C30025EW | H40114RS |
