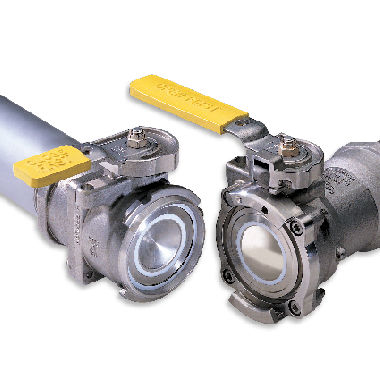

Epsilon™ Dry Disconnect Couplings
Featuring an innovative double ball-valve system, Epsilon™ Dry Disconnect Couplings deliver the lowest product loss in the industry. A tactical balance of an unrestricted flow path and double shutoff reliability makes Epsilon™ the safest and most efficient coupling system in the world.
Features & Benefits
- Lowest fluid loss, driven by the innovative unique double ball-valve system, ensures the lowest product loss in the industry.
- Unparalleled safety with multiple interlocks that eliminate unintentional disconnects and chemical releases that could threaten worker safety and the environment.
- Full flow with unrestricted flow path. No turbulence!
- Optimal defense against cross-contamination with optional keyed couplings that mechanically lock out and isolate transfer lines.
- Engineered for easy operation and maintenance with no special tools needed for seal replacements.
- 316 Stainless or Hastelloy® Construction for critical, aggressive, corrosive fluids.
- 1", 2" and 3" sizes
- Pressures up to 435 psi (30 bar)

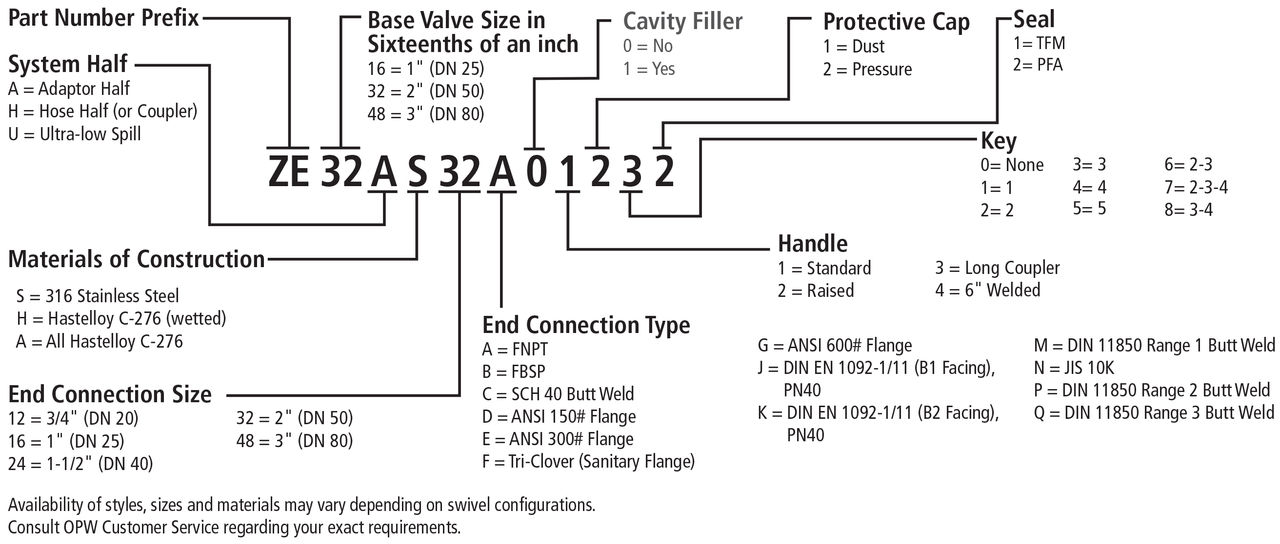

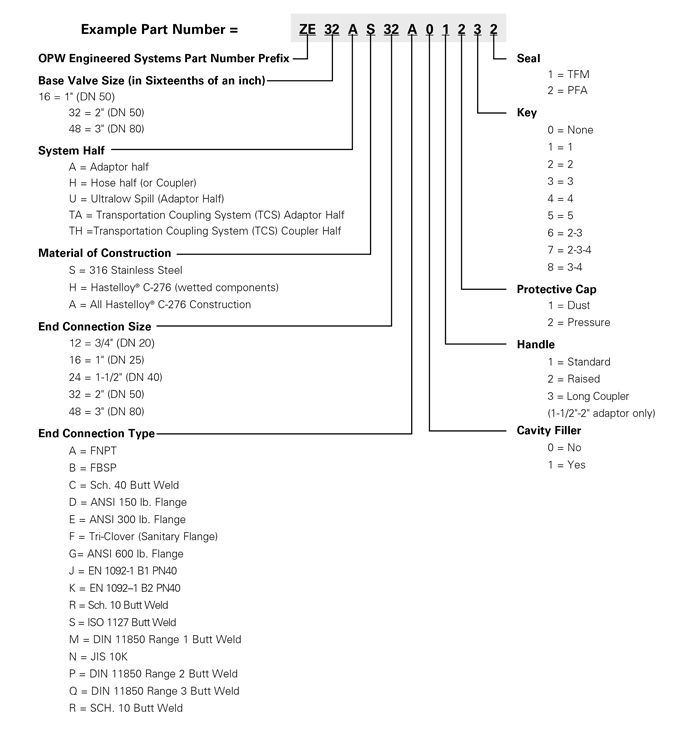

Order Guide

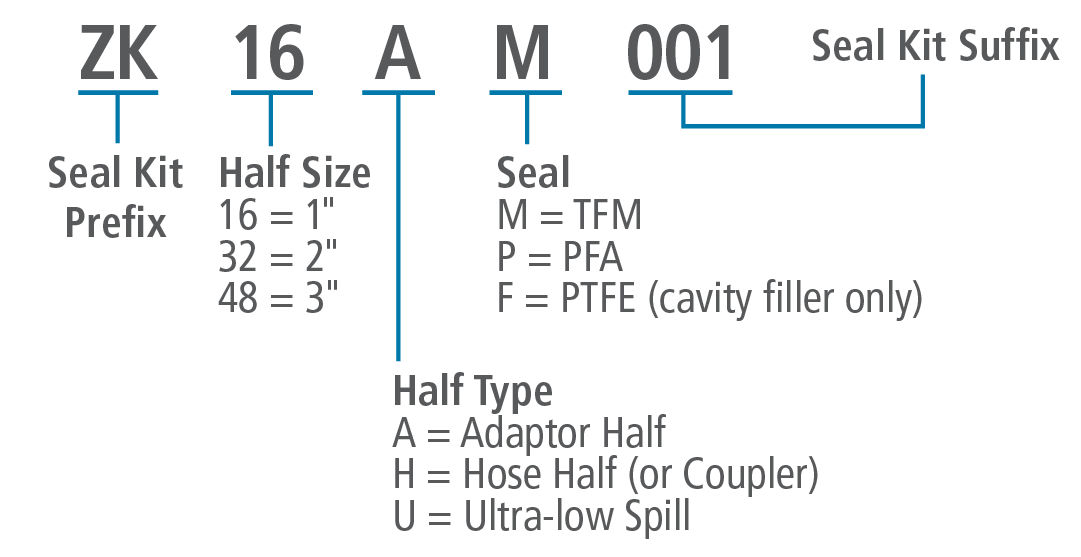

Seal Kit Order Guide
.png.thumb.1280.1280.png.rendition.src.1768906707074.png)
Technical
Click on the title below to view the technical information.

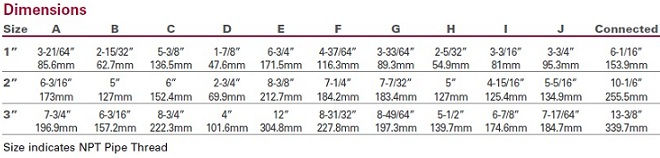

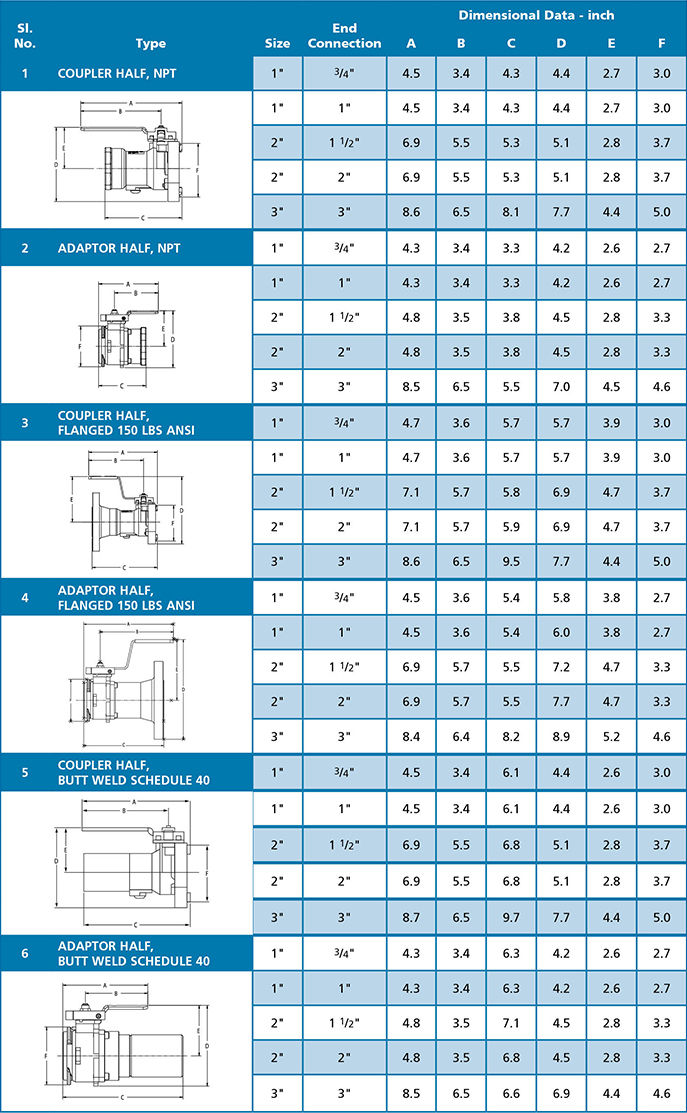

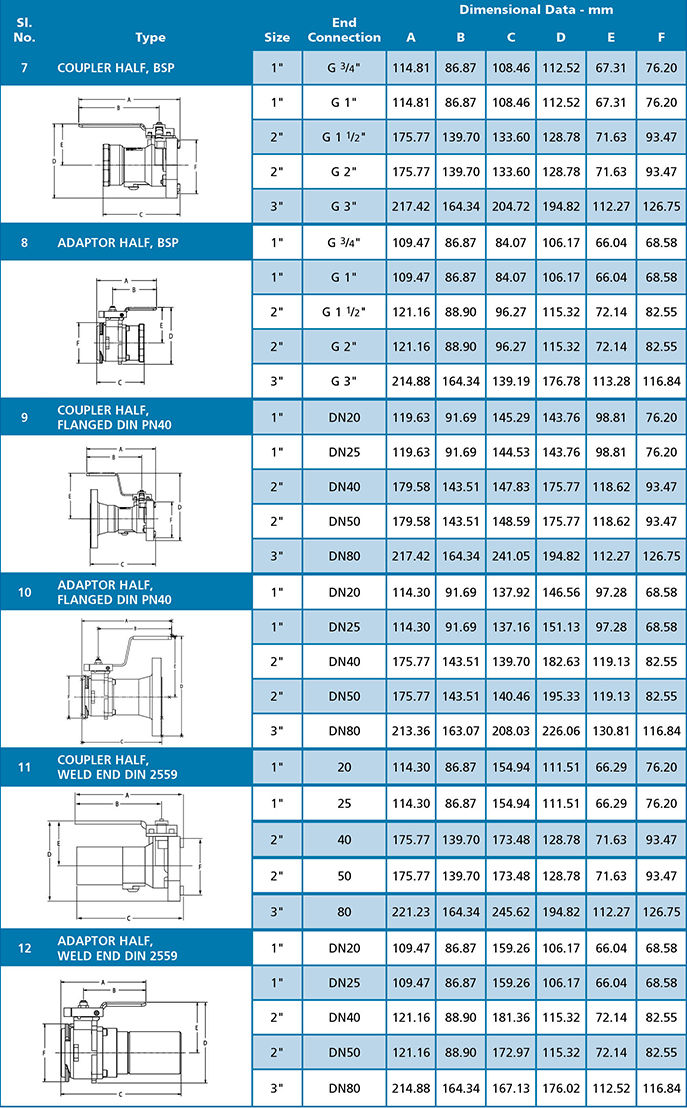

Dimensions

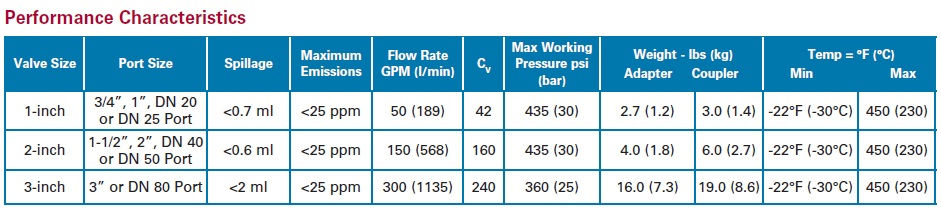

Performance Characteristics

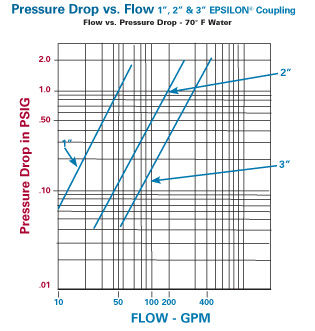

Pressure Drop vs. Flow Chart
Order Guide
Options
- Ultra Low Spill Face Seal
- This seal reduces the amount of spillage at disconnect to .2 cc. This seal is not pressure assisted and should only be used for applications lower than 100 psi.
- Cavity Filled
- Designed to reduce the possibility of contamination by entrapment of process fluid in the void normally found behind the ball and the valve body. Ideal for applications where cross-contamination and cleanliness is a concern. Back side of the valve balls are bored for efficient cleaning.
- Keyed Couplings
- For extremely critical operations, Epsilon offers the unique keyed interface which locks out and isolates transfer lines, preventing cross-contamination.

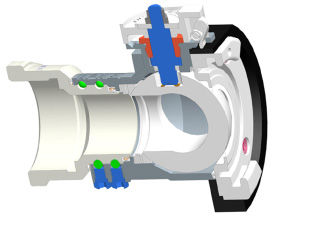

Dual Ball Race (Optional)
- Radial swivel seal
- Replaces dynamic face seal
- Lower leak rate
- Lower seal mortality rate caused by over-compressing seal to install bearings
- Dual ball races with hardened stainless bearings
- Replaces PTFE sleeve bearing that may become overloaded and allow greater axial misalignment causing the dynamic face seal to leak
- Provides additional support for applications with long hose drops or high load requirements
- Spring energized dust seal

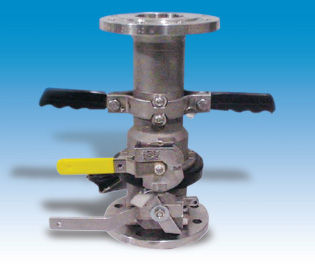

- Transportation Coupling System (TCS)
- Specially designed for railcar, truck, isotainer or tote equipment used in transporting chemicals safely. Contact us for more information.
Applications
The following is a listing of some of the applications/products that have successfully used Epsilon®.
| Chemical | Application |
| Acids | |
| ACN, BD, Latex | |
| ACN, LPG | |
| Acrylamid Polymers, Flocculants | |
| Acrylates, Polymers, Solvents | |
| Acrylic acid, aliph. Amines, Dispersions, Nitrobenzene, Benzene, C4-Components, flammable Solvents, Steam, Acrylmonomers, Diphyl, Oleum, HBr, Chloroformic acid (Chlorameisensre.) | |
| Adhesives | In Plant |
| aliphat. Amines | |
| Allylalcohol | |
| Ammonia water | |
| Butadiene | |
| Biodiesel | In Plant |
| Butyrolactone, THF, Butanediole, BD, Methanol | |
| EO, PO | |
| Ethylene Oxide (EO) | Railcar |
| Fine Chemicals | |
| Fine Chemicals, Syltherm (Heat transfer Oil) | |
| Flavors, Fragrances | |
| Glues, Adhesives | |
| Hydrofluoric Acid | |
| Isocyanates, Xelene, n-Butylacetate | |
| Latex | |
| Liquid Ammonia | |
| liquid Ammonia, Methylamines, ACN, EO | |
| liquid Cristals | |
| Methanol | Offshore |
| Paints, Dispersions, Isophtaloylchloride | |
| Paints, Resins, Glue | |
| Pharmaceutical Chemicals, Dichloromethane, Toluene, Solvents | |
| Pharmaceuticals | |
| Pharmaceuticals, Ammonia (23%), pharmaceutical Slurries | |
| Pharmaceuticals, Sylterm | |
| Pharmaceuticals, Sylterm | |
| Phenol, ACN, Acrylic acid, Acrylacetate, Dispersions, NaOH, H2O2 | |
| Photographic Chemicals | |
| Process Development | |
| R134A, (Fluorinated Hydrocarbons) | |
| Refrigerant / Blowing Agent | Tank Cars/Trucks |
| Rheovis Tank Truck | |
| Silane, Siloxane, Chloro-Silane, Solvents, Waste Treatment | |
| Siloxane | |
| Solvents | |
| Solvents, Paint Resins | |
| Terypidal Tars | |
| THF | |
| Transformer Oil, Acrylates, Benzene, Toluene, Xylene, Aliphatic Solvents | |
| Trichloroacetic acid | |
| Truck/Transport |
Photos
Videos
Epsilon Low-Spill Coupling System
Epsilon is a low spill coupling, based on a double ball valve system integrating a sophisticated safety design. Beyond the common advantages of a ball valve design, Epsilon provides for product flow through an unrestricted flow path and double shut-off reliability in the coupling connection.
OPW Engineered Systems Epsilon™ Adaptor and Coupler Maintenance and Repair Overview
Detailed step-by-step instructions for the complete disassembly and reassembly of the Epsilon™ adaptor and coupler. Epsilon comes in stainless steel or Hastelloy® and because of its double ball valve design, Epsilon is a sophisticated low spill coupling system. For the best in-plant chemical transfers, select OPW's Epsilon.
Chapter Guide:
- 1:02 - Recommended Tools
- 2:06 - Adaptor Maintenance
- 6:50 - Adaptor Reassembly
- 11:30 - Coupler Maintenance
- 15:31 - Coupler Reassembly
Downloads
-
Drylok Dry Disconnect System Manual
-
Epsilon Dry Disconnect Coupler Data Sheet
-
Dry & Quick Disconnect Fittings Catalog
-
Sanitizers, Cleaning, Chemicals Soaps Flyer
-
Epsilon Coupler Installation and Operation Manual
