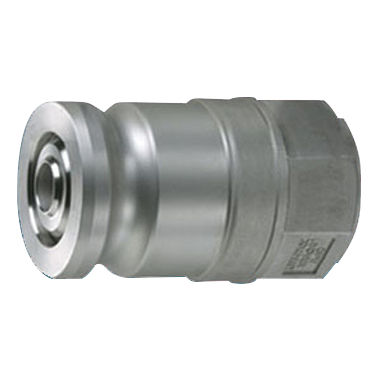

1600AN Series Kamvalok Adaptor
The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok® Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and a tight seal.
Features
- Available in 1 ½”, 2” & 3” Sizes
- Heavy-Duty Construction – Available in aluminum, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel)
- Female Threads – Can be fitted to either a male pipe end or to a hose fitting
- Spring-Loaded Poppet Design – Assures fast closing and a tight seal
- Wide Range of Seals Available – Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®
Benefits
- Single Piece Design – Eliminates a possible leak path
- Spill Prevention – Poppet-actuated design can only be opened with a Kamvalok® coupling; designed to provide a tight seal when closed
- Reliability of Operation – The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long-life operation
- Optimum Flow Rate – Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence

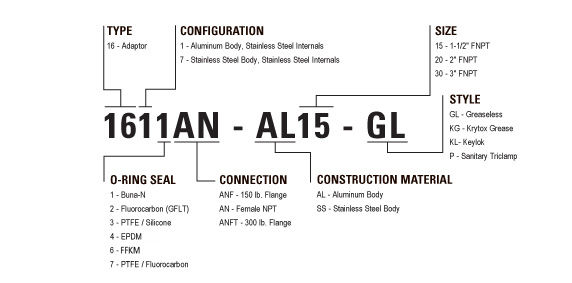

Order Guides
Technical
Click on the title below to view the technical information.

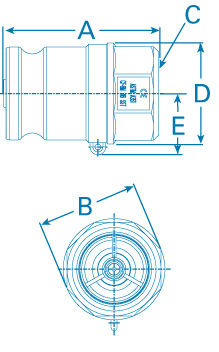

Dimensions
| 1 1/2" | 2" | 3" |
| A | 4-3/4" | 4-15/16" |
| B | 2-1/2" | 3-1/4" |
| C | 1-1/2" | 2" |
| D | 2-21/32" | 3-1/4" |
Repair Kits
Coming soon
Parts Breakdown
Coming soon

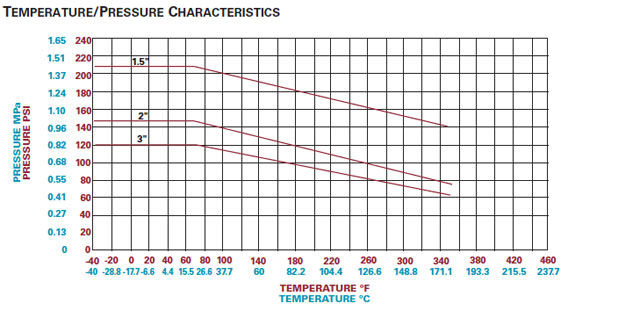

Temperature/Pressure Chart
Flow Chart
Coming soon
Temperature Chart
Coming soon

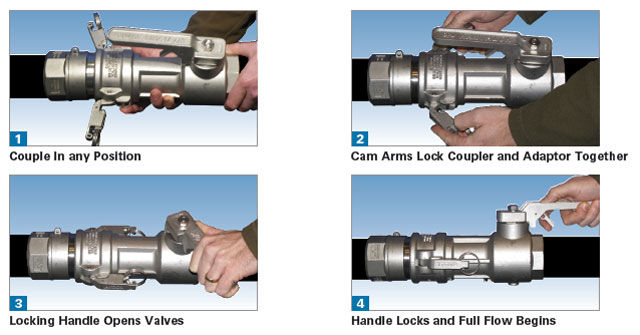

Kamvalok Operation
Applications
Click on the title below to view the application information.

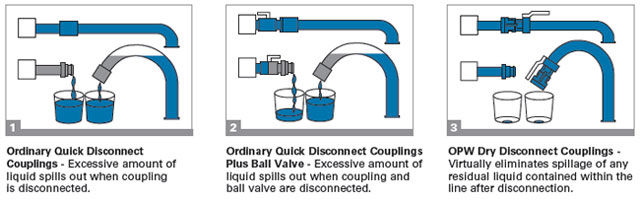

Why Use Kamvaloks?

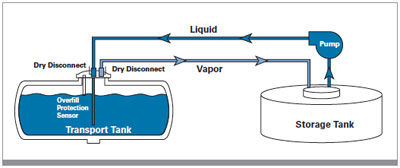

Kamvalok Applications
Photos
Videos
Downloads
-
Drylok Dry Disconnect System Manual
-
Sanitizers, Cleaning, Chemicals Soaps Flyer
-
Dry & Quick Disconnect Fittings Catalog
Approvals
| AAR Number | Description |
| E222116 | 1600AN Series Kamvalok Adpater – Threaded |
| E222117 | 1600ANF Series Kamvalok Adapter – Flanged |
| E222119 | 634B/733DCL Series Kamlok/Autolok Dust Caps |
| CRN Number | Region | Description |
| OA4911.52 | Alberta | 1.5”, 2”, 3” Aluminum and SST Kamvalok |
| OA4911.5R1 | Ontario | 1.5”, 2”, 3” Aluminum and SST Kamvalok |
