Features

• Vapor Hose Connection – 2” Kamvalok® Dry Disconnect
• No trailer modifications required – Easy attachment to existing MC307, DOT407, MC312, and DOT412 trailers

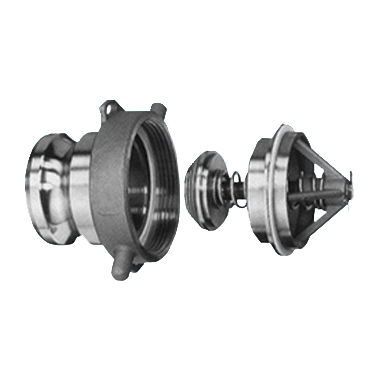

• 3” straight thread mounting with 2” Kamvalok® dry disconnect cam and groove connection makes the ideal 3” x 2” adaptor for QRB valves
• Can replace existing Clean-Out Caps for Closed Loop SystemVapor Hose Connection – 2” Kamvalok® Dry Disconnect
• No trailer modifications required – Easy attachment to existing MC307, DOT407, MC312, and DOT412 trailers
• 3” straight thread mounting with 2” Kamvalok® dry disconnect cam and groove connection makes the ideal 3” x 2” adaptor for QRB valves
• Can replace existing Clean-Out Caps for Closed Loop System

Benefits

• Closed-Loop Protection – Helps protect people and the environment by providing a vapor and liquid tight seal during the connection/disconnection process specifically designed to contain VOC (Volatile Organic Compounds) products that have high vapor pressure that evaporates quickly. Contains fugitive emissions and transfers VOCs without vapor loss.
• Roll-Over Safety – Low profile design keeps the fitting below roll-over plane to minimize damage in the event of a roll-over. Meets IMO profile dimensions.
• Easy Emergency Evacuation – Provides a dry disconnect connection for emergency evacuation of hazardous liquids in case of roll-over
• Quick and Easy Cleaning – Designed for easy disassembly for routine cleaning

Technical
