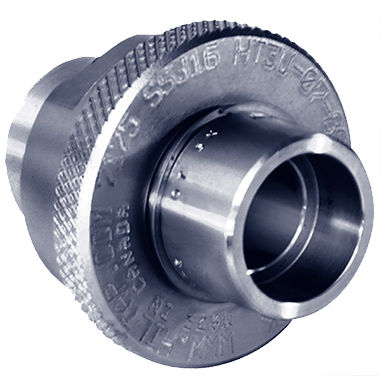

3U SERIES - Medium Pressure and Temperate Quality Unions
The 3U Series is an all purpose light weight quality union designed for leak proof operation as it cycles through a wide range of temperatures. The design offers a non-restrictive flow with no variation in pipe diameter in most sizes. The reusable metal-to-metal sealing components further enhance the seal as temperature and pressure changes are encountered. The safety ring ensures safe venting of residual pressure.
Features & Benefits
- Contains fugitive emissions
- Designed to replace conventional medium pressure unions/couplings
- Easier installation and maintenance
- Fully interchangeable with each other
- Low profile/light weight
- Reduced chance of galling
- Repeatedly reusable metal-to-metal wedge seal
- Unique automatic safety feature vents residual pressure during uncoupling should residual pressure remain
- Only light torque required when tightening to rated pressure
- Available in 1/4” to 2” sizes
- Materials: 316 Stainless Steel and Carbon Steel
- Compact and available in any combination of threaded, butt weld or socket weld ends

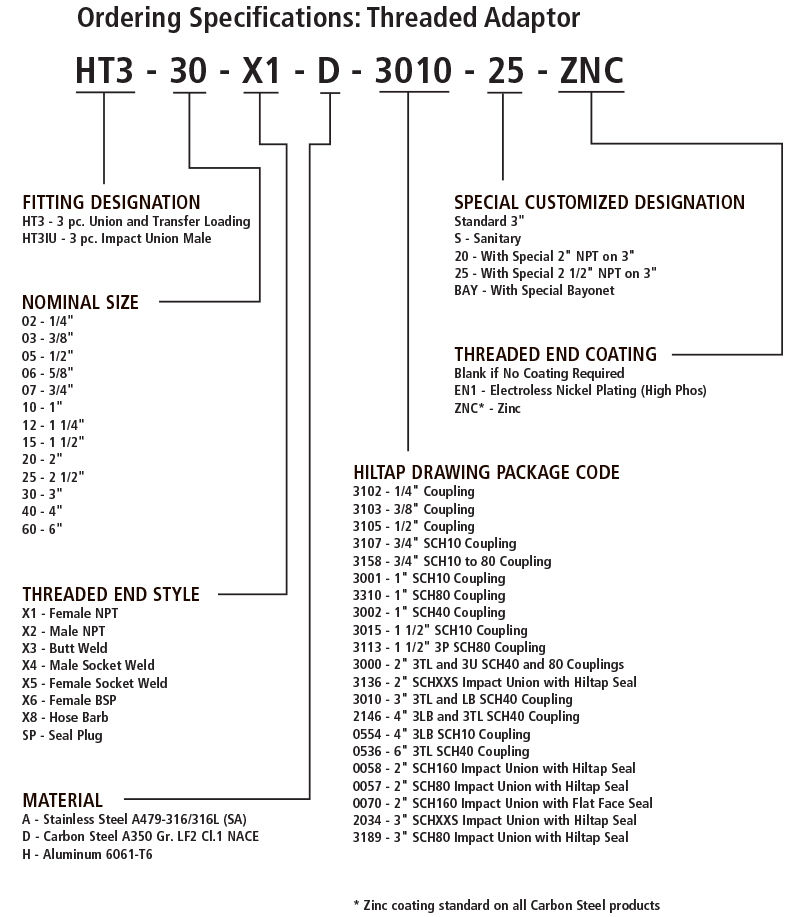

Order Guide
Technical
Coming soon.
Applications
Applications include: Next to sensitive electronic equipment e.g. most flow meters, modular skid “tie-ins”, high pressure gas/oil, meter/production flow production, gas distribution “tie-ins”, high axial load stresses, sour gas, unconventionally high pressures and high erosion/corrosion applications.
Photos
-
HT-3U Flyer
