400 SERIES Pipe Connecting: Safety Quick Couplings
The Flange Replacement Coupling!
The 415/425/490 RapidLOK™ Series Connector is an all purpose lightweight quick coupling designed for leakproof operation at a wide range of temperatures. The metal-to-metal seal further enhances the seal as temperature changes are encountered. The safety ring ensures safe venting of any residual pressure.
Features & Benefits
- The RapidLOKR 415/425/490 series couplings can perform equal to the respective pipe schedules
- Repeatedly reusable metal-to-metal seal with an optional secondary enviro o-ring seal
- No bolts, or hub clamps for faster hook-ups
- Unique automatic safety feature vents residual pressure
- No special heat treatment of seal rings required
- Only light torque required when tightening to rated pressure
- Compact and available in any combination, of threaded, butt weld or male socket weld ends
- Designed and tested to ASME B31.1
- Available in 3/4” - 2” sizes
- Materials: 316 Stainless Steel and Carbon Steel

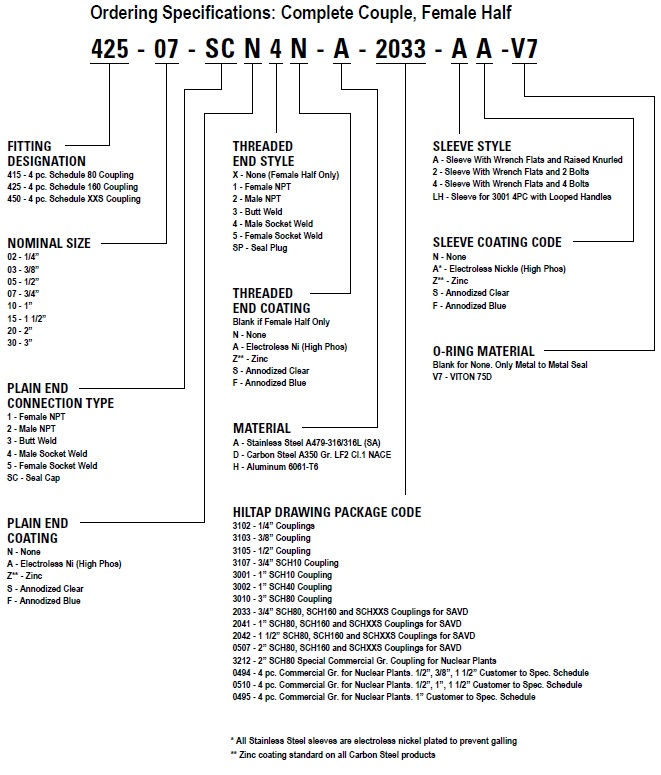

Order Guide
Technical
Coming soon.
Applications
Coming soon.
Photos

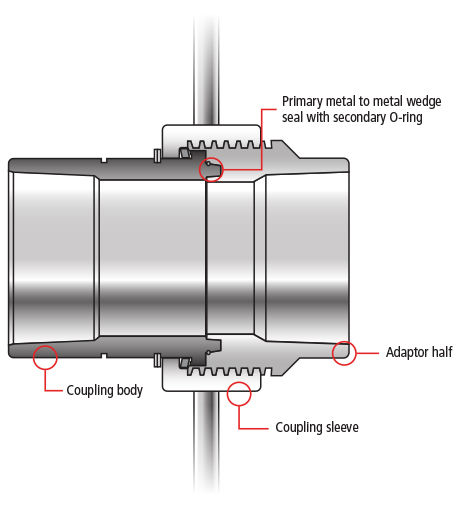

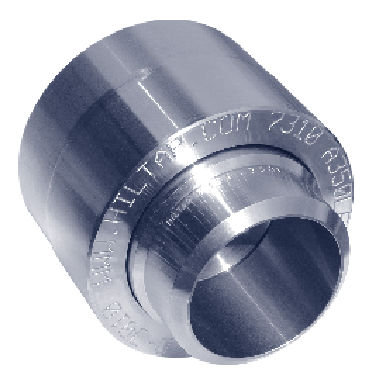

RapidLOK™ Components
RapidLOK Series Connector is an all-purpose, lightweight quick coupling designed for leakproof operation at a wide range of temperatures. The metal-to-metal seal further enhances the seal as temperature changes are encountered. The safety ring ensures safe venting of any residual pressure.
-
HT-490download
Features & Benefits
- The RapidLOKR 415/425/490 series couplings can perform equal to the respective pipe schedules
- Repeatedly reusable metal-to-metal seal with an optional secondary enviro o-ring seal
- No bolts, or hub clamps for faster hook-ups
- Unique automatic safety feature vents residual pressure
- No special heat treatment of seal rings required
- Only light torque required when tightening to rated pressure
- Compact and available in any combination, of threaded, butt weld or male socket weld ends
- Designed and tested to ASME B31.1
- Available in 3/4” - 2” sizes
- Materials: 316 Stainless Steel and Carbon Steel
Order Guide
Technical
Coming soon.
Applications
Coming soon.
Photos
RapidLOK™ Components
RapidLOK Series Connector is an all-purpose, lightweight quick coupling designed for leakproof operation at a wide range of temperatures. The metal-to-metal seal further enhances the seal as temperature changes are encountered. The safety ring ensures safe venting of any residual pressure.
-
HT-490download
