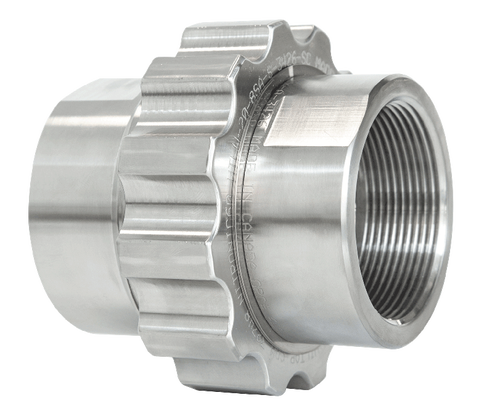

Stop-Lok™ Multi-Application Coupler

For decades, union and ground-joint fittings have been used to quickly connect pipe and hose, which allows facilities to load and unload product more efficiently. OPW’s Stop-Lok™ Multi-Application Coupler builds on the compact structure and efficient functionality of traditional fittings and adds a few learned tricks.

Available in 3/4-, 1-, 1-1/2-, 2- and 3-inch sizes, Stop-Lok™ couplers are constructed of 316 stainless steel and have an operational temperature range of -20ºF to 400ºF (-29ºC to 204ºC).

Features

  • Dual protected O-ring seals provide leak protection and help prevent damage during connection
  • Stop-Lok™ tool-free, hand-tight connection
  • Engineered for high heat and pressure up to 400 PSI

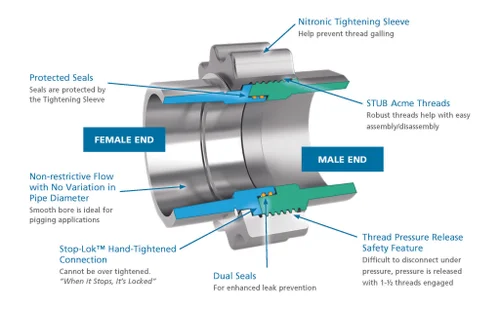

stop-lok_callouts

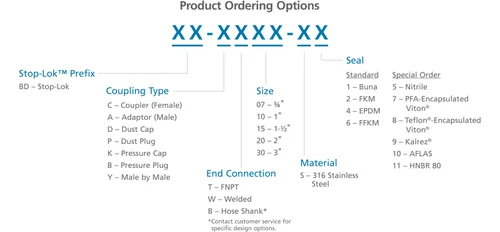

Ordering Guide

stop-lok_productorderingchart

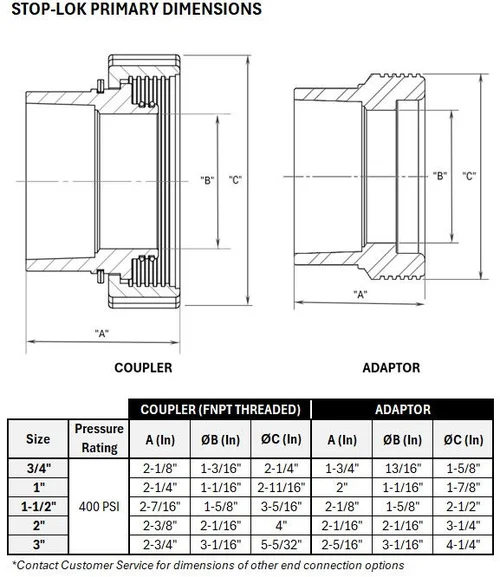

Dimensions

stop-lok-dimension-matrix
